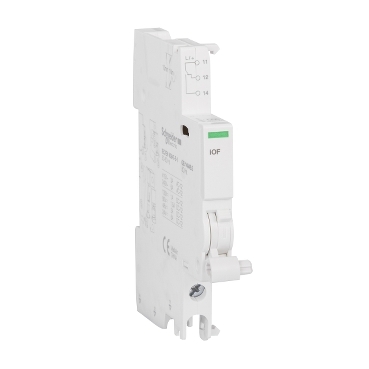

Schneider Breaker Acti9 [A9A26924]
Electrical / Breaker / MCB Accessories
This Acti9 iOF electrical auxiliary is an open/close and fault indicating contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID double terminals. The 2 contacts 1 NO + 1NC can report the signalling information of the associated device to the Acti9 Smartlink. It reports also the electrical fault, actuation of the tripping auxiliary, Open or Closed position of the associated device informations to a programmable logic controller. It is compatible with downstream comb busbar. Remote indication of position and tripping upon a fault of the associated device. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The Ui rated insulation voltage is 400VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. Product weight is 32g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -35°C to +70°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 standard.
Specifications
Mainrange of product | Acti9 |
---|---|
product or component type | OC contact |
device short name | IOF |
signal contacts composition | 1 C/O |
[In] rated current | AC-12 6 A at 240 V, AC 50/60 Hz AC-12 3 A at 415 V, AC 50/60 Hz DC-12 2 A at 48 V, DC DC-12 1.5 A at 60 V, DC DC-12 1 A at 130 V, DC DC-12 6 A at 24 V, DC |
9 mm pitches | 1 |
[Ui] rated insulation voltage | 500 V |
---|---|
[Uimp] rated impulse withstand voltage | 4 kV |
mounting mode | Clip-on |
mounting support | DIN rail |
comb busbar and distribution block compatibility | Top: YES |
Height | 86 mm |
width | 9 mm |
Depth | 73 mm |
Net weight | 32 g |
colour | White |
connections - terminals | Screw clamp terminal (bottom) 1 cable(s) 1…4 mm² - rigid Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - flexible Screw clamp terminal (bottom) 2 cable(s) 2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
wire stripping length | 10 mm |
tightening torque | 1 N.m |
Standards | EN/IEC 60947-5-1 |
---|---|
IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
pollution degree | 3 conforming to EN/IEC 60947-5-1 |
tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
Ambient air temperature for operation | -35…70 °C |
Ambient air temperature for storage | -40…85 °C |
Unit Type of Package 1 | PCE |
---|---|
Number of Units in Package 1 | 1 |
Package 1 Height | 7.8 cm |
Package 1 Width | 2 cm |
Package 1 Length | 9.2 cm |
Package 1 Weight | 43 g |
Unit Type of Package 2 | BB1 |
Number of Units in Package 2 | 12 |
Package 2 Height | 8.5 cm |
Package 2 Width | 10 cm |
Package 2 Length | 27.2 cm |
Package 2 Weight | 603 g |
Unit Type of Package 3 | S03 |
Number of Units in Package 3 | 120 |
Package 3 Height | 30 cm |
Package 3 Width | 30 cm |
Package 3 Length | 40 cm |
Package 3 Weight | 6.669 kg |
