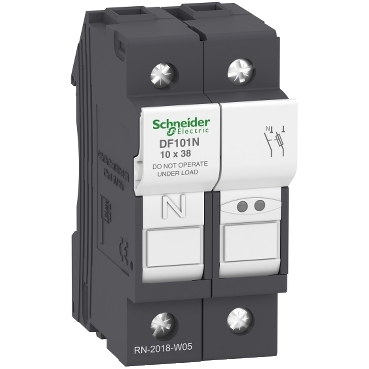

Schnedier TeSys DF Fuse carrier TeSys DF, 1P+N 32A, fuse size 10 x 38 mm [DF101N]
DF101N TeSys DF modular fuse carrier, 2 poles (1P+N) , for protection of control circuits up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 120kA@400V. It provides a Neutral pole fitted with a locked tubular link. Compact (35mm width), it can be used in modular panels, clipping on 35mm DIN rail, connection by screw clamp terminals, padlockable without accessory. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (fuse carrier assembly kits, clip-in markers) are available (to be ordered separately). Sold in lots of 6 units. Multi standards certified (IEC, UL recognized, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
Specifications
Main
| Range | TeSys |
|---|---|
| Product name | TeSys DF |
| Product or component type | Fuse carrier |
| Device short name | DF10 |
| Device composition | Tubular link for locked in Neutral pole |
| Product compatibility | DF2CA fuse cartridge DF2CN fuse cartridge |
| Poles description | 1P + N |
| Fuse size | 10 x 38 mm |
| Fuse type | , aM , gG |
| Control type | Toggle padlockable |
| Utilisation category | AC-20B conforming to IEC 60947-3 DC-20B conforming to IEC 60947-3 |
| [Ue] rated operational voltage | 690 V AC 690 V DC |
| [Ie] rated operational current | 32 A at 400 V AC |
| [Ith] conventional free air thermal current | 32 A 20 °C |
| [Ui] rated insulation voltage | 690 V AC |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Overvoltage category | III |
| Short-circuit withstand | 120 kA 400 V conforming to IEC 60947-3 120 kA 500 V conforming to IEC 60947-3 |
| Power dissipation in W | 3 W maximum power dissipation by fuse |
Complementary
| Standards | EN/IEC 60947-3 EN/IEC 60269-2 UL 4248-1 CSA C22.2 No 4248-1 EN 45545-2: R22 HL2 |
|---|---|
| Product certifications | IEC UL recognized CSA CCC EAC DNV-GL |
| Mounting support | 35 mm symmetrical DIN rail |
| Mounting position | Vertical (tolerance: +/- 23°) |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1…16 mm²rigid Screw clamp terminals 2 cable(s) 1…6 mm²rigid Screw clamp terminals 1 cable(s) 1…16 mm²flexible with or without Screw clamp terminals 2 cable(s) 1…6 mm²flexible with or without |
| Tightening torque | 2.2 N.m - with screwdriver PZ2 2.2 N.m - with screwdriver flat Ø 5.5 mm |
| Height | 79.5 mm |
| Width | 35 mm |
| Depth | 61 mm |
| Net weight | 0.087 kg |
| Quantity per set | Set of 6 |
Environment
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -40…70 °C with derating above 20°C |
| Operating altitude | 0...2000 m |
| IP degree of protection | IP20 |
| Pollution degree | 3 |
| Fire resistance | 960 °C conforming to IEC 60695-2-1 |
| Compatibility code | DF10 |
Packing Units
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.5 cm |
| Package 1 Width | 6.2 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 92 g |
| Unit Type of Package 2 | Gyári csomagolás |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 6.8 cm |
| Package 2 Width | 8.5 cm |
| Package 2 Length | 22.2 cm |
| Package 2 Weight | 584 g |
| Unit Type of Package 3 | Doboz |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 9.885 kg |
