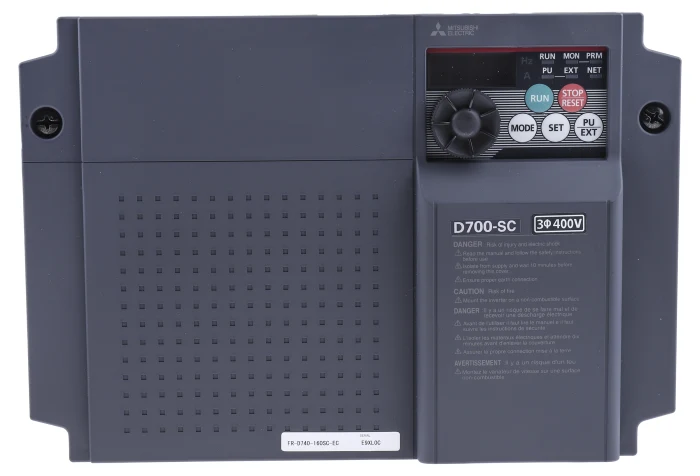

Mitsubishi VFD D700 [FR-D740-160SC-EC]

Industrial Automation / VFD / VFD

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Mitsubishi, D700, FR-D740-160SC-EC, Inverter; Rated Power: 7,5kW; 3x380-480V; Rated Current: 16A@50°C; IP20_ [FR-D740-160SC-EC]

Series	FR-D700 SERIES
Type	FR-D700 COMPACT INVERTER
Minimum Rated Voltage (V)	380
Min. Permissible Voltage (V)	325
Maximum Rated Voltage (V)	480
Max. Permissible Voltage (V)	528
Current Type	AC
Phases	3
Rated Output Current ND (A)	16
Rated Motor Capacity ND (kW)	7,5
Control Method	MAGNETIC FLUX VECTOR CONTROL, SOFT-PWM/HIGH FREQUENCY PWM , V/F CONTROL
Motor Type	INDUCTION MOTOR
Brake Chopper ED (%)	30
Integrated EMC Filter	NO
Safe Torque Off (STO)	YES
Regenerative (4Q)	NO
Display	BUILT-IN
PLC Function	NO
Integrated Analogue Outputs	1
RS-485	1
Power Loss ND (W)	280
Frequency Range (Hz)	0,2–400
Integrated DC Choke	NO
Display Type	4 DIGITS LED
Integrated Digital Inputs	5
Digital Outputs (Transistor)	1
Digital Outputs (Relay)	1
Integrated Analogue Inputs	2
IO Type of Terminal Block	SPRING CLAMP
Expandable	NO
USB	NO
Ethernet Port	NO
Built-In Network	MODBUS-RTU
Leakage Current (mA)	1
Standby Power Consumption (W)	13,5-22,5
Protection Class	IP20
