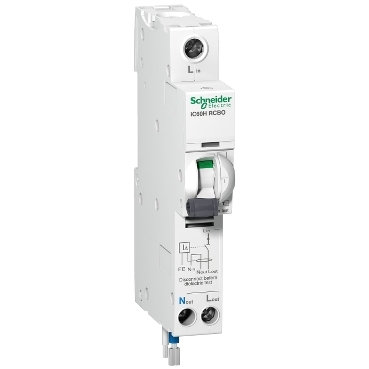

Schneider Breaker Acti9 iC60_ iC60H - earth leakage circuit breaker - 1P + N - C curve - 10 A - 30 mA - 240 V_ [A9D14810]
Electrical / Breaker / MCB
This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 10A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-2-2 and IEC 61009-1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 2. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 110mm x (D) 77.5mm. The weight is 205g. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.
Specifications
Main
| circuit breaker application | Distribution |
|---|---|
| range | Acti9 |
| product name | Acti9 iC60 RCBO |
| product or component type | Residual current breaker with overcurrent protection (RCBO) |
| device short name | IC60H RCBO |
| poles description | 1P + N |
| [In] rated current | 10 A at 50 °C |
| earthing system | TN |
| curve code | C |
| earth-leakage sensitivity | 30 mA |
| breaking capacity | 10000 A Icn at 240 V AC 50/60 Hz |
Complementary
| neutral position | Left |
|---|---|
| number of protected poles | 1 |
| device location in system | Outgoer |
| network frequency | 50 Hz |
| network type | AC |
| trip unit technology | Thermal-magnetic |
| [Ue] rated operational voltage | 240 V AC 50/60 Hz |
| residual current tripping technology | Voltage dependent |
| earth-leakage protection time delay | Instantaneous |
| earth-leakage protection class | Type A |
| [Icw] rated short-time withstand current | Icw: 250 A during 8/20 µs impulse withstand |
| [Ics] rated service breaking capacity | 7500 A at 240 V AC 50/60 Hz |
| limitation class | 3 |
| [Ui] rated insulation voltage | 400 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 4 kV |
| suitability for isolation | Yes |
| contact position indicator | Yes |
| control type | Toggle |
| local signalling | ON/OFF indication |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | NO |
| 9 mm pitches | 2 |
| Height | 110 mm |
| width | 18 mm |
| Depth | 77.5 mm |
| Net weight | 205 g |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability | 5000 cycles |
| provision for padlocking | Padlockable with padlock Ø 4 mm |
| locking options description | ON/OFF locking facilities |
| connections - terminals | Screw clamp terminal (top) 1…25 mm² rigid without cable end Screw clamp terminal (top) 1…16 mm² flexible Screw clamp terminal (bottom) 1…16 mm² rigid without cable end Screw clamp terminal (bottom) 1…10 mm² flexible |
| wire stripping length | Power circuit: 13 mm for bottom connection Power circuit: 14 mm for top connection |
| tightening torque | Power circuit: 3.5 N.m top Power circuit: 2 N.m bottom |
| earth-leakage protection | Integrated |
Environment
| Standards | IEC 61009-2-2 IEC 61009-1 |
|---|---|
| IP degree of protection | IP20 |
| tropicalisation | 2 |
| relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -15…60 °C |
| Ambient air temperature for storage | -40…85 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.3 cm |
| Package 1 Width | 14.3 cm |
| Package 1 Length | 2.7 cm |
| Package 1 Weight | 211 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 34 |
| Package 2 Height | 15 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7174 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 1088 |
| Package 3 Height | 70 cm |
| Package 3 Width | 120 cm |
| Package 3 Length | 80 cm |
| Package 3 Weight | 229568 g |
