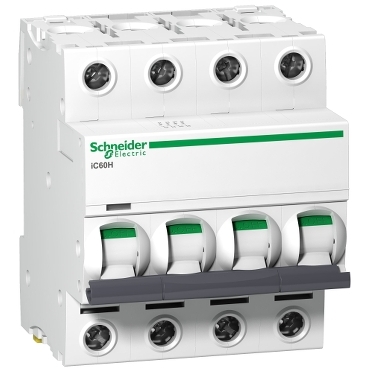

Schneider Breaker Acti9 iC60H 4P 32A C Miniature Circuit breaker

Schneider Breaker Acti9 iC60H 4P 32A C Miniature Circuit breaker

https://www.hsedubai.com/web/image/product.template/108814/image_1920?unique=4b507a9

Electrical / Breaker / MCB

124.00 AED 124.0 AED 124.00 AED

124.00 AED

Not Available For Sale

This combination does not exist.

Acti9 iC60

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Attachments

This Acti9 iC60H is a multistandard low voltage miniature circuit breaker (MCB) with double tunnel terminals. It is a 4P circuit breaker with 4 protected poles, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 70kA at 220VAC to 240VAC conforming to EN/IEC 60947-2 standard and 10000A at 415VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. Its unique VisiTrip indicator reduces intervention time by showing the faulty circuit. Its VisiSafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 500VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 85mm x (D) 78.5mm. The weight is 0.5kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -35°C to 70°C. The storage temperature is -40°C to 85°C.


Specifications

Main

rangeActi9
product nameDisbo iC60
product or component typeMiniature circuit-breaker
device short nameIC60H
poles description4P
number of protected poles4
[In] rated current4 A
network typeAC
trip unit technologyThermal-magnetic
curve codeC
breaking capacity70 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2
70 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2
70 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2
15 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2
10000 A Icn at 415 V AC 50/60 Hz conforming to EN/IEC 60898-1
utilisation categoryCategory A conforming to EN/IEC 60947-2
Complementary
network frequency50/60 Hz
[Ue] rated operational voltage440 V AC 50/60 Hz
magnetic tripping limit8 x In +/- 20 %
[Ics] rated service breaking capacity70 kA 100 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz
70 kA 100 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz
70 kA 100 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz
50 kA 100 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz
7500 A 75 % conforming to EN/IEC 60898-1 - 415 V AC 50/60 Hz
10 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V DC
limitation class3 conforming to EN/IEC 60947-2
[Ui] rated insulation voltage500 V AC 50/60 Hz conforming to EN/IEC 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-2
contact position indicatorYes
control typeToggle
local signallingTrip indicator
mounting modeClip-on
mounting supportRail
9 mm pitches8
Height85 mm
width72 mm
Depth78.5 mm
Net weight0.5 kg
colourWhite
mechanical durability20000 cycles
electrical durability10000 cycles
provision for padlockingPadlockable
connections - terminalsSingle terminal (top or bottom) 1…25 mm² rigid
Single terminal (top or bottom) 1…16 mm² flexible
wire stripping length14 mm for top or bottom connection
tightening torque2 N.m top or bottom
earth-leakage protectionSeparate block
Environment
StandardsEN/IEC 60898-1
EN/IEC 60947-2
IP degree of protectionIP20 conforming to IEC 60529
pollution degree3 conforming to EN/IEC 60947-2
tropicalisation2 conforming to IEC 60068-1
relative humidity95 % at 55 °C
Ambient air temperature for operation-35…70 °C
Ambient air temperature for storage-40…85 °C
Packing Units
Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7.3 cm
Package 1 Width7.1 cm
Package 1 Length9.0 cm
Package 1 Weight432.0 g
Unit Type of Package 2BB1
Number of Units in Package 23
Package 2 Height8.5 cm
Package 2 Width9.5 cm
Package 2 Length21.8 cm
Package 2 Weight1.37 kg
Unit Type of Package 3S03
Number of Units in Package 333
Package 3 Height30.0 cm
Package 3 Width30.0 cm
Package 3 Length40.0 cm
Package 3 Weight15.654 kg
