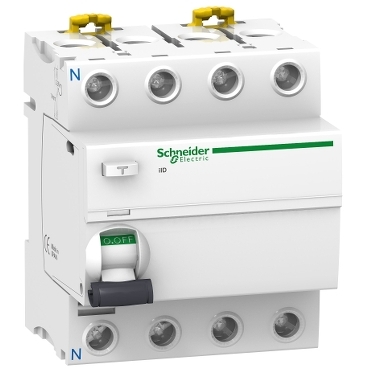

Schneider Breaker Acti9 iC60_ Acti 9 iID - RCCB - 4P - 100A - 100mA - type AC_ [A9R12491]
Electrical / Breaker / MCB
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with 100A In rated current, 100mA earth leakage sensitivity and AC type protection class. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance This product is compliant with EN/IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 380VAC to 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 91mm x (D) 73.5mm. The weight is 0.37kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -5°C to 60°C. The storage temperature is from -40°C to 85°C.
Specifications
Main
| range | Acti9 |
|---|---|
| product name | Acti9 iID |
| product or component type | Residual current circuit breaker (RCCB) |
| device short name | IID |
| poles description | 4P |
| neutral position | Left |
| [In] rated current | 100 A |
| network type | AC |
| earth-leakage sensitivity | 100 mA |
| earth-leakage protection time delay | Instantaneous |
| earth-leakage protection class | Type AC |
Complementary
| device location in system | Outgoer |
|---|---|
| network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| residual current tripping technology | Voltage independent |
| rated breaking and making capacity | Idm 1500 A Im 1500 A |
| rated conditional short-circuit current | 10 kA |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 6 kV |
| contact position indicator | Yes |
| control type | Toggle |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 8 |
| Height | 91 mm |
| width | 72 mm |
| Depth | 73.5 mm |
| Net weight | 0.37 kg |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability | AC-1: 10000 cycles |
| locking options description | Padlocking device |
| connections - terminals | Single terminal top or bottom 1…35 mm² rigid Single terminal top or bottom 1…25 mm² flexible Single terminal top or bottom 1…25 mm² flexible with ferrule |
| wire stripping length | 14 mm for top or bottom connection |
| tightening torque | 3.5 N.m top or bottom |
Environment
| standards | EN/IEC 61008-1 |
|---|---|
| product certifications | ISI EAC |
| IP degree of protection | IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529 |
| pollution degree | 3 |
| electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1 |
| ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -40…85 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 8.3 cm |
| Package 1 Length | 10.0 cm |
| Package 1 Weight | 371.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 27 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 10.216 kg |
