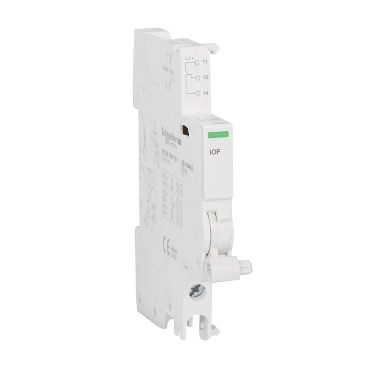

Schneider Breaker Acti 9 - Auxiliary contact iOF/SD+OF - 2OC - AC/DC [A9A26929]
Electrical / Breaker / MCB Accessories
This Acti9 iOF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to iC60, iC40, iCV40, iID, iID40, iDPN Vigi, iSW-NA, iC60 & iID products. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. There is a mechanical state indicator and a test function button on the front face. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. The width in 9mm pitches is 1. The product color is white (RAL9003). The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. Product weight is 32g. The degree of protection is IP20 at terminals and IP40 in enclosure. The operating temperature is -35°C to +70°C. The storage temperature is -40°C to +85°C. This product complies with EN/IEC 60947-5-1 standard.
Specifications
Main
| range of product | Acti9 |
|---|---|
| product or component type | Double OC or fault contact |
| device short name | IOF/SD+OF |
| signal contacts composition | 2 C/O |
| [In] rated current | DC-12 1 A at 130 V, DC DC-12 1.5 A at 60 V, DC DC-12 2 A at 48 V, DC DC-12 6 A at 24 V, DC AC-12 3 A at 415 V, AC 50/60 Hz AC-12 6 A at 240 V, AC 50/60 Hz |
| 9 mm pitches | 1 |
| [Ui] rated insulation voltage | 500 V |
|---|---|
| [Uimp] rated impulse withstand voltage | 4 kV |
| local signalling | Mechanical indicator |
| mounting mode | Fixed |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | NO |
| Height | 90 mm |
| width | 9 mm |
| Depth | 73 mm |
| Net weight | 43 g |
| colour | White |
| connections - terminals | Screw clamp terminal (top and bottom) 2 cable(s) 2.5 mm² - rigid Screw clamp terminal (top and bottom) 2 cable(s) 1.5 mm² - flexible with ferrule Screw clamp terminal (top and bottom) 1 cable(s) 0.5…2.5 mm² - flexible Screw clamp terminal (top and bottom) 1 cable(s) 1…4 mm² - rigid |
| wire stripping length | 10 mm |
| tightening torque | 1 N.m |
| Standards | EN/IEC 60947-5-1 |
|---|---|
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.5 cm |
| Package 1 Width | 2.4 cm |
| Package 1 Length | 9.2 cm |
| Package 1 Weight | 51 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 10 cm |
| Package 2 Length | 27 cm |
| Package 2 Weight | 690 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 120 |
| Package 3 Height | 30 cm |
| Package 3 Width | 30 cm |
| Package 3 Length | 40 cm |
| Package 3 Weight | 7.968 kg |
