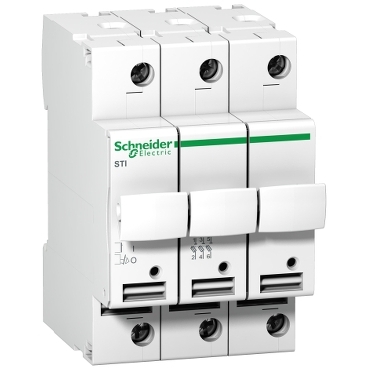

Schneider Acti9 STI_ Acti 9 - fuse-disconnector STI - 3 poles - 25 A - for fuse 10.3 x 38 mm_ [A9N15656]
Electrical / Breaker / MCB Accessories
This Acti9 STI isolatable fuse-carriers is a low voltage fuse-disconnector. It is used for tertiary and industrial applications requiring a high breaking capacity. It has 3P pole, up to 25A rated current, and gG or aM fuse curve with a fuse cartridge type of 10.3mm x 38mm. it can be mounted on DIN rail for modular installation. The general purpose fuse (gG fuse) provides overload and short-circuit protection. The aM fuse for motor application provides short-circuit protection (protection of loads with a high peak current). it has an IP20 degree of protection on its terminals, becoming IP40 once in modular enclosure. A clip-on marker is visible on front face or on downstream terminal to identify fuse presence. An optional 230V neon indicator light indicates fuse blowing (off in normal operation and lit red after fuse blowing). The device is provided with a captive fuse-carrier and an additional housing for a spare fuse. Its toggle can also be padlocked.
Specifications
Main
| range | Acti9 |
|---|---|
| product name | Acti9 STI |
| product or component type | Fuse-disconnector |
| device short name | STI |
| poles description | 3P |
Complementary
| [In] rated current | 2 A 4 A 6 A 10 A 16 A 20 A 25 A |
|---|---|
| fuse curve | GG AM |
| fuse size | 10.3 x 38 mm |
| [Ue] rated operational voltage | 500 V AC |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz |
| mounting mode | Clip-on |
| mounting support | DIN rail |
| 9 mm pitches | 6 |
| Height | 81 mm |
| width | 54 mm |
| Depth | 75 mm |
| colour | White |
| connections - terminals | Screw clamp terminals1 cable(s) 0.75…10 mm² rigid Screw clamp terminals1 cable(s) 0.5…6 mm² flexible Screw clamp terminals2 cable(s) 0.75…4 mm² rigid Screw clamp terminals2 cable(s) 0.5…6 mm² flexible |
| wire stripping length | 12 mm |
| tightening torque | 2 N.m |
Environment
| Standards | IEC EN 60947-3 IEC 60269-1/2 |
|---|---|
| IP degree of protection | IP20 |
| pollution degree | 3 |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…80 °C |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 7.5 cm |
| Package 1 Length | 8.5 cm |
| Package 1 Weight | 165.75 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 8.5 cm |
| Package 2 Width | 9.5 cm |
| Package 2 Length | 22.5 cm |
| Package 2 Weight | 709.0 g |
| Unit Type of Package 3 | S03 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 30.0 cm |
| Package 3 Width | 30.0 cm |
| Package 3 Length | 40.0 cm |
| Package 3 Weight | 8.925 kg |
