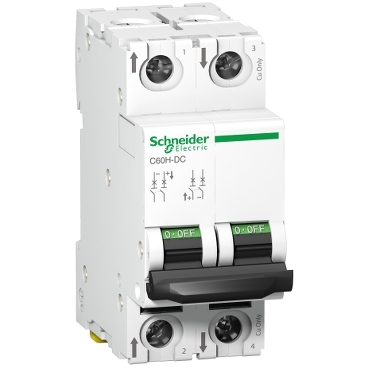

Schneider Breaker Miniature circuit breaker (MCB), Acti9 C60H-DC, 2P, 16A, C curve, 6kA (IEC/EN 60947-2)

Schneider Breaker Miniature circuit breaker (MCB), Acti9 C60H-DC, 2P, 16A, C curve, 6kA (IEC/EN 60947-2)

https://www.hsedubai.com/web/image/product.template/108853/image_1920?unique=4b507a9

Electrical / Breaker / Fuse Carrier

172.00 AED 172.0 AED 172.00 AED

172.00 AED

Not Available For Sale

This combination does not exist.

Terms and Conditions
30-day money-back guarantee
Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

Attachments

This Acti9 C60H-DC is a low voltage direct current miniature circuit breaker (MCB). It has 2P, rated current 5A and C tripping curve. The rated short circuit breaking capacity goes up to 20kA at 220VDC conforming to GB 14048.2 standard and 20kA at 220VDC conforming to GB 14048.2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker combines functions of circuit protection against short circuit and overload current, control and isolation. It offers VisiTrip for safety during maintenance and VisiSafe to reduce intervention time. The Acti9 C60H-DC is used in direct current circuit (industrial control and automation, transport, renewable energy). This device is dedicated to industrial control, automations, transport and renewable energy applications. It has an electrical endurance going up to 3000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 500VDC. The Ui rated insulation voltage is 500VDC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. It is DIN rail mountable. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is white (RAL9003). The weight is 0.256kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C.


Specifications

Main

rangeActi9
product nameActi9 C60H-DC
product or component typeMiniature circuit-breaker
device short nameC60H-DC
device applicationDistribution
poles description2P
number of protected poles2
[In] rated current5 A at 25 °C
network typeDC
trip unit technologyThermal-magnetic
curve codeC
breaking capacity10 kA Icu at 440 V DC conforming to EN 60947-2
10 kA Icu at 440 V DC conforming to IEC 60947-2
6 kA Icu at 500 V DC conforming to EN 60947-2
6 kA Icu at 500 V DC conforming to IEC 60947-2
20 kA Icu at 220 V DC conforming to GB 14048.2
20 kA Icu at 220 V DC conforming to IEC 60947-2
20 kA Icu at 250 V DC conforming to GB 14048.2
20 kA Icu at 250 V DC conforming to IEC 60947-2
utilisation categoryCategory A conforming to EN 60947-2
Category A conforming to IEC 60947-2
suitability for isolationYes conforming to IEC 60947-2
Yes conforming to EN 60947-2

Complementary

network frequency50/60 Hz
[Ue] rated operational voltage500 V DC
[Ics] rated service breaking capacity15 kA 75 % conforming to EN 60947-2 - 220 V DC
15 kA 75 % conforming to IEC 60947-2 - 220 V DC
15 kA 75 % conforming to EN 60947-2 - 250 V DC
15 kA 75 % conforming to IEC 60947-2 - 250 V DC
4.5 kA 75 % conforming to EN 60947-2 - 500 V DC
4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC
7.5 kA 75 % conforming to EN 60947-2 - 440 V DC
7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC
[Ui] rated insulation voltage500 V DC conforming to IEC 60947-2
500 V DC conforming to EN 60947-2
[Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2
contact position indicatorYes
control typeToggle
local signallingON/OFF indication
mounting modeFixed
mounting support35 mm symmetrical DIN rail
comb busbar and distribution block compatibilityTop or bottom: standard
9 mm pitches4
Net weight0.256 kg
colourWhite
mechanical durability20000 cycles
electrical durability3000 cycles L/R = 2 ms
provision for padlockingPadlockable
locking options descriptionIn position O
tightening torquePower circuit: 2.5 N.m top or bottom
earth-leakage protectionWithout

Environment

standardsEN 60947-2
IEC 60947-2
pollution degree3 conforming to EN 60947-2
3 conforming to IEC 60947-2
overvoltage categoryIV
tropicalisation2 conforming to IEC 60068-2
Operating altitude2000 m
ambient air temperature for operation-25…70 °C
Ambient air temperature for storage-40…85 °C

Packing Units

Unit Type of Package 1PCE
Number of Units in Package 11
Package 1 Height7.5 cm
Package 1 Width3.6 cm
Package 1 Length8.5 cm
Package 1 Weight232 g
Unit Type of Package 2BB1
Number of Units in Package 26
Package 2 Height10 cm
Package 2 Width8 cm
Package 2 Length23 cm
Package 2 Weight1.443 kg
Unit Type of Package 3S03
Number of Units in Package 372
Package 3 Height30 cm
Package 3 Width30 cm
Package 3 Length40 cm
Package 3 Weight17.948 kg
