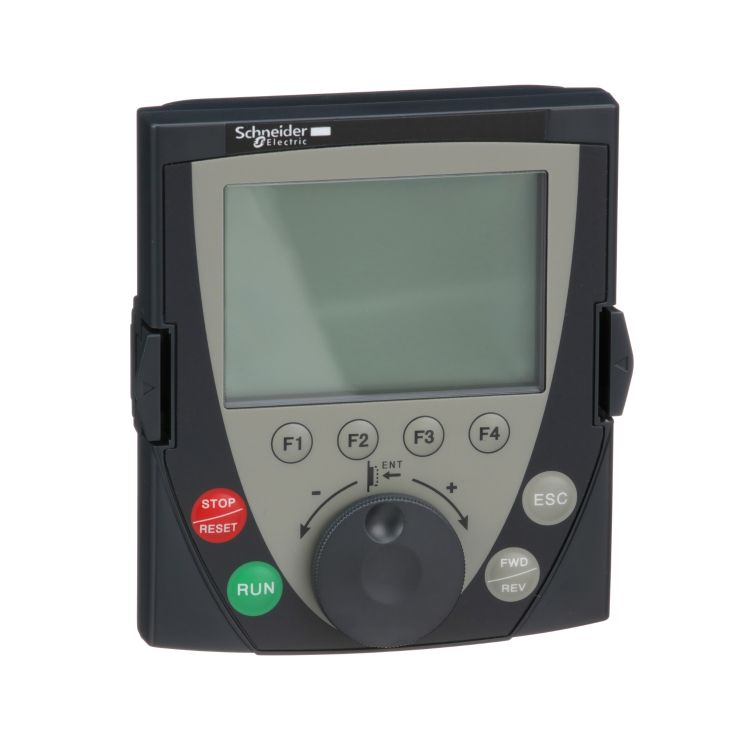

Schneider Soft Starter Altistart 48_ remote graphic terminal - 240 x 160 pixels - IP54_ [VW3A1101]

Schneider Soft Starter Altistart 48_ remote graphic terminal - 240 x 160 pixels - IP54_ [VW3A1101]

https://www.hsedubai.com/web/image/product.template/72336/image_1920?unique=29e3b48

Industrial Automation / Soft Starter / Soft Starter Accessories

541.67 AED 541.67 AED 541.67 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP54. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an Enclosure. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels. It weighs 180g. It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc), save and download configurations, 4 configuration files can be saved. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately._ [VW3A1101]

    Specifications

    Main

    Range of productAltivar
    Range compatibilityAltivar 312
    Altivar 61
    Altivar Lift
    Altivar 32
    Altivar Machine ATV320
    Altivar 312 Solar
    Altivar 212
    Altivar 71
    Altivar 61Q
    Altivar 71Q
    Accessory / separate part categoryDisplay and signalling accessories
    Accessory / separate part typeDisplay terminal
    Accessory / separate part destinationVariable speed drive
    Product specific applicationTo control, adjust and configure the drive
    To save and download configurations
    To display the current values
    IP degree of protectionIP54

    Complementary

    Mounting locationOn the door of an enclosure
    User languageItalian
    English
    French
    Spanish
    German
    Chinese
    Messages display capacity8 lines
    Pixel resolution240 x 160
    Net weight0.145 kg

    Environment

    Ambient air temperature for operation-15…50 °C
