Schneider VFD Altivar 12 variable speed drive ATV12 - 0.75kW - 1hp - 200..240V 1ph with heat sink

Schneider VFD Altivar 12 variable speed drive ATV12 - 0.75kW - 1hp - 200..240V 1ph with heat sink

https://www.hsedubai.com/web/image/product.template/72233/image_1920?unique=6d19c0e

Industrial Automation / VFD / VFD

858.00 AED 858.0 AED 858.00 AED

858.00 AED

Not Available For Sale

    This combination does not exist.

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Attachments

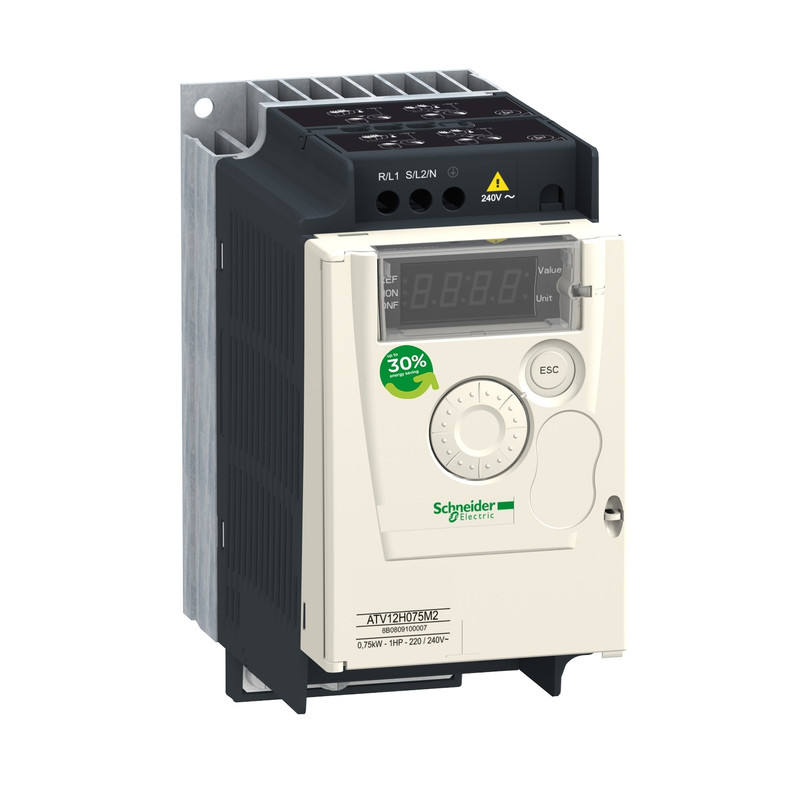

    ATV12H075M2 Schneider Altivar Machine ATV12 is an offer of variable speed drives for commercial equipment and simple machines. It works at a rated power up to 0.75kW / 1hp and a rated voltage from 200V to 240V AC. It is designed with heatsink for normal environments and fan-cooled enclosure. It has advanced PID and catch on the fly functions, basic cabling, and easy motor control setting. Based on the needs, it can be delivered without heatsink, with embedded EMC filter, or as standard version. The Altivar 12 drive integrates as standard the Modbus communication protocol. This Altivar Machine ATV12 is designed for simple applications, in industry, commercial machines and HVAC machines such as conveyors, pumps, extractors, access barriers and treadmills. It conforms to IEC, UL and other international standards. SoMove software compatibility enables saving and transfering of configurations to spare drive, reducing maintenance downtime. It features an optimized application of power and torque for ventilation and pumping applications, this allows up to 30% energy savings.

    Specifications

    Main

    Range of productAltivar 12
    Product or component typeVariable speed drive
    Product specific applicationSimple machine
    Mounting modeCabinet mount
    Communication port protocolModbus
    supply frequency50/60 Hz +/- 5 %
    [Us] rated supply voltage200...240 V - 15...10 %
    Nominal output current4.2 A
    motor power hp1 hp
    motor power kW0.75 kW
    motor power hp1 hp
    EMC filterIntegrated
    IP degree of protectionIP20

    Complementary

    Discrete input number4
    Discrete output number2
    Analogue input number1
    Analogue output number1
    Relay output number1
    Physical interface2-wire RS 485
    connector type1 RJ45
    continuous output current4.2 A at 4 kHz
    method of accessServer Modbus serial
    Speed drive output frequency0.5…400 Hz
    speed range1…20
    sampling duration20 ms, tolerance +/- 1 ms for logic input
    10 ms for analogue input
    linearity error+/- 0.3 % of maximum value for analogue input
    frequency resolutionAnalog input: converter A/D, 10 bits
    Display unit: 0.1 Hz
    time constant20 ms +/- 1 ms for reference change
    Transmission rate9.6 kbit/s
    19.2 kbit/s
    38.4 kbit/s
    Transmission frameRTU
    Number of addresses1…247
    Data format8 bits, configurable odd, even or no parity
    communication serviceRead holding registers (03) 29 words
    Write single register (06) 29 words
    Write multiple registers (16) 27 words
    Read/write multiple registers (23) 4/4 words
    Read device identification (43)
    Type of polarizationNo impedance
    4 quadrant operation possibleFalse
    Asynchronous motor control profileQuadratic voltage/frequency ratio
    Voltage/frequency ratio (V/f)
    Sensorless flux vector control
    Maximum output frequency4 kHz
    transient overtorque150…170 % of nominal motor torque depending on drive rating and type of motor
    Acceleration and deceleration rampsLinear from 0 to 999.9 s
    U
    S
    Motor slip compensationPreset in factory
    Adjustable
    switching frequency2...16 kHz adjustable
    4...16 kHz with derating factor
    Nominal switching frequency4 kHz
    Braking to standstillBy DC injection
    Brake chopper integratedFalse
    line current10.2 A at 100 V (heavy duty)
    8.5 A at 120 V (heavy duty)
    Maximum input current8.5 A
    Maximum output voltage240 V
    apparent power2.0 kVA at 240 V (heavy duty)
    maximum transient current6.3 A during 60 s (heavy duty)
    6.9 A during 2 s (heavy duty)
    Network frequency50...60 Hz
    Relative symmetric network frequency tolerance5 %
    Prospective line Isc1 kA
    Base load current at high overload4.2 A
    power dissipation in WNatural: 44.0 W
    With safety function Safely Limited Speed (SLS)False
    With safety function Safe brake management (SBC/SBT)False
    With safety function Safe Operating Stop (SOS)False
    With safety function Safe Position (SP)False
    With safety function Safe programmable logicFalse
    With safety function Safe Speed Monitor (SSM)False
    With safety function Safe Stop 1 (SS1)False
    With sft fct Safe Stop 2 (SS2)False
    With safety function Safe torque off (STO)False
    With safety function Safely Limited Position (SLP)False
    With safety function Safe Direction (SDI)False
    protection typeLine supply overvoltage
    Line supply undervoltage
    Overcurrent between output phases and earth
    Overheating protection
    Short-circuit between motor phases
    Against input phase loss in three-phase
    Thermal motor protection via the drive by continuous calculation of I²t
    Tightening torque0.8 N.m
    InsulationElectrical between power and control
    Quantity per setSet of 1
    Width72 mm
    Height143 mm
    Depth131.2 mm
    Net weight0.8 kg

    Environment

    operating altitude> 1000...2000 m with current derating 1 % per 100 m
    <= 1000 m without derating
    Operating positionVertical +/- 10 degree
    Product certificationsNOM
    CSA
    C-Tick
    UL
    GOST
    RCM
    KC
    MarkingCE
    StandardsUL 508C
    UL 618000-5-1
    EN/IEC 61800-5-1
    EN/IEC 61800-3
    Assembly styleWith heat sink
    electromagnetic compatibilityElectrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
    Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
    Immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6
    Radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3
    Surge immunity test level 3 conforming to EN/IEC 61000-4-5
    Voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
    Environmental class (during operation)Class 3C3 according to IEC 60721-3-3
    Class 3S2 according to IEC 60721-3-3
    Maximum acceleration under shock impact (during operation)150 m/s² at 11 ms
    Maximum acceleration under vibrational stress (during operation)10 m/s² at 13...200 Hz
    Maximum deflection under vibratory load (during operation)1.5 mm at 2...13 Hz
    Overvoltage categoryClass III
    Regulation loopAdjustable PID regulator
    electromagnetic emissionRadiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
    Conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m
    Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2...12 kHz shielded motor cable <5 m
    Conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m
    Conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m
    Conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
    Conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
    vibration resistance1 gn (f = 13…200 Hz) conforming to EN/IEC 60068-2-6
    1.5 mm peak to peak (f = 3…13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6
    shock resistance15 gn conforming to EN/IEC 60068-2-27 for 11 ms
    relative humidity5…95 % without condensation conforming to IEC 60068-2-3
    5…95 % without dripping water conforming to IEC 60068-2-3
    Noise level0 dB
    Pollution degree2
    Ambient air transport temperature-25…70 °C
    ambient air temperature for operation-10…40 °C without derating
    40…60 °C with current derating 2.2 % per °C
    Ambient air temperature for storage-25…70 °C
