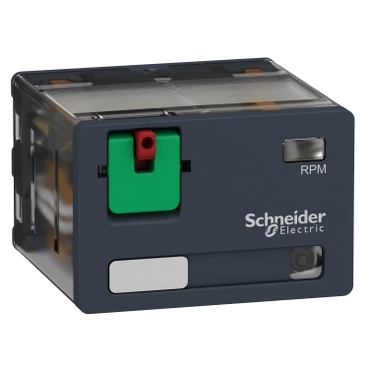

Schneider Signaling Harmony_ Harmony, Power plug-in relay, 15 A, 4 CO, with LED, with lockable test button, 24 V AC_ [RPM42B7]
Industrial Automation / Signaling / Relay
It has large choice of number of contacts for high rated current use. It also offers LED indicator to alert on the current status of the relay. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere. This RPM product is IP40. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. Status display with LED, clearly signal both in the day and night.
Specifications
Main
| Range of product | Harmony Electromechanical Relays |
|---|---|
| Series name | Power |
| Product or component type | Plug-in relay |
| Device short name | RPM |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 15 A at -40…55 °C |
| Status LED | With |
| Control type | Lockable test button |
| Utilisation coefficient | 20 % |
Complementary
| Shape of pin | Flat |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 300 V conforming to CSA 300 V conforming to UL |
| [Uimp] rated impulse withstand voltage | 4 kV during 1.2/50 µs |
| Contacts material | AgNi |
| [Ie] rated operational current | 15 A at 277 V (AC) conforming to UL 15 A at 28 V (DC) conforming to UL 15 A at 250 V (AC) NO conforming to IEC 15 A at 28 V (DC) NO conforming to IEC 7.5 A at 250 V (AC) NC conforming to IEC 7.5 A at 28 V (DC) NC conforming to IEC |
| maximum switching voltage | 250 V conforming to IEC |
| Resistive load current | 15 A at 250 V AC 15 A at 28 V DC |
| maximum switching capacity | 3750 VA 420 W |
| minimum switching capacity | 170 mW at 10 mA, 17 V |
| operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Mechanical durability | 10000000 cycles |
| electrical durability | 100000 cycles for resistive load |
| Average coil consumption in VA | 2.5 at 60 Hz |
| drop-out voltage threshold | >= 0.15 Uc AC |
| Operate time | 20 ms at nominal voltage |
| Release time | 20 ms at nominal voltage |
| Average coil resistance | 80 Ohm at 20 °C +/- 15 % |
| rated operational voltage limits | 19.2...26.4 V AC |
| Protection category | RT I |
| test levels | Level A group mounting |
| Operating position | Any position |
| pollution degree | 3 |
| Safety reliability data | B10d = 100000 |
| Net weight | 0.071 kg |
| Device presentation | Complete product |
Environment
| dielectric strength | 1500 V AC between contacts with micro disconnection 2000 V AC between coil and contact with reinforced 2000 V AC between poles with basic |
|---|---|
| Standards | EN/IEC 61810-1 CSA C22.2 No 14 UL 508 |
| Product certifications | CSA EAC UL |
| Ambient air temperature for storage | -40…85 °C |
| ambient air temperature for operation | -40…55 °C |
| vibration resistance | 3 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles in operation 5 gn, amplitude = +/- 1 mm (f = 10…150 Hz)5 cycles not operating |
| Degree of protection (Housing only) | IP40 conforming to EN/IEC 60529 |
| shock resistance | 15 gn for in operation 30 gn for not operating |
