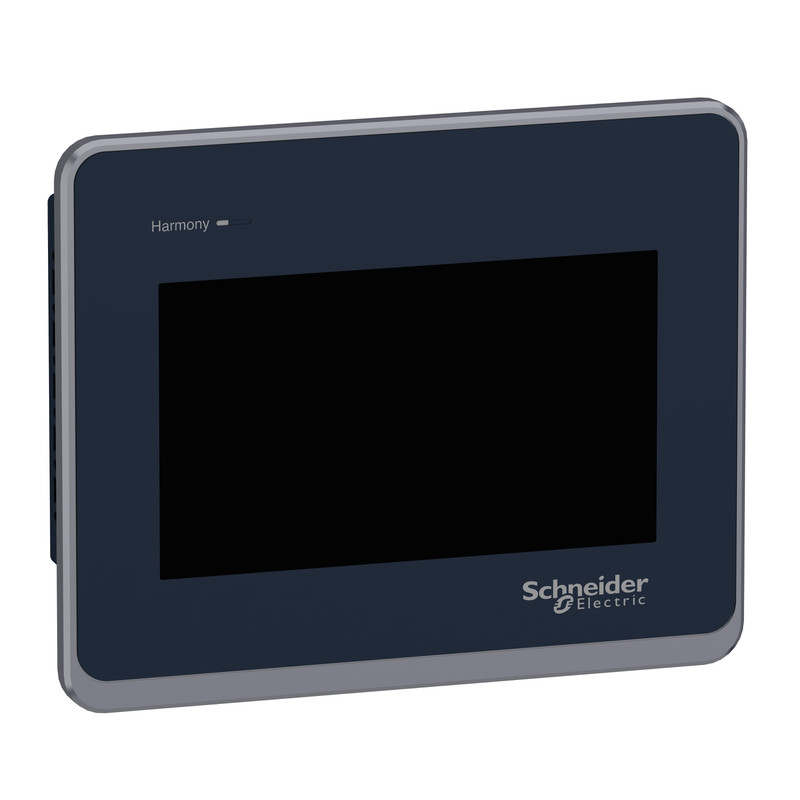

Schneider HMI Harmony STU, STO_ Touch panel screen, Harmony ST6, 4"W display, 1COM, 1Ethernet, USB host&device, 24 VDC_ [HMIST6200]
Industrial Automation / HMI / HMI
This Basic HMI panel belongs to the Schneider Electric Harmony ST6 range. This single-touch resistive HMI is made of an aluminum front panel with a multi-color status indicator showing the various operating modes. This HMI interface is 4.3 inches wide with 16 million colors and 480 x 272 pixel resolution. It is powered by EcoStruxure Operator Terminal Expert software for an intuitive user experience. It has an 800 MHz ARM Cortex-A8 CPU, 512 MB device memory, 128 MB user data memory, and 512 KB backup memory. This HMI ST6 supports 1x Ethernet port, 1x COM1 (RS-232C or RS-485), 1x USB 2.0 Type A, and 1x USB 2.0 Micro-B port. Its dimensions are 134.5mm (width) x 108.5mm (height) x 43mm (depth) and weighs 0.40 kg. This is intended for industries like packaging, food & beverage, textile, HVAC equipment, and compressors, and also for end users looking for maintenance of their Web devices. It conforms to standards like EN (61000-6-4, 61000-6-2, 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201, and certifications like CSA, CE, China RoHS, KC, REACH. This range is designed to meet the needs of simple machine operators for good visualization, connectivity, and cybersecurity with EcoStruxure Secure Connect Advisor, and cost-effective equipment. The various degree of protection is IP65F, Type 1, Type 4X (indoor use only), and Type 13 (on the front panel when properly installed in an enclosure).
Specifications
Main
| range of product | Harmony ST6 |
|---|---|
| product or component type | Touch panel screen |
| processor name | ARM Cortex-A8 |
Complementary
| display size | 4 inch |
|---|---|
| display type | Colour TFT LCD |
| display colour | 16 million colours |
| display resolution | 480 x 272 pixels |
| touch panel | Single touch analogue resistive |
| backlight lifespan | 50000 hours with white |
| brightness | 16 levels |
| character font | ASCII ASCII (European characters) Chinese (simplified Chinese) Japanese (ANK, Kanji) Katakana Korean Taiwanese (traditional Chinese) |
| [Us] rated supply voltage | 24 V DC (+/- 20 %) |
| inrush current | 30 A |
| local signalling | Status LED green, steady for offline Status LED green, steady for operating Status LED green, flashing for operating Status LED green, faded for stand-by Status LED orange, flashing for software starting up Status LED red, steady for power supply (ON) Status LED red, flashing for operating Status LED red, off for power supply (OFF) |
| power consumption in W | 6.9 W |
| number of pages | 200 application pages |
| software package | EcoStruxure Operator Terminal Expert |
| processor frequency | 800 MHz |
| port Ethernet | 10/100BASE |
| memory description | 512 MB device memory 128 MB user data memory 512 kB backup memory |
| integrated connection type | 1 COM1 serial link - 1 SUB-D 9-pin female - RS232C/RS485 (rate: 2400...115200 bps)bottom COM1 serial link (rate: 2400...187500 bps)back 1 USB 2.0 type Aback 1 USB 2.0 type micro Bbottom 1 Ethernet - female RJ45 - RS485 |
| supply | External supply |
| realtime clock | Built-in 0...50 °C Built-in 10...90 % RH |
| downloadable protocols | Modbus Uni-TE Third party protocols |
| product brand | Schneider Electric Modicon Mitsubishi Melsec Omron Sysmac Rockwell Automation Allen-Bradley Siemens Simatic |
| fixing mode | By 2 screws, mounting on 1.6...5 mm thick panel conforming to UL 61010-2-201 By 2 screws conforming to EN 61131-2 By 2 screws conforming to IEC 61000-6-2 |
| enclosure material | PC |
| front material | Aluminium |
| Marking | CE |
| cut-out dimensions | 118.5 x 92.5 mm panel cut dimension |
| Height | 108.5 mm |
| width | 134.5 mm |
| Depth | 43 mm |
| Net weight | 0.4 kg |
Environment
| immunity to microbreaks | 2 ms |
|---|---|
| Standards | EN 61000-6-4 EN 61000-6-2 EN 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
| product certifications | CSA CE UKCA |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| relative humidity | 10…90 % non-condensing |
| Operating altitude | 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 61131-2 IP65 (front panel) conforming to IEC 61131-2 |
| NEMA degree of protection | NEMA 4 front panel (indoor use) NEMA 13 front panel (in enclosure) |
| shock resistance | 147 m/s² for 11 ms (X, Y, Z directions for 10 cycles (approx. 100 min)) conforming to EN/IEC 61131-2 |
| vibration resistance | +/- 3.5 mm (f = 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) |
| electromagnetic compatibility | Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.0 cm |
| Package 1 Width | 13.6 cm |
| Package 1 Length | 18.4 cm |
| Package 1 Weight | 447.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 5.99 kg |
