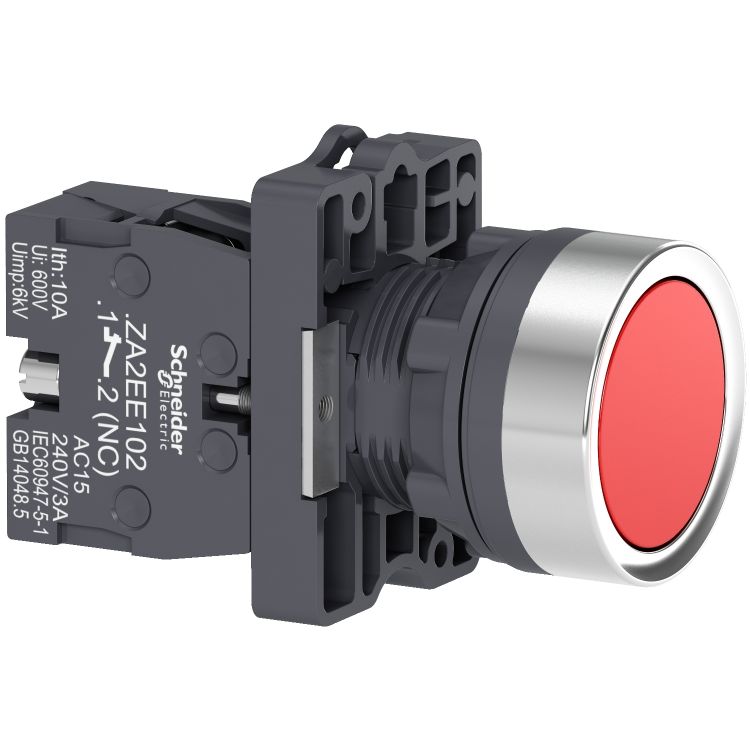

Schneider Signaling Harmony XA2E_ round red push-button Ø 22 - flush spring return - 1NC_ [XA2EA42]
Industrial Automation / Signaling / Push Button
This product is Partsof the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. It is a modular flush red pushbutton. This pushbutton operates with a spring return / impulse mechanism. This flush pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with slow-break operation. This is a plastic pushbutton with a metallic-look ring design bezel. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments._ [XA2EA42]
Specifications
Main
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
Complementary
| Mounting diameter | 22 mm |
|---|---|
| Sale per indivisible quantity | 1 |
| Protective treatment | TC |
| Operating position | Any position |
| fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| type of operator | Spring return |
| operator profile | Red flush |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| positive opening | With NC contact conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 1500000 cycles |
| connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| tightening torque | 0.8 N.m |
| short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to EN/IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 |
| electrical reliability | Λ < 10exp(-8) at 24 V |
| Width | 30 mm |
| Height | 42 mm |
| Depth | 54.7 mm |
| Net weight | 0.032 kg |
Environment
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| Standards | IEC 60947-5-1 GB 14048.5 IEC 60947-1 GB 14048.1 |
| Product certifications | CCC CE |
| vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
