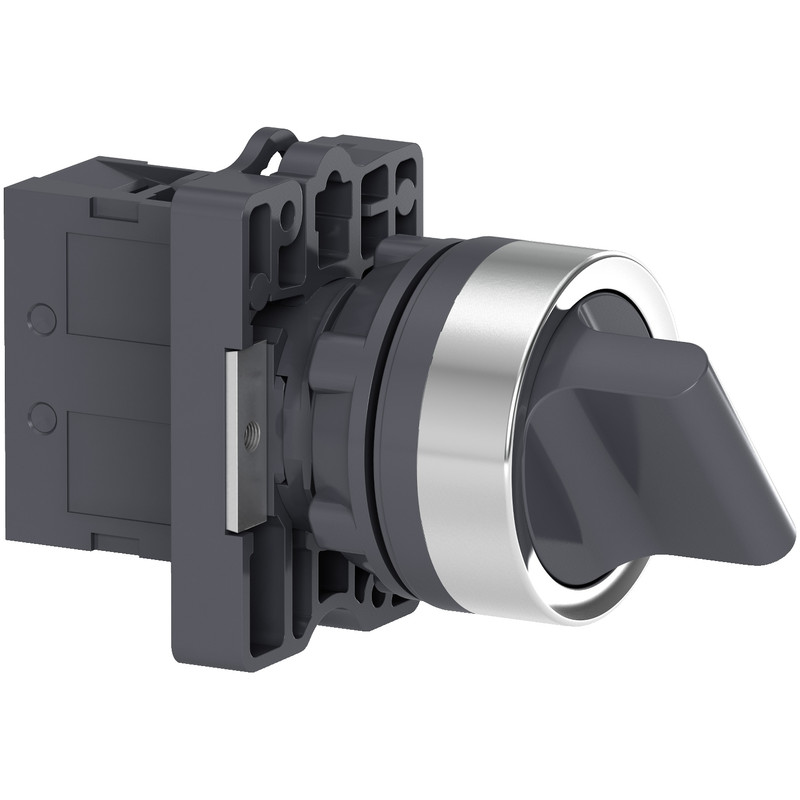

Schneider Signaling Harmony XA2E_ selector switch - Ø22 - standard handle - 2 positions - 1NO_ [XA2ED21]

Schneider Signaling Harmony XA2E_ selector switch - Ø22 - standard handle - 2 positions - 1NO_ [XA2ED21]

https://www.hsedubai.com/web/image/product.template/62953/image_1920?unique=29e3b48

Industrial Automation / Signaling / Selector Switch

19.00 AED 19.0 AED 19.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony XA2 black selector switch has 2 positions and operates with a stay-put mechanism. It has a metal bezel. It has 1 x NO contact. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP65, making it ideal for operation in harsh environments._ [XA2ED21]

    Specifications

    Main

    Range of productEasy Harmony XA2
    Product or component typeComplete selector switch
    Device short nameXA2
    Bezel materialPlastic
    Mounting diameter22 mm

    Complementary

    Sale per indivisible quantity1
    fixing center>= 30 x 40 mm (panel) - thickness: 1…5 mm
    fixing modeFixing nut: 2…2.4 N.m
    Shape of signaling unit headRound
    type of operatorStay put
    operator profileBlack standard handle
    Operator position information2 positions
    Contacts type and composition1 NO
    Contact operationSlow-break
    Mechanical durability300000 cycles
    connections - terminals, clamping capacity: <= 2 x 1.5 mm²
    , clamping capacity: <= 1 x 2.5 mm²
    , clamping capacity: >= 1 x 0.5 mm²
    Faston terminals, connection size: 6.3 mm
    tightening torque0.8 N.m
    short-circuit protection10 A fuse type gL conforming to IEC 60269-1
    [Ith] conventional free air thermal current10 A (screw-clamp terminals)
    [Ui] rated insulation voltage600 V conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600
    0.27 A at 250 V, DC-13, Q600
    electrical durability500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
    500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4
    electrical reliabilityΛ < 10exp(-8) at 24 V
    Width30 mm
    Height42 mm
    Depth68.2 mm
    Net weight0.04 kg

    Environment

    Protective treatmentTC
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…55 °C
    overvoltage categoryClass I conforming to IEC 536
    IP degree of protectionIP65 conforming to IEC 60529
    IK degree of protectionIK06 conforming to IEC 60529
    StandardsGB 14048.1
    IEC 60947-1
    GB 14048.5
    IEC 60947-5-1
    Product certificationsCCC
    CE
    vibration resistance10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6
    shock resistance120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
