Schneider Signaling Harmony XA2E_ selector switch - Ø22 - standard handle - 3 positions - 2NO_ [XA2ED33]
Industrial Automation / Signaling / Selector Switch

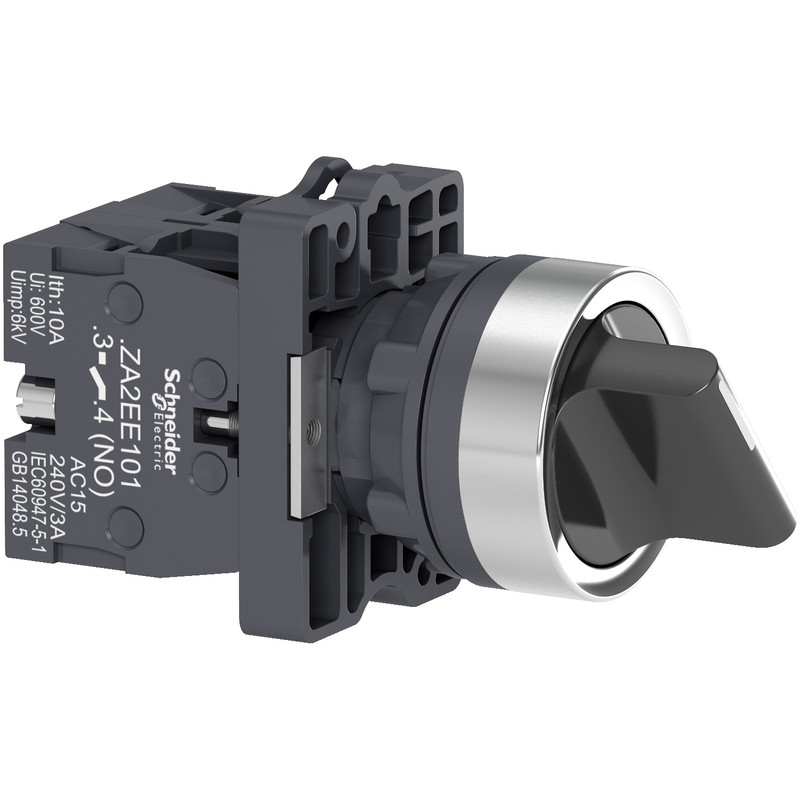

This Harmony XA2 black selector switch has 3-positions, operates with a stay-put mechanism. It has a metal bezel. It has 2 x NO contacts. This selector switch provides a versatile interface for controlling your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments._ [XA2ED33]
Specifications
Main
Range of product | Easy Harmony XA2 |
---|---|
Product or component type | Complete selector switch |
Device short name | XA2 |
Bezel material | Plastic |
Mounting diameter | 22 mm |
Complementary
Sale per indivisible quantity | 1 |
---|---|
fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
fixing mode | Fixing nut: 2…2.4 N.m |
Shape of signaling unit head | Round |
type of operator | Stay put |
operator profile | Black standard handle |
Operator position information | 3 positions |
Contacts type and composition | 2 NO |
Contact operation | Slow-break |
Mechanical durability | 300000 cycles |
connections - terminals | , clamping capacity: <= 2 x 1.5 mm² , clamping capacity: <= 1 x 2.5 mm² , clamping capacity: >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
tightening torque | 0.8 N.m |
short-circuit protection | 10 A fuse type gL conforming to IEC 60269-1 |
[Ith] conventional free air thermal current | 10 A (screw-clamp terminals) |
[Ui] rated insulation voltage | 600 V conforming to EN 60947-1 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to EN 60947-1 |
[Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
electrical reliability | Λ < 10exp(-8) at 24 V |
Width | 30 mm |
Height | 42 mm |
Depth | 68.2 mm |
Net weight | 0.054 kg |
Environment
Protective treatment | TC |
---|---|
Ambient air temperature for storage | -40…70 °C |
Ambient air temperature for operation | -25…55 °C |
overvoltage category | Class I conforming to IEC 536 |
IP degree of protection | IP65 conforming to IEC 60529 |
IK degree of protection | IK06 conforming to IEC 60529 |
Standards | GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60947-1 |
Product certifications | CCC CE |
vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
shock resistance | 120 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
