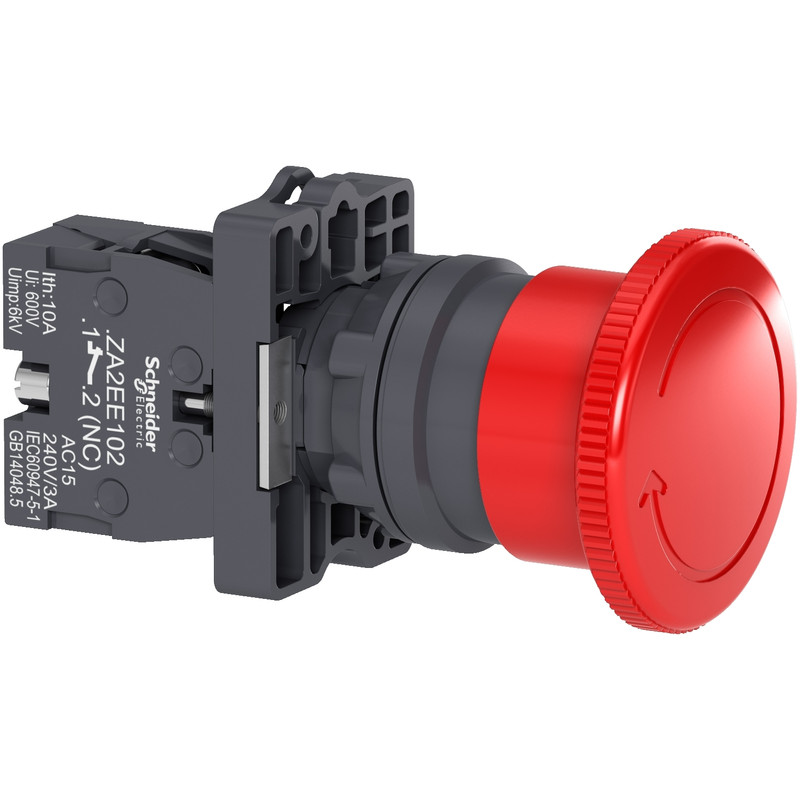

Schneider Signaling Harmony XA2E_ red Ø40 Emergency swtiching off push-button Ø22 non trigger - turn release 1NC_ [XA2ES542]
Industrial Automation / Signaling / Selector Switch
This product is Part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches, and pilot lights. This emergency switching-off pusbutton comes with a mushroom head. It comes with a turn-to-release operation. This mushroom-headed pushbutton provides an ergonomic interface for controlling machines. It has 1 NC contact with the slow-break operation. This is a plastic push button. It has a 40mm diameter mushroom head. It is an IP65-rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is clearly distinguishable visually at a distance due to its clear color. It is impact-resistant, dust-resistant, water-resistant, and vibration resistant making it suitable for operation in harsh environments._ [XA2ES542]
Specifications
Main
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22 mm |
Complementary
| Operating position | Any position |
|---|---|
| device mounting | Fixing hole - diameter: 22 mm |
| fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| type of operator | Turn to release |
| Reset | Turn to release |
| operator profile | Red mushroom Ø 40 mm |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| positive opening | With NC contact |
| Mechanical durability | 100000 cycles |
| connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| tightening torque | 0.8 N.m |
| short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| electrical durability | 500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| electrical reliability | Λ < 10exp(-8) at 24 V |
| Height | 30 mm |
| Width | 42 mm |
| Depth | 74.2 mm |
| Product weight | 0.058 kg |
Environment
| Protective treatment | TC |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -25…55 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK03 |
| Standards | IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 IEC 60529 |
| Product certifications | CCC CE |
| vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
