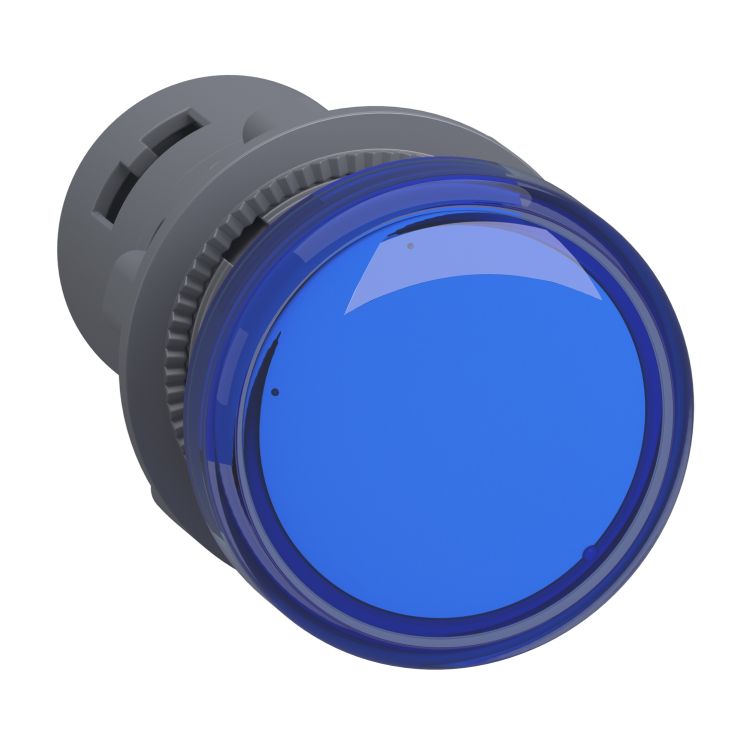

Schneider Signaling Harmony XA2E_ Pilot light, plastic, blue, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference_ [XA2EVM6LC]

Schneider Signaling Harmony XA2E_ Pilot light, plastic, blue, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference_ [XA2EVM6LC]

https://www.hsedubai.com/web/image/product.template/63181/image_1920?unique=29e3b48

Industrial Automation / Signaling / Pilot Light

13.00 AED 13.0 AED 13.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony XA2 blue pilot light with integral LED is supplied with 220V to 230V AC. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It has an IP40 protection index. It has high endurance LED lighting for less replacement and process downtimes._ [XA2EVM6LC]

    Specifications

    Main

    Range of productEasy Harmony XA2
    Product or component typeMonolithic pilot light
    Device short nameXA2
    Mounting diameter22 mm
    Shape of signaling unit headRound
    Cap/operator or lens colourBlue
    Light sourceLED
    Bulb baseIntegral LED
    [Us] rated supply voltage220...230 V AC 50/60 Hz

    Complementary

    Terminals description ISO n°1(X1-X2)PL
    device mountingFixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
    fixing center>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
    >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
    fixing modeFixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
    MarkingCE
    CCC
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    shape of screw headCross compatible with Philips No 2 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    [Ui] rated insulation voltage400 V (pollution degree 3) conforming to EN/IEC 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-1
    Signalling typeSteady
    supply voltage limits0.8…1.2 V AC
    Current consumption<= 20 mA
    service life40000 h at rated voltage and 25 °C
    Height29 mm
    Width29 mm
    Depth53 mm
    Net weight0.02 kg

    Environment

    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    overvoltage categoryClass I conforming to IEC 536
    IP degree of protectionIP65
    IK degree of protectionIK05
    StandardsIEC 60947-1
    GB 14048.1
    IEC 60947-5-1
    GB 14048.5
    IEC 60529
    IEC 50102
    Product certificationsCE
    CCC
    vibration resistance5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
