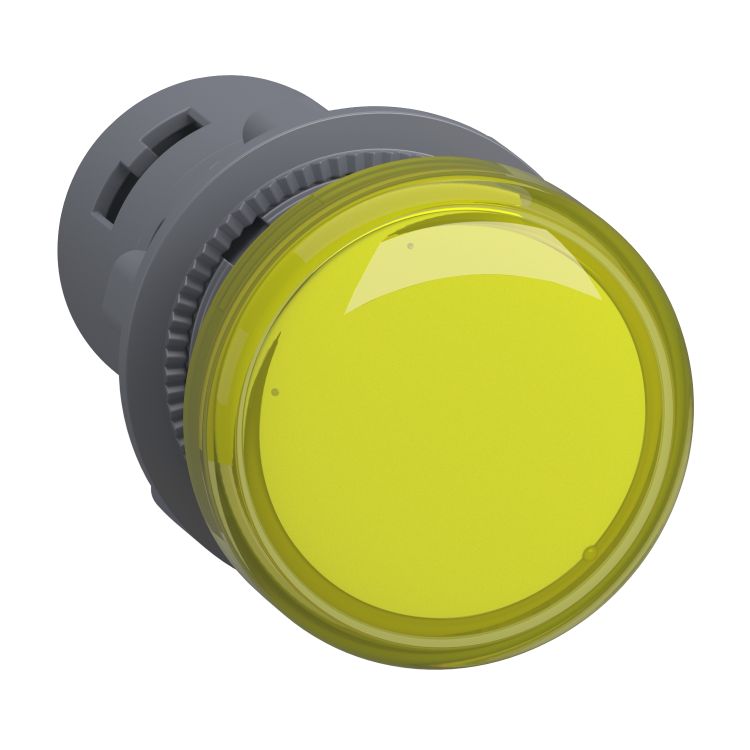

Schneider Signaling Harmony XA2E_ Pilot light, plastic, yellow, Ø 22 mm, with integral LED, 220…230V AC, Anti-interference_ [XA2EVM8LC]
Industrial Automation / Signaling / Pilot Light
This product is part of the Easy Harmony XA2 range, an offer of Ø 22mm plastic pushbuttons, switches and pilot lights. This monolithic yellow pilot light comes with integral LED. This single component pilot light provides clear visual feedback on the status of machines. This pilot light has a 220V to 230V AC rating. This is a plastic component and weighs 0.02kg. It is an IP65 rated product and comes with CE, CCC and EAC certification conforming to GB 14048.1, IEC 60947-1, GB 14048.5 and IEC 60947-5-1 standards . It is sold in lots of 10. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant making it suitable for operation in harsh environments.
Specifications
Main
| Range of product | Easy Harmony XA2 |
|---|---|
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Yellow |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
Complementary
| Terminals description ISO n°1 | (X1-X2)PL |
|---|---|
| device mounting | Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1 |
| fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Marking | CE CCC |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
| shape of screw head | Cross compatible with Philips No 2 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| [Ui] rated insulation voltage | 400 V (pollution degree 3) conforming to EN/IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-1 |
| Signalling type | Steady |
| supply voltage limits | 0.8…1.2 V AC |
| Current consumption | <= 20 mA |
| service life | 40000 h at rated voltage and 25 °C |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 53 mm |
| Net weight | 0.02 kg |
Environment
| Ambient air temperature for storage | -40…70 °C |
|---|---|
| Ambient air temperature for operation | -25…70 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 |
| IK degree of protection | IK05 |
| Standards | GB 14048.1 IEC 60947-1 IEC 60947-5-1 GB 14048.5 IEC 60529 IEC 50102 |
| Product certifications | CCC CE |
| vibration resistance | 5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
