Schneider Signaling Harmony XAC_ CONTACT BLOCK_ [ZB2BE101]

Schneider Signaling Harmony XAC_ CONTACT BLOCK_ [ZB2BE101]

https://www.hsedubai.com/web/image/product.template/63323/image_1920?unique=29e3b48

Industrial Automation / Signaling / Push Button Spare Parts

20.00 AED 20.0 AED 20.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

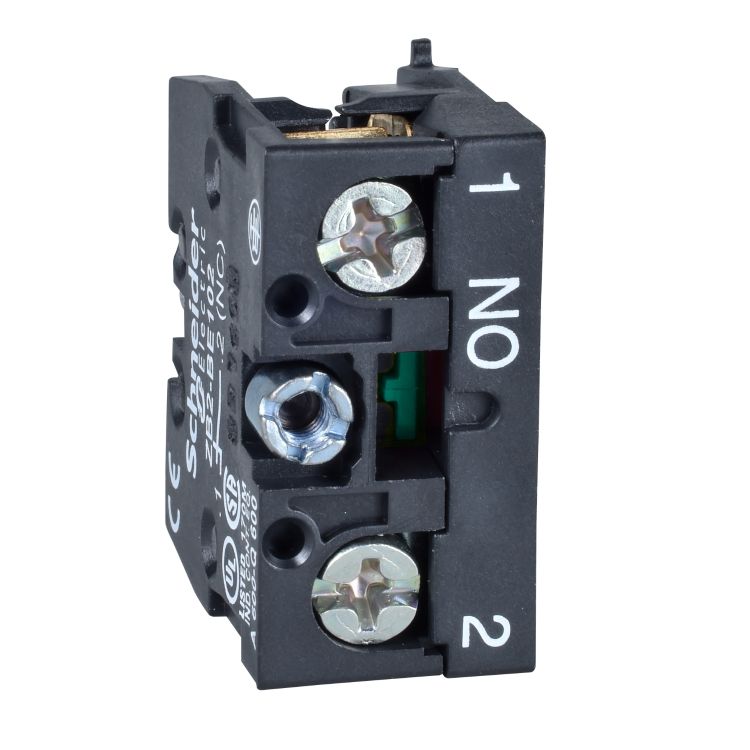

    This additionnal contact block for high power switching is a separate component of diameter 22mm XB4 or XB5 ranges It features a single NO contact block and screw connection type. It is easily fitted on the back of high power switching contacts ZBE50x._ [ZB2BE101]

    Specifications

    Main

    Range of productHarmony XAC
    Product or component typeContact block
    Component nameZB2
    Electrical circuit typeControl circuit
    Contact block applicationSingle speed
    Contact block typeSingle
    Type of operatorSpring return
    Product compatibilityXB4
    XAPS2
    XACA
    XB5
    Contacts type and composition1 NO
    Mounting of blockFront mounting
    Contact operationSlow-break

    Complementary

    connections - terminalsScrew clamps terminals, 1 x 2.5 mm² with or without cable end
    Screw clamps terminals, 2 x 1.5 mm² with or without cable end
    Mechanical durability1000000 cycles
    contact code designationA600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A
    A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A
    Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A
    Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A
    [Ithe] conventional enclosed thermal current10 A
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to IEC 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to IEC 60947-1
    Maximum resistance across terminals25 MOhm
    Operating force13…15 N
    short-circuit protection10 A fuse protection by cartridge fuse type gG (gl)
    rated operational power in W40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1
    48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1
    65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1
    Terminals description ISO n°1(13-14)NO
    Net weight0.02 kg

    Environment

    StandardsEN/IEC 60947-5-1
    UL 508
    EN/IEC 60204-32
    CSA C22.2 No 14
    Ambient air temperature for operation-25…70 °C
    Ambient air temperature for storage-40…70 °C
    vibration resistance15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    shock resistance100 gn conforming to IEC 60068-2-27
    electrical shock protection classClass II conforming to IEC 61140
