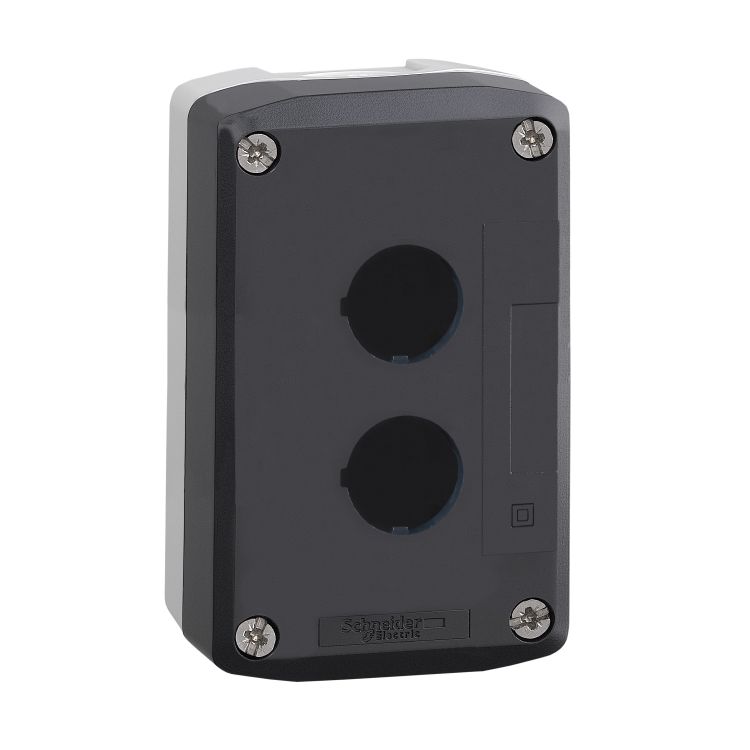

  3. Schneider Signaling Harmony XALD, XALK_ Harmony XALD, XALK, Empty enclosure, plastic, dark grey lid, for push button Ø22, 2 cut-outs_ [XALD02]
Public Pricelist
Schneider Signaling Harmony XALD, XALK_ Harmony XALD, XALK, Empty enclosure, plastic, dark grey lid, for push button Ø22, 2 cut-outs_ [XALD02]

Schneider Signaling Harmony XALD, XALK_ Harmony XALD, XALK, Empty enclosure, plastic, dark grey lid, for push button Ø22, 2 cut-outs_ [XALD02]

https://www.hsedubai.com/web/image/product.template/60260/image_1920?unique=29e3b48

Industrial Automation / Signaling / Empty Box

64.00 AED 64.0 AED 64.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony XALD empty control station has 2 cut-out for 2 push buttons / 2 functions for controlling of operation in machines. This 2 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product._ [XALD02]

    Specifications

    Main

    Range of productHarmony XALD
    Product or component typeEmpty control station
    Device short nameXALD
    Product destinationFor XB5 Ø 22 mm control and signalling units
    Number of cut-out2 cut-outs
    colour of base of enclosureLight grey (RAL 7035)
    colour of coverDark grey (RAL 7016)
    MaterialPolycarbonate
    cable entry2 knock-outs for cable entry, clamping capacity: 14 mm
    2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
    IP degree of protectionIP66 conforming to IEC 60529
    IP67
    IP69
    IP69K
    Complementary
    Assembly styleFor customer assembly
    Number of horizontal rows1
    Number of vertical rows2
    Net weight0.193 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    Mounting of blockFront mounting
    Rear mounting
    Electrical composition codeMF1
    MF2
    PR1
    SF1
    SR1
    MR1
    SR2
    PF2
    PF1
    SF2
    Main group2 cut-outs
    Group of productStandard grey
    Environment
    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK03 conforming to EN 50102
    StandardsEN/IEC 60947-5-4
    UL 508
    EN/IEC 60947-5-5
    EN/IEC 60947-5-1
    JIS C8201-5-1
    EN/IEC 60947-1
    CSA C22.2 No 14
    JIS C8201-1
