Schneider Signaling Harmony XB4_ Selector switch, metal, black, Ø22, 3 positions, stay put, 2 NO_ [XB4BD33]

Schneider Signaling Harmony XB4_ Selector switch, metal, black, Ø22, 3 positions, stay put, 2 NO_ [XB4BD33]

https://www.hsedubai.com/web/image/product.template/60455/image_1920?unique=29e3b48

Industrial Automation / Signaling / Selector Switch

40.00 AED 40.0 AED 40.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

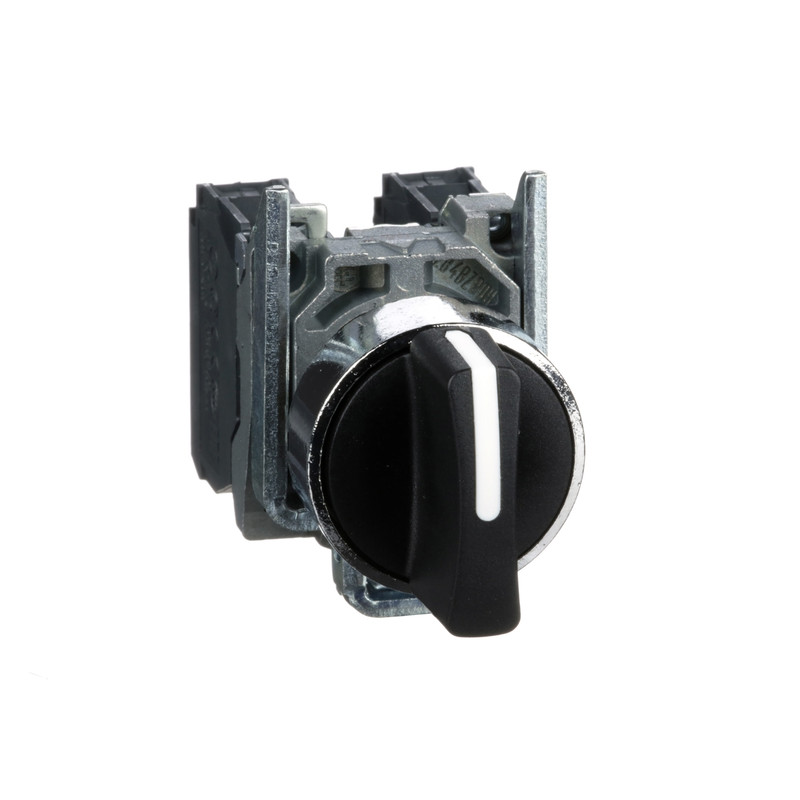

    This Harmony XB4 modular black selector switch has 3 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments._ [XB4BD33]

    Specifications

    Main

    Range of productHarmony XB4
    Product or component typeSelector switch
    Device short nameXB4
    Bezel materialChromium plated metal
    Fixing collar materialZamak
    Mounting diameter22 mm
    Sale per indivisible quantity1
    Head typeStandard
    Shape of signaling unit headRound
    type of operatorStay put
    operator profileBlack standard handle
    Operator position information3 positions +/- 45°
    Contacts type and composition2 NO
    Contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

    Complementary

    Height47 mm
    Width30 mm
    Depth68 mm
    Terminals description ISO n°1(23-24)NO
    (13-14)NO
    Net weight0.105 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    Contacts usageStandard contacts
    positive openingWithout
    torque value0.14 N.m NO changing electrical state
    Mechanical durability1000000 cycles
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    Contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A conforming to EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
    Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4
    Device presentationComplete product

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    overvoltage categoryClass I conforming to IEC 60536
    IP degree of protectionIP69
    IP69K
    IP67 conforming to IEC 60529
    NEMA degree of protectionNEMA 13
    NEMA 4X
    StandardsEN/IEC 60947-5-4
    UL 508
    EN/IEC 60947-5-1
    EN/IEC 60947-5-5
    JIS C8201-5-1
    EN/IEC 60947-1
    CSA C22.2 No 14
    JIS C8201-1
    Product certificationsGL
    UL
    LROS (Lloyds register of shipping)
    CSA
    BV
    DNV
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
