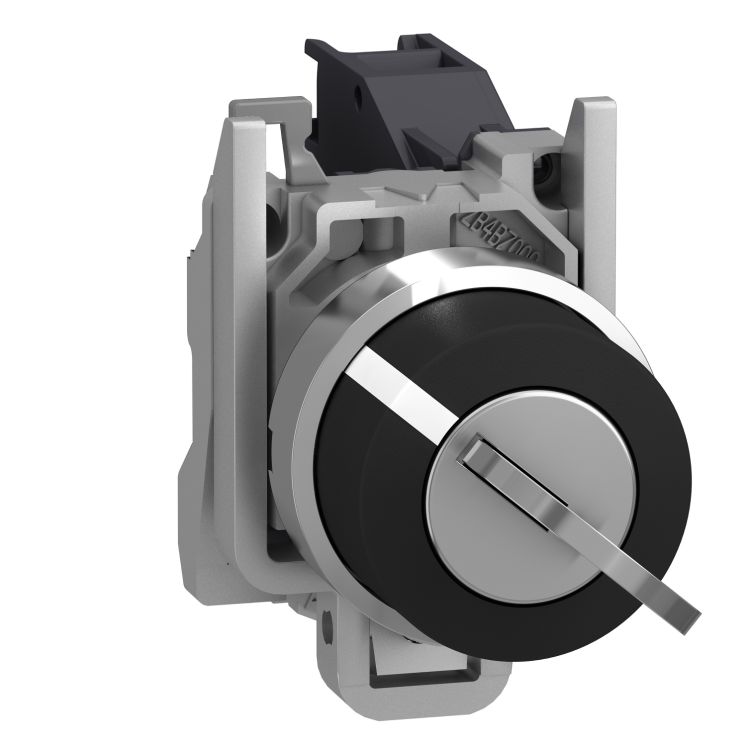

  3. Schneider Signaling Harmony XB4_ Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO_ [XB4BG21]
Public Pricelist
Schneider Signaling Harmony XB4_ Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO_ [XB4BG21]

Schneider Signaling Harmony XB4_ Key switch selector, metal, black, Ø22, key n°455, 2 positions, stay put, 1 NO_ [XB4BG21]

https://www.hsedubai.com/web/image/product.template/60310/image_1920?unique=29e3b48

Industrial Automation / Signaling / Selector Switch

126.00 AED 126.0 AED 126.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony XB4 modular black key selector switch (key no.455) has 2 positions, operates with a stay-put mechanism with key withdrawal on the left position. It has a metal bezel. This key selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a secure manner for authorized staff to switch between process or machine operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments._ [XB4BG21]

    Specifications

    Main

    Range of productHarmony XDA
    Product or component typeJoystick controller
    Device short nameXD4
    Bezel materialChromium plated metal
    Fixing collar materialZamak
    Mounting diameter22 mm
    Sale per indivisible quantity1
    type of operatorSpring return to 0 position, long operating shaft 54 mm length
    Operator position information5 positions
    Operator direction information4 directions
    Contacts type and composition1 NO
    Contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

    Complementary

    Net weight0.133 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    Shape of signaling unit headRound
    Notch per direction1
    Contacts usageStandard
    positive openingWithout
    Mechanical durability1000000 cycles
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    Contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A conforming to EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current0.1 A at 250 V, DC-13, R300 conforming to EN/IEC 60947-5-1
    0.22 A at 125 V, DC-13, R300 conforming to EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
    Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
    Device presentationComplete product

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    electrical shock protection classClass I conforming to IEC 60536
    IP degree of protectionIP66 conforming to IEC 60529
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK03 conforming to IEC 50102
    StandardsEN/IEC 60947-5-1
    UL 508
    EN/IEC 60947-5-5
    CSA C22.2 No 14
    JIS C8201-5-1
    EN/IEC 60947-1
    EN/IEC 60947-5-4
    JIS C8201-1
    Product certificationsUL listed
    LROS (Lloyds register of shipping)
    CSA
    BV
    DNV
    GL
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
