  3. Schneider Signaling Harmony XB5_ Selector switch, plastic, black, Ø22, 3 positions, stay put, 2 NO_ [XB5AD33]
Public Pricelist
Schneider Signaling Harmony XB5_ Selector switch, plastic, black, Ø22, 3 positions, stay put, 2 NO_ [XB5AD33]

Schneider Signaling Harmony XB5_ Selector switch, plastic, black, Ø22, 3 positions, stay put, 2 NO_ [XB5AD33]

https://www.hsedubai.com/web/image/product.template/62889/image_1920?unique=29e3b48

Industrial Automation / Signaling / Selector Switch

24.30 AED 24.3 AED 24.30 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

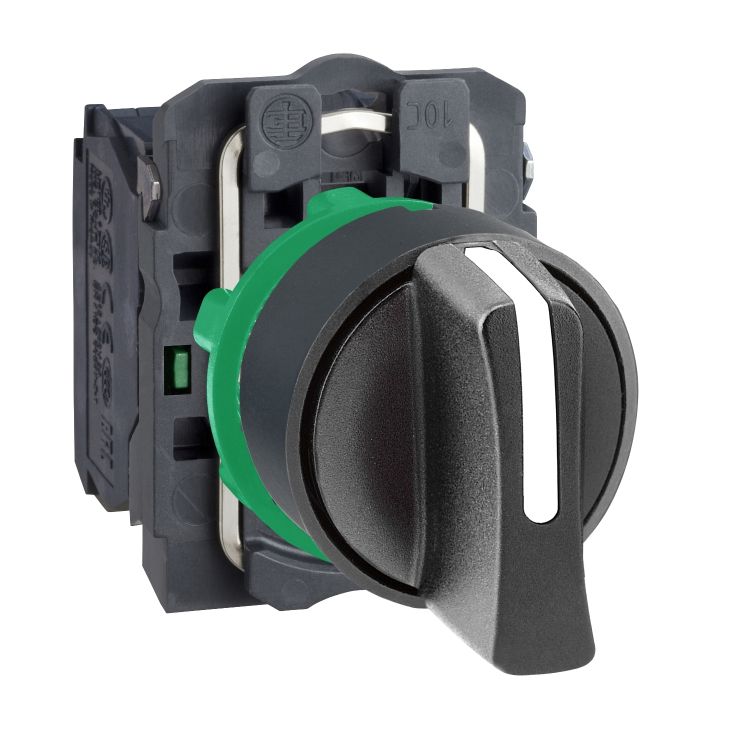

    This Harmony XB5, modular black selector switch has 3 positions, operates with a stay-put mechanism and uses screw clamp terminals. This selector switch provides a versatile interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation._ [XB5AD33]

    Specifications

    Main

    Range of productHarmony XB5
    Product or component typeSelector switch
    Device short nameXB5
    Bezel materialDark grey plastic
    Head typeStandard
    Mounting diameter22 mm
    Sale per indivisible quantity1
    Shape of signaling unit headRound
    type of operatorStay put
    operator profileBlack standard handle
    Operator position information3 positions +/- 45°
    Contacts type and composition2 NO
    Contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

    Complementary

    Height42 mm
    Width30 mm
    Depth70 mm
    Terminals description ISO n°1(13-14)NO
    Net weight0.052 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    Contacts usageStandard contacts
    positive openingWithout
    torque value0.14 N.m NO changing electrical state
    Mechanical durability1000000 cycles
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    Contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A conforming to EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
    Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4
    Device presentationComplete product

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    electrical shock protection classClass II conforming to IEC 60536
    IP degree of protectionIP67 conforming to IEC 60529
    IP69
    IP69K
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK06 conforming to IEC 50102
    standardsEN/IEC 60947-1
    EN/IEC 60947-5-1
    JIS C8201-5-1
    CSA C22.2 No 14
    EN/IEC 60947-5-4
    UL 508
    JIS C8201-1
    Product certificationsUL
    GL
    LROS (Lloyds register of shipping)
    DNV
    CSA
    BV
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
