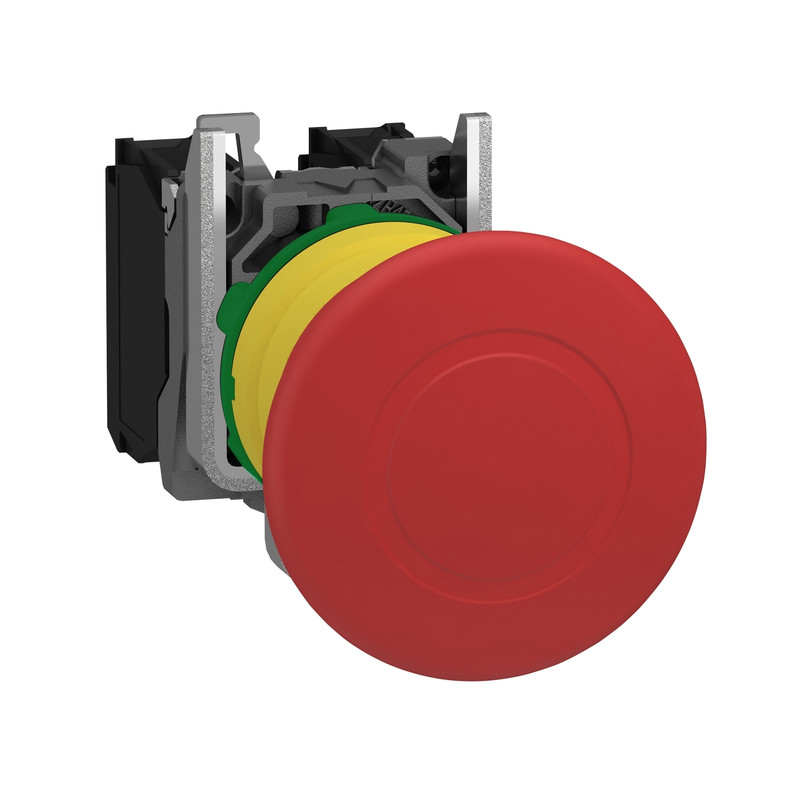

    This Harmony XB5, emergency stop 40mm mushroom head modular red push button operates with a latched push-pull mechanism and uses screw clamp terminals. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off) is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation._ [XB5AT845]

    Specifications

    Main

    Range of productHarmony XB5
    Product or component typeEmergency stop push-button
    Emergency switching off push-button
    Device short nameXB5
    Bezel materialDark grey plastic
    Fixing collar materialPlastic
    Head typeStandard
    Mounting diameter22 mm
    Sale per indivisible quantity1
    Shape of signaling unit headRound
    type of operatorTrigger action and mechanical latching
    ResetPush-pull
    operator profileRed mushroom Ø 40 mm, unmarked
    Contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1
    Device presentationComplete product

    Complementary

    Height43 mm
    Width40 mm
    Depth82 mm
    Terminals description ISO n°1(13-14)NO
    (11-12)NC
    Net weight0.065 kg
    0.076 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    Contacts usageStandard contacts
    positive openingWith conforming to EN/IEC 60947-5-1 appendix K
    operating travel1.5 mm (NC changing electrical state)
    2.6 mm (NO changing electrical state)
    4.3 mm (total travel)
    operating force50 N
    Mechanical durability300000 cycles
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    Contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A conforming to EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) at 5 V, 1 mA in clean environment conforming to EN/IEC 60947-5-4
    Λ < 10exp(-8) at 17 V, 5 mA in clean environment conforming to EN/IEC 60947-5-4

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    IP degree of protectionIP66 conforming to IEC 60529
    IP67
    IP69
    IP69K
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK03 conforming to IEC 50102
    standardsEN/IEC 60947-5-4
    JIS C8201-5-1
    EN/IEC 60947-5-1
    CSA C22.2 No 14
    IEC 60364-5-53
    EN/IEC 60204-1
    EN/IEC 60947-1
    EN/ISO 13850
    EN/IEC 60947-5-5
    UL 508
    JIS C8201-1
    Product certificationsBV
    CSA
    DNV
    GL
    UL listed
    LROS (Lloyds register of shipping)
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
