  3. Schneider Signaling Harmony XB5_ green Monolithic pilot light Ø22 plain lens with integral LED 24V_ [XB5EVB3]
Public Pricelist
Schneider Signaling Harmony XB5_ green Monolithic pilot light Ø22 plain lens with integral LED 24V_ [XB5EVB3]

Schneider Signaling Harmony XB5_ green Monolithic pilot light Ø22 plain lens with integral LED 24V_ [XB5EVB3]

https://www.hsedubai.com/web/image/product.template/63179/image_1920?unique=29e3b48

Industrial Automation / Signaling / Pilot Light

48.00 AED 48.0 AED 48.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

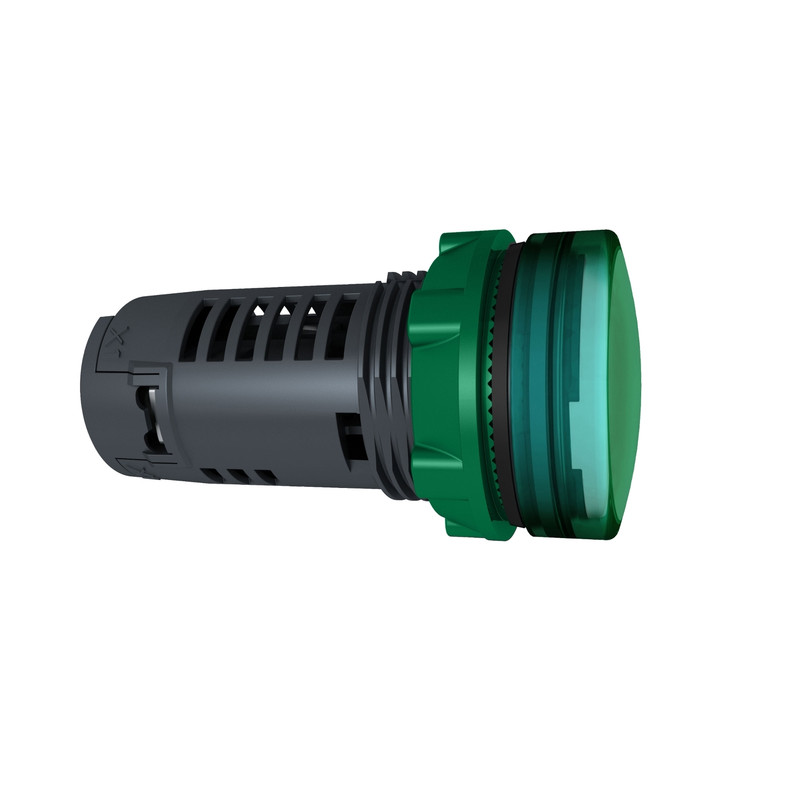

    This Harmony XB5, plain lens monolithic green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation._ [XB5EVB3]

    Specifications

    Main

    Range of productHarmony XB5
    Product or component typePilot light
    Device short nameXB5
    Bezel materialDark grey plastic
    Fixing collar materialPlastic
    Head typeStandard
    Mounting diameter22 mm
    Sale per indivisible quantity1
    Shape of signaling unit headRound
    Cap/operator or lens colourGreen
    Operator additional informationWith plain lens
    Light sourceUniversal LED
    Bulb baseIntegral LED
    Light source colourGreen
    [Us] rated supply voltage24 V AC/DC at 50/60 Hz
    Device presentationMonolithic product

    Complementary

    Height29 mm
    Width29 mm
    Depth54 mm
    Terminals description ISO n°1(X1-X2)PL
    Net weight0.038 kg
    resistance to high pressure washer7000000 Pa at 55 °C, distance : 0.1 m
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    [Ui] rated insulation voltage250 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage4 kV conforming to EN 60947-1
    Signalling typeSteady
    Compatibility codeXB5
    supply voltage limits19.2…30 V DC
    21.6…26.4 V AC
    Current consumption18 mA
    service life100000 h at rated voltage and 25 °C
    surge withstand1 kV conforming to IEC 61000-4-5

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    IP degree of protectionIP66 conforming to IEC 60529
    IP67 conforming to IEC 60529
    IP69 conforming to IEC 60529
    IP69K conforming to ISO 20653
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK05 conforming to IEC 50102
    standardsUL 508
    JIS C8201-5-1
    EN/IEC 60947-1
    EN/IEC 60947-5-4
    CSA C22.2 No 14
    EN/IEC 60947-5-1
    JIS C8201-1
    Product certificationsCSA
    UL listed
    vibration resistance5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
    shock resistance50 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    resistance to fast transients2 kV conforming to IEC 61000-4-4
    resistance to electromagnetic fields10 V/m conforming to IEC 61000-4-3
    electromagnetic compatibilityElectrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2
    Electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2
    Electromagnetic emission class B conforming to IEC 55011
    resistance to electrostatic discharge6 kV on contact (on metal parts) conforming to IEC 61000-4-2
    8 kV in free air (in insulating parts) conforming to IEC 61000-4-2
    electromagnetic emissionClass B conforming to IEC 55011
