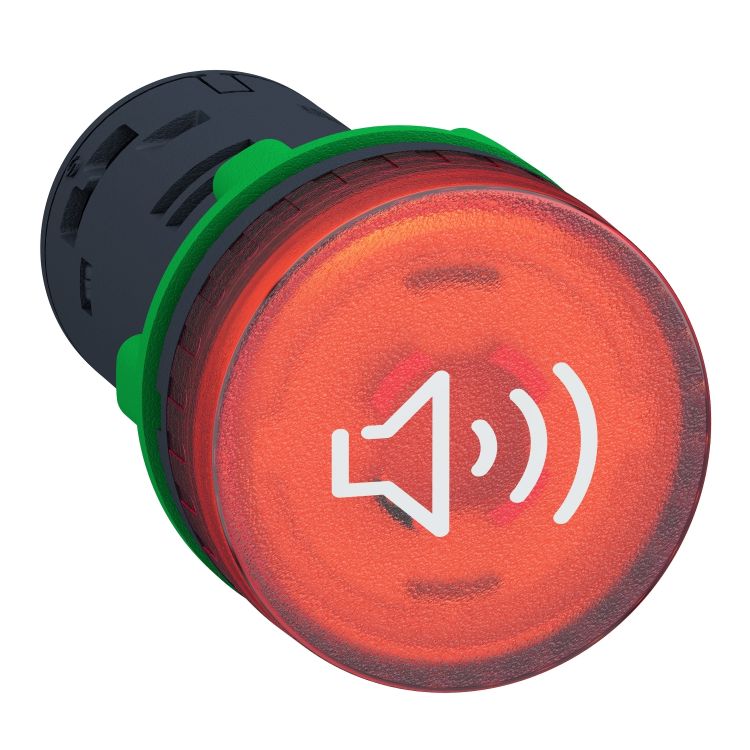

Schneider Signaling Harmony XB5_ Harmony XB5, Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 230…240 V AC_ [XB5KS2M4]
Industrial Automation / Signaling / Buzzer
This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments._ [XB5KS2M4]
Specifications
Main
Range of product | Harmony XB5 |
---|---|
Product or component type | Annunciator |
Bezel material | Plastic |
Mounting diameter | 22 mm |
Cap/operator or lens colour | Red |
Complementary
[Us] rated supply voltage | 230...240 V +/- 10 % |
---|---|
Supply circuit type | AC |
Supply frequency | 50/60 Hz |
Current consumption | <= 35 mA |
Signalling type | Continuous or intermittent tone |
noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
Height | 29 mm |
Width | 29 mm |
Depth | 55 mm |
Net weight | 0.024 kg |
Environment
Protective treatment | TH |
---|---|
Ambient air temperature for storage | -40…70 °C |
Ambient air temperature for operation | -40…70 °C |
overvoltage category | Class II conforming to IEC 60536 |
IP degree of protection | IP20 IP66 IP67 IP69 IP69K |
NEMA degree of protection | NEMA 4X NEMA 13 |
IK degree of protection | IK05 IK03 |
Standards | IEC 60947-5-4 CSA C22.2 No 14 IEC 60947-5-1 EN 60947-1 IEC 60947-1 UL 508 EN 60947-5-1 EN 60947-5-4 JIS C8201-5-1 JIS C8201-1 IEC 60529 EN 50102 IEC 50102 |
Product certifications | UL listed CSA BV |
