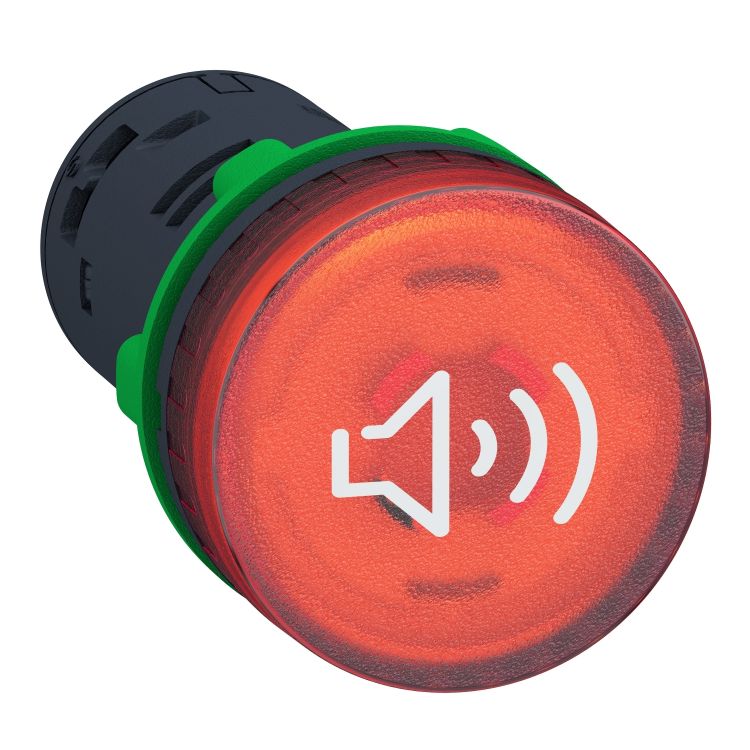

Schneider Signaling Harmony XB5_ Harmony XB5, Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 230…240 V AC_ [XB5KS2M4]

Schneider Signaling Harmony XB5_ Harmony XB5, Illuminated buzzer, plastic, red, Ø22, continuous or intermittent tone, 230…240 V AC_ [XB5KS2M4]

https://www.hsedubai.com/web/image/product.template/63092/image_1920?unique=29e3b48

Industrial Automation / Signaling / Buzzer

227.00 AED 227.0 AED 227.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments._ [XB5KS2M4]

    Specifications

    Main

    Range of productHarmony XB5
    Product or component typeAnnunciator
    Bezel materialPlastic
    Mounting diameter22 mm
    Cap/operator or lens colourRed

    Complementary

    [Us] rated supply voltage230...240 V +/- 10 %
    Supply circuit typeAC
    Supply frequency50/60 Hz
    Current consumption<= 35 mA
    Signalling typeContinuous or intermittent tone
    noise level90 dB 6.8 kHz 0.1 m +/- 10 %
    resistance to high pressure washer9000000 Pa at 80 °C, distance : 0.1 m
    Height29 mm
    Width29 mm
    Depth55 mm
    Net weight0.024 kg

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    IP degree of protectionIP20
    IP66
    IP67
    IP69
    IP69K
    NEMA degree of protectionNEMA 4X
    NEMA 13
    IK degree of protectionIK05
    IK03
    StandardsIEC 60947-5-4
    CSA C22.2 No 14
    IEC 60947-5-1
    EN 60947-1
    IEC 60947-1
    UL 508
    EN 60947-5-1
    EN 60947-5-4
    JIS C8201-5-1
    JIS C8201-1
    IEC 60529
    EN 50102
    IEC 50102
    Product certificationsUL listed
    CSA
    BV
