  3. Schneider Signaling Harmony XB5_ Harmony XB5, Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC_ [XB5KSB]
Public Pricelist

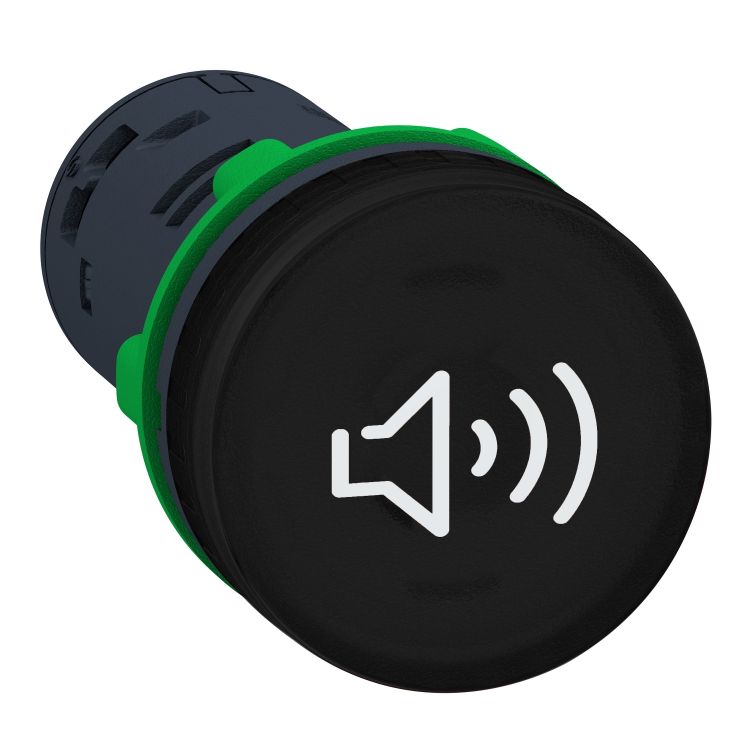

Schneider Signaling Harmony XB5_ Harmony XB5, Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC_ [XB5KSB]

Schneider Signaling Harmony XB5_ Harmony XB5, Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC_ [XB5KSB]

https://www.hsedubai.com/web/image/product.template/63115/image_1920?unique=a5a7115

Industrial Automation / Signaling / Buzzer

170.00 AED 170.0 AED 170.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation._ [XB5KSB]

    Specifications

    Main

    Range of productHarmony XB5
    Product or component typeAnnunciator
    Bezel materialDark grey plastic
    Mounting diameter22 mm
    Head typeStandard
    Cap/operator or lens colourBlack

    Complementary

    [Us] rated supply voltage24 V +/- 10 %
    Supply circuit typeAC/DC
    Supply frequency50/60 Hz
    Current consumption<= 28 mA
    Signalling typeContinuous or intermittent tone
    noise level90 dB 6.8 kHz 0.1 m +/- 10 %
    resistance to high pressure washer9000000 Pa at 80 °C, distance : 0.1 m
    Height29 mm
    Width29 mm
    Depth55 mm
    Net weight0.024 kg

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    electrical shock protection classClass II conforming to IEC 60536
    IP degree of protectionIP20
    IP66
    IP67
    IP69
    IP69K
    NEMA degree of protectionNEMA 4X
    NEMA 13
    IK degree of protectionIK05
    IK03
    StandardsIEC 60947-5-1
    EN 60947-1
    EN 60947-5-1
    EN 60947-5-4
    CSA C22.2 No 14
    IEC 60947-5-4
    IEC 60947-1
    UL 508
    JIS C8201-5-1
    JIS C8201-1
    IEC 60529
    EN 50102
    IEC 50102
    Product certificationsUL listed
    CSA
    BV
