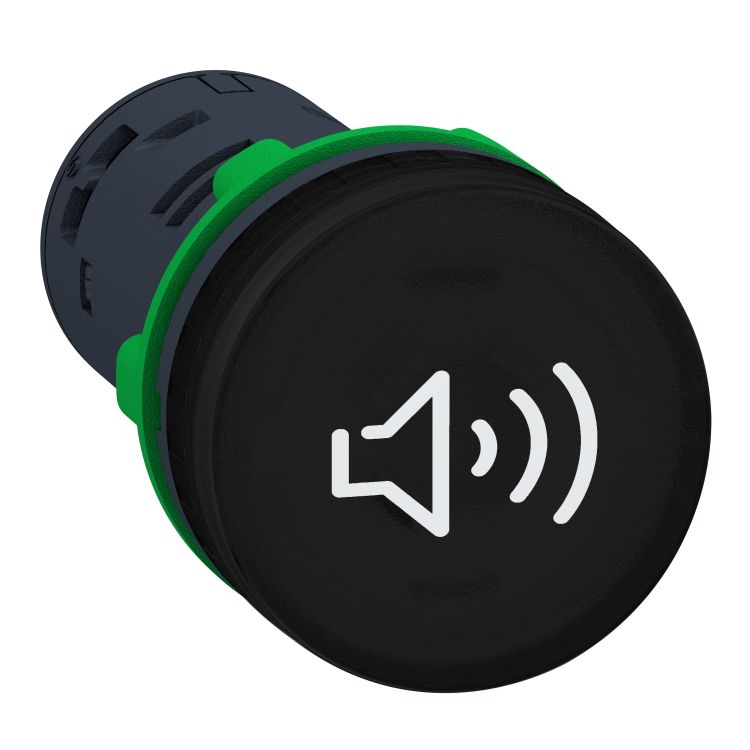

Schneider Signaling Harmony XB5_ Harmony XB5, Complete buzzer, plastic, Ø22, continuous or intermittent tone, 24 V AC/DC_ [XB5KSB]
Industrial Automation / Signaling / Buzzer
This Harmony XB5, annunciator siren is supplied with 24V AC/DC with noise level 85dB. This annuciator siren provides a signaletic sound alarm for your installation. It is easily installed into standard 22mm diameter cut-outs. It has an IP40 protection. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation._ [XB5KSB]
Specifications
Main
| Range of product | Harmony XB5 |
|---|---|
| Product or component type | Annunciator |
| Bezel material | Dark grey plastic |
| Mounting diameter | 22 mm |
| Head type | Standard |
| Cap/operator or lens colour | Black |
Complementary
| [Us] rated supply voltage | 24 V +/- 10 % |
|---|---|
| Supply circuit type | AC/DC |
| Supply frequency | 50/60 Hz |
| Current consumption | <= 28 mA |
| Signalling type | Continuous or intermittent tone |
| noise level | 90 dB 6.8 kHz 0.1 m +/- 10 % |
| resistance to high pressure washer | 9000000 Pa at 80 °C, distance : 0.1 m |
| Height | 29 mm |
| Width | 29 mm |
| Depth | 55 mm |
| Net weight | 0.024 kg |
Environment
| Protective treatment | TH |
|---|---|
| Ambient air temperature for storage | -40…70 °C |
| Ambient air temperature for operation | -40…70 °C |
| overvoltage category | Class II conforming to IEC 60536 |
| electrical shock protection class | Class II conforming to IEC 60536 |
| IP degree of protection | IP20 IP66 IP67 IP69 IP69K |
| NEMA degree of protection | NEMA 4X NEMA 13 |
| IK degree of protection | IK05 IK03 |
| Standards | IEC 60947-5-1 EN 60947-1 EN 60947-5-1 EN 60947-5-4 CSA C22.2 No 14 IEC 60947-5-4 IEC 60947-1 UL 508 JIS C8201-5-1 JIS C8201-1 IEC 60529 EN 50102 IEC 50102 |
| Product certifications | UL listed CSA BV |
