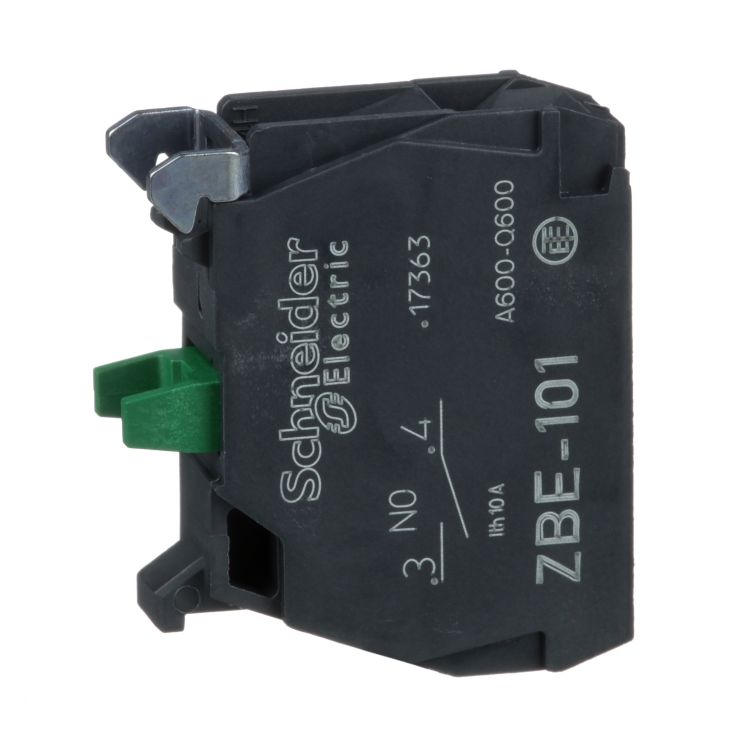

Schneider Signaling Harmony XB5_ single contact block for head Ø22 1NO silver alloy screw clamp terminal_ [ZBE101]

Schneider Signaling Harmony XB5_ single contact block for head Ø22 1NO silver alloy screw clamp terminal_ [ZBE101]

https://www.hsedubai.com/web/image/product.template/63388/image_1920?unique=29e3b48

Industrial Automation / Signaling / Push Button Spare Parts

9.00 AED 9.0 AED 9.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

    This Harmony ZB, single contact block uses screw clamp terminals. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XB4 or XB5 complete push-button units and selector switches via a clip assembly and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance under 6A load allows less maintenance and damage in your installation. It has clear color scheme. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine._ [ZBE101]

    Specifications

    Main

    Range of productHarmony XB5
    Harmony XB4
    Product or component typeContact block
    Device short nameZBE
    Sale per indivisible quantity5
    IP degree of protectionIP20 conforming to IEC 60529
    Contact operationSlow-break
    Contact block typeSingle
    Contacts usageStandard contacts
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1

    Complementary

    Net weight0.011 kg
    contacts type and composition1 NO
    positive openingWithout
    operating travel2.6 mm (NO changing electrical state)
    4.3 mm (total travel)
    operating force2.3 N NO changing electrical state
    Mechanical durability10000000 cycles
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    Contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A conforming to EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN 60947-1
    [Ie] rated operational current3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
    1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN/IEC 60947-5-1 appendix C
    Mounting of blockFront mounting
    electrical composition codeC1 (quantity <= 9)
    C2 (quantity <= 7)
    C3 (quantity <= 6)
    C4 (quantity <= 4)
    C5 (quantity <= 5)
    C6 (quantity <= 3)
    C7 (quantity <= 4)
    C8 (quantity <= 2)
    C9 (quantity <= 3)
    C12 (quantity <= 6)
    M1 (quantity <= 6)
    M2 (quantity <= 4)
    M3 (quantity <= 4)
    M5 (quantity <= 2)
    M6 (quantity <= 2)
    M7 (quantity <= 6)
    M8 (quantity <= 4)
    M9 (quantity <= 2)
    SF1 (quantity <= 3)
    SF2 (quantity <= 2)
    MF1 (quantity <= 2)
    MF2 (quantity <= 2)
    C10 (quantity <= 2)
    M4 (quantity <= 2)
    C13 (quantity <= 1)
    Device presentationBasic element

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-40…70 °C
    StandardsCSA C22.2 No 14
    EN/IEC 60947-5-1
    UL 508
    EN/IEC 60947-1
    JIS C8201-5-1
    EN/IEC 60947-5-4
    JIS C8201-1
    Product certificationsCCC
    UL
    DNV
    GL
    GOST
    LROS (Lloyds register of shipping)
    BV
    CSA
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
