  3. Schneider Signaling Harmony XB7_ Monolithic pilot light, plastic, red, Ø22, integral LED, 24 V AC/DC_ [XB7EV04BP]
Public Pricelist
Schneider Signaling Harmony XB7_ Monolithic pilot light, plastic, red, Ø22, integral LED, 24 V AC/DC_ [XB7EV04BP]

Schneider Signaling Harmony XB7_ Monolithic pilot light, plastic, red, Ø22, integral LED, 24 V AC/DC_ [XB7EV04BP]

https://www.hsedubai.com/web/image/product.template/63270/image_1920?unique=29e3b48

Industrial Automation / Signaling / Pilot Light

14.00 AED 14.0 AED 14.00 AED

Not Available For Sale

    This combination does not exist.

    Contact Us

    Terms and Conditions
    30-day money-back guarantee
    Shipping: usually 2-3 Business Days, once order is placed, actual lead time will be confirmed.

    Share

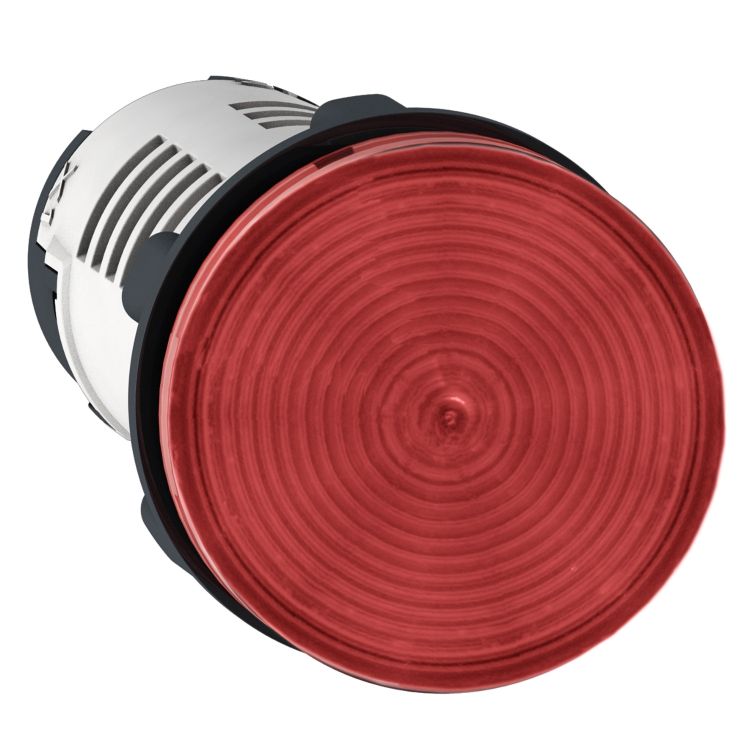

    This Harmony XB7, plain lens monolithic red pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product._ [XB7EV04BP]

    Specifications

    Main

    Range of productHarmony XB7
    Product or component typePilot light
    Device short nameXB7
    Mounting diameter22 mm
    Sale per indivisible quantity10
    Shape of signaling unit headRound
    Cap/operator or lens colourRed
    Light sourceLED
    Bulb baseIntegral LED
    [Us] rated supply voltage24 V AC/DC 50/60 Hz
    Device presentationMonolithic product

    Complementary

    Height29 mm
    Width29 mm
    Depth54 mm
    Terminals description ISO n°1(X1-X2)PL
    Net weight0.02 kg
    device mountingFixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
    fixing center>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
    >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
    fixing modeFixing nut beneath head: 2…2.4 N.m
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    tightening torque0.8…1.2 N.m conforming to EN 60947-1
    shape of screw headCross compatible with JIS No 1 screwdriver
    Cross compatible with Philips no 1 screwdriver
    Cross compatible with pozidriv No 1 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    [Ui] rated insulation voltage250 V (pollution degree 3) conforming to EN/IEC 60947-1
    [Uimp] rated impulse withstand voltage6 kV conforming to EN/IEC 60947-1
    Signalling typeSteady
    supply voltage limits19.2…30 V DC
    21.6…26.4 V AC
    Current consumption20...27 mA
    service life70000 h at rated voltage and 25 °C

    Environment

    Protective treatmentTH
    Ambient air temperature for storage-40…70 °C
    Ambient air temperature for operation-25…70 °C
    overvoltage categoryClass II conforming to IEC 60536
    IP degree of protectionIP20 (rear face) conforming to IEC 60529
    IP65 (front face) conforming to IEC 60529
    NEMA degree of protectionNEMA 4 conforming to UL 50 E
    NEMA 12 conforming to UL 50 E
    StandardsJIS C8201-5-1
    UL 508
    EN/IEC 60947-5-1
    CSA C22.2 No 14
    EN/IEC 60947-1
    JIS C8201-1
    vibration resistance5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
    shock resistance50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    electromagnetic compatibilityDisturbing field emission class B conforming to EN 55011
