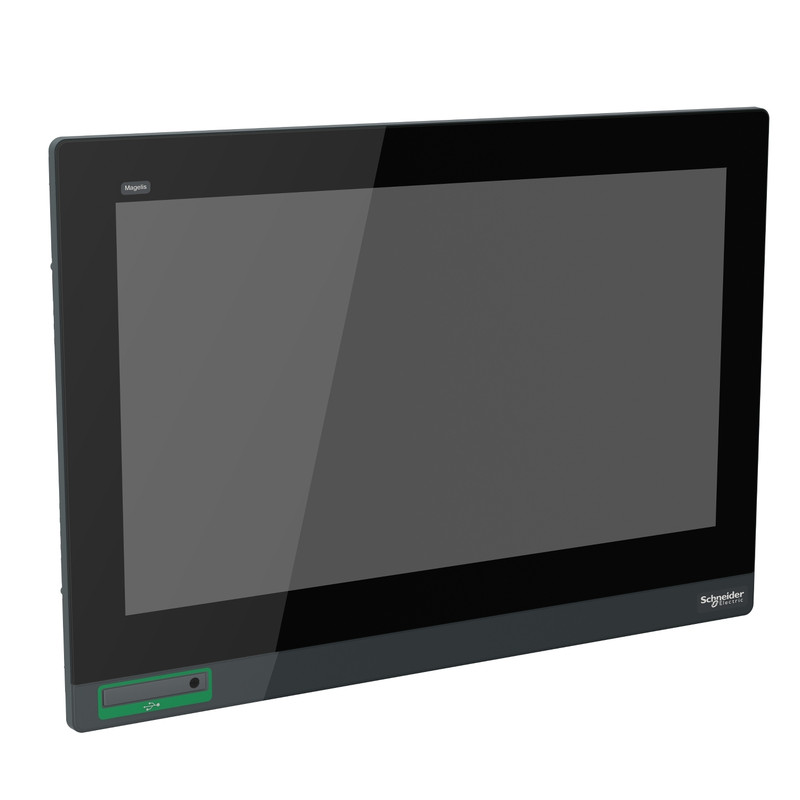

Schneider HMI Magelis GTU_ 19W Touch Smart Display FWXGA_ [HMIDT952]
Industrial Automation / HMI / HMI
The touch screen display features 18.5inch color TFT LCD display, supports 1366 x 768 pixels FWXGA resolution. It is equipped with USB 2.0 type A, USB 2.0 type mini B integrated connections. The touch panel is designed with multi-touch projected capacitive technology (PCT) 50 million cycles. This touch panel screen has 16 million colors with 50,000 hours of backlight lifespan. It is an IP66/IP67 and NEMA 4X rated product. Its dimensions are 483mm (width) x 69mm (depth) x 337mm (height). It weighs 6.8kg. It is suitable for complex machines, food/beverages, water, wastewater, mining, mineral, metal packaging and conveying applications. This product is certified by RCM, CULus, CE and KC. It meets UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142 and IEC 61132-2 standards. This display is compatible with all Premium and Open Harmony GTU Boxes. It supports panel mount for indoor installation. Harmony GTU (formerly known as Magelis GTU) products are universal panels that include smartphone like interface and wireless technology.
Specifications
Main
| Range of product | Harmony GTU |
|---|---|
| Product or component type | Flat screen |
| Terminal type | Touchscreen display |
| [Us] rated supply voltage | 12...24 V DC power supply |
| supply voltage limits | 10.8…28.8 V |
| power consumption in W | 19 W |
| Inrush current | 30 A |
Complementary
| integrated connection type | USB 2.0 type A USB 2.0 type mini B |
|---|---|
| Touchscreen resolution | 2048 x 2048 |
| Pixel resolution | 1366 x 768 |
| Display size | 18.5 inch |
| Aspect ratio | 4:3 |
| display type | Colour TFT LCD |
| Display resolution | 1366 x 768 pixels FWXGA |
| Display colour | 16 million colours |
| backlight lifespan | 50000 hours |
| touch panel | Multi-touch projected capactive technology (PCT) 50000000 cycles |
| Function available | Brightness sensor |
| type of cooling | Natural convection |
| Type of installation | Indoor installation |
| Cut-out dimensions | 465 (+ 1/- 0) x 319 (+ 1/- 0) mm |
| Width | 483 mm |
| Height | 337 mm |
| depth | 69 mm |
| Product weight | 6.8 kg |
Environment
| IP degree of protection | Front panel: IP66 Front panel: IP67 |
|---|---|
| NEMA degree of protection | NEMA 4X front panel |
| standards | UL 508 ANSI/ISA 12-12-01 Class I division 2 CSA C22.2 No 213 CSA C22.2 No 142 IEC 61132-2 |
| product certifications | RCM CULus CE KC |
| ambient air temperature for operation | 0…55 °C conforming to EN 61131-2 |
| ambient air temperature for storage | -20…60 °C |
| relative humidity | 10…90 % non-condensing |
| operating altitude | 2000 m |
| vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2 |
| shock resistance | 147 m/s² conforming to EN/IEC 61131-2 |
| electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 47.7 cm |
| Package 1 Width | 17.3 cm |
| Package 1 Length | 60.1 cm |
| Package 1 Weight | 7.303 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 36.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 27.0 kg |
