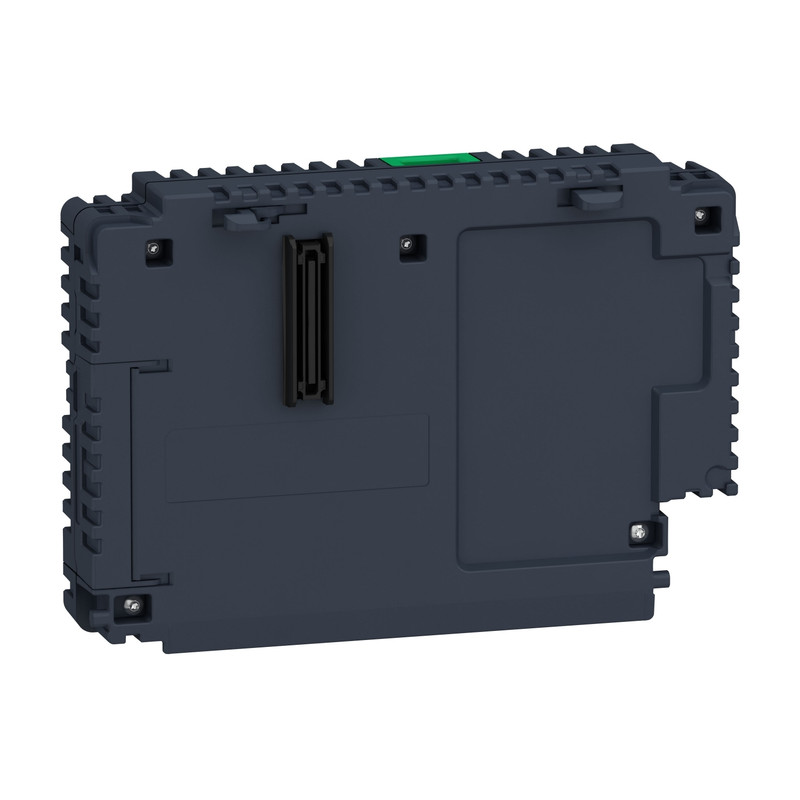

Schneider HMI Magelis GTU_ Base unit, Harmony GTU, Premium BOX for Universal Panel_ [HMIG3U]
Industrial Automation / HMI / HMI
This Magelis GTU premium box module has 256MB of RAM, a RISC CPU, 2 SD card slots, including a 1GB pre-installed card. It also has 2 host + 1 mini-B USB ports, 1 RS232C/RS422/RS485 port, 1 RS485 port, and 1 Ethernet TCP/IP port. This universal premium box is designed for building advanced HMI systems together with Magellis universal GTU panels. It also offers a LED power indicator and a lock button to attach the box module and display. It has a high-performance RISC CPU for low-latency display and automation. Its RS485 and Ethernet ports, ideal for supervising and controlling complex systems and machines.
Specifications
Main
| range of product | Harmony GTU |
|---|---|
| product or component type | Base unit |
| device short name | Premium Box |
| range compatibility | Harmony GTU |
| [Us] rated supply voltage | 12...24 V DC power supply |
Complementary
| integrated connection type | Ethernet TCP/IP with 2 RJ45 COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s Auxiliary port terminal block Expansion unit fieldbus card USB 2.0 port with 2 USB type A USB 2.0 port mini B USB |
|---|---|
| communication port protocol | Modbus Modbus TCP/IP Uni-Telway |
| operating system | Harmony |
| software package | Vijeo Designer run time |
| processor name | CPU RISC 600 MHz |
| data storage equipment | 1 GB SD card |
| port Ethernet | 10BASE-T/100BASE-TX/1000BASE-T |
| memory description | 256 MB RAM internal (2 x 13 mm board) 512 kB NVRAM backup memory |
| type of cooling | Natural convection |
| width | 188 mm |
| Height | 131 mm |
| depth | 45 mm |
| Net weight | 0.9 kg |
Environment
| standards | CSA C22.2 No 142 ANSI/ISA 12-12-01 UL 508 Class I division 2 CSA C22.2 No 213 IEC 61132-2 |
|---|---|
| product certifications | CE CULus ATEX IEC-Ex RCM GL KC CUL EAC ABS BV CCS DNV LR RINA |
| ambient air temperature for operation | 0…60 °C |
| ambient air temperature for storage | -20…60 °C |
| pollution degree | 2 conforming to EN 61131-2 Ed.3 |
| relative humidity | 10…90 % non-condensing |
| operating altitude | 2000 m |
| vibration resistance | 3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2 9.8 m/s² (f = 9…150 Hz) conforming to EN/IEC 61131-2 |
| electromagnetic compatibility | Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 14.267 cm |
| Package 1 Width | 21.441 cm |
| Package 1 Length | 26.48 cm |
| Package 1 Weight | 1.26 kg |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 5762 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 48 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 78144 g |
