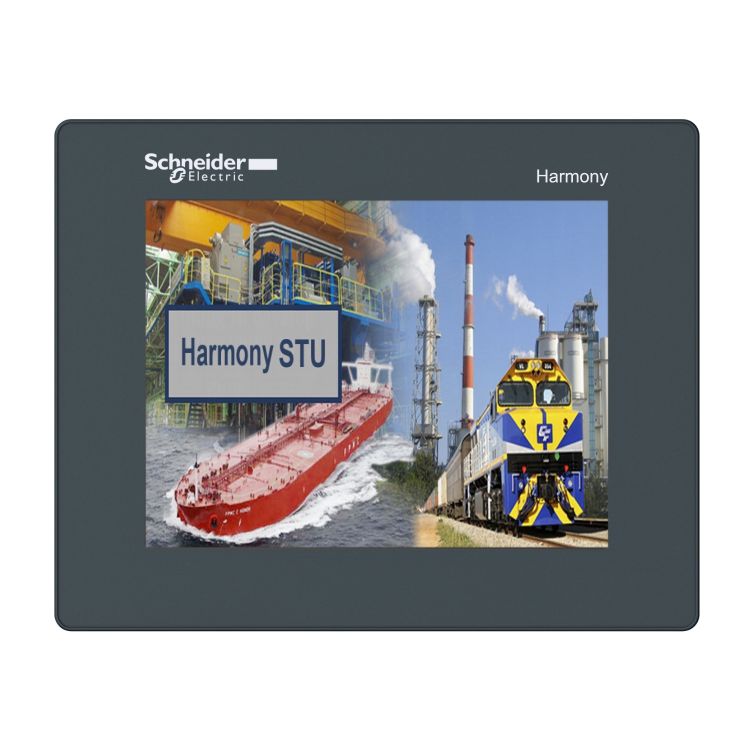

Schneider HMI Magelis STO, STU_ Touch panel screen, Harmony STO & STU, 5.7" Color_ [HMISTU855]
Industrial Automation / HMI / HMI
This Magelis STU small touchscreen operator interface (HMI) is supplied with 24V DC, has a 5.7" color TFT LCD display with, 320 x 240 pixels (QVGA) and 32MB EPROM. It also has 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port and 1 Ethernet TCP/IP port. It is ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays graphic pages with monochrome screen. Thanks to its fixing with a 22mm diameter hole, no panel rectangular cut-out is required. Its RS485 host port makes it ideal to supervise and control simple systems and machines._ [HMISTU855]
Specifications
Main
| range of product | Harmony STO & STU |
|---|---|
| product or component type | Touch panel screen |
| software designation | Vijeo Designer |
| operating system | Harmony |
| processor name | CPU ARM9 |
| display size | 5.7 inch |
|---|---|
| display type | QVGA TFT colour touchscreen |
| display colour | 65536 colours |
| display resolution | 320 x 240 pixels QVGA |
| touch panel | Analogue |
| backlight lifespan | 50000 hours |
| brightness | 16 levels |
| character font | Taiwanese (traditional Chinese) Japanese (ANK, Kanji) Chinese (simplified Chinese) ASCII Korean |
| [Us] rated supply voltage | 24 V DC |
| supply | External source |
| supply voltage limits | 20.4…28.8 V |
| inrush current | 30 A |
| power consumption in W | 6.8 W |
| number of pages | Limited by internal memory capacity |
| processor frequency | 333 MHz |
| memory description | Application memory 16 MB Back up of data 64 kB |
| integrated connection type | 1 USB 2.0 type mini B 1 USB 2.0 type A COM1 serial link - female RJ45 - RS232C/RS485 (rate: <= 115.2 kbits/s) power supply - removable screw terminal block 1 Ethernet - RJ45 |
| realtime clock | Access to the PLC real-time clock |
| downloadable protocols | Uni-TE Modbus TCP/IP Third party protocols Modbus |
| fixing mode | Ø 22 mm hole |
| enclosure material | PC/PBT and PAA |
| Marking | With Schneider logo CE |
| Height | 129.15 mm |
| width | 163 mm |
| Depth | 56.5 mm |
| immunity to microbreaks | 7 ms |
|---|---|
| Standards | UL 1604 FCC Class A IEC 61000-6-2 EN 61131-2 UL 508 |
| product certifications | UL class 1 Div2 T4A ou T5 C-Tick cULus Marine UKCA |
| Ambient air temperature for operation | 0…50 °C |
| Ambient air temperature for storage | -20…60 °C |
| relative humidity | 0…85 % without condensation |
| Operating altitude | <= 2000 m |
| IP degree of protection | IP20 (rear panel) conforming to IEC 60529 IP65 (front panel) conforming to IEC 60529 |
| NEMA degree of protection | NEMA 4X front panel (indoor use) |
| shock resistance | 15 gn for 11 ms conforming to IEC 60068-2-27 |
| vibration resistance | +/- 3.5 mm (f = 5…9 Hz) conforming to IEC 60068-2-6 1 gn (f = 9…150 Hz) conforming to IEC 60068-2-6 |
| resistance to electromagnetic fields | 10 V/m conforming to IEC 61000-4-3 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.961 cm |
| Package 1 Width | 18.532 cm |
| Package 1 Length | 26.974 cm |
| Package 1 Weight | 865 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Height | 30 cm |
| Package 2 Width | 30 cm |
| Package 2 Length | 40 cm |
| Package 2 Weight | 7436 g |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 192 |
| Package 3 Height | 95 cm |
| Package 3 Width | 80 cm |
| Package 3 Length | 120 cm |
| Package 3 Weight | 187464 g |
