Schneider MD10-SR Damper Actuator[MD10SR-24T]
Industrial Automation / Actuator / Valve Actuator
MD10SR-24T

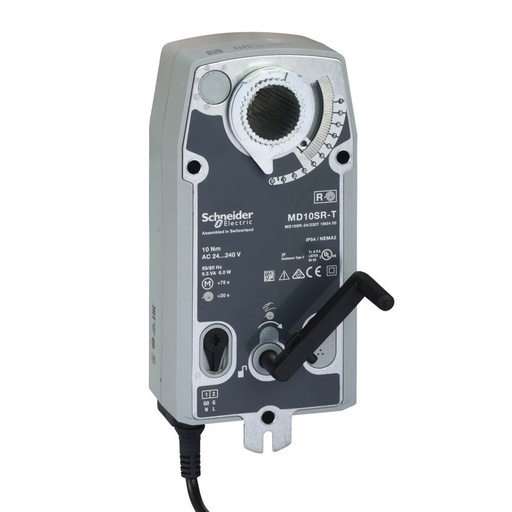

The MD10 SR is a compact spring return damper actuator for the operation of ventilation dampers up to 2m² in building service installations. Power Supply: 24 Vac/Vdc. On/Off Control Signal. Torque: 1 Nm, IP 54 Enclosure rating. III Extra low Voltage. Adjustable angle of rotation: …Max 95°.
Specifications
Main
| Product or component type | Actuator |
|---|---|
| Actuator type | Electric |
| Actuator product series | MD10SR |
| Actuator model | MD10 SR-24TS |
| Product destination | Dampers |
| Actuator | Rotary |
| control type | Automatic reset |
| Switch function | 2 SPDT |
| rated supply voltage | 24 V AC/DC |
| Transformer rated power in VA | 8.5 VA |
| Power consumption in W | 6 W |
| Power consumption in VA | 8.5 VA AC |
| Hold-in power consumption in W | 2.5 W |
| Power loss return | Spring return |
| Control signal | 2-position (on/off) |
| Electrical insulation class | Class III |
| Tightening torque | 10 lb.in 1.1 N.m |
| Position indicator | Visual indicator |
| Additional features | Dual lead cable |
| Lead length | 1 m |
| Spring return timing | 75 s |
| Actuator rotation | 95 ° |
| Rotational range adjustment | 95° maximum (limited by an adjustable end stop) |
| IP degree of protection | IP54 |
| Ambient air temperature for operation | -30…50 °C |
| Relative humidity | 0…95 % RH, non-condensing |
| Ambient air temperature for storage | -40…80 °C |
| Targeted region | Europe Asia Pacific. Australia. |
Packing Units
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.5 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 29.0 cm |
| Package 1 Weight | 2.1 kg |
