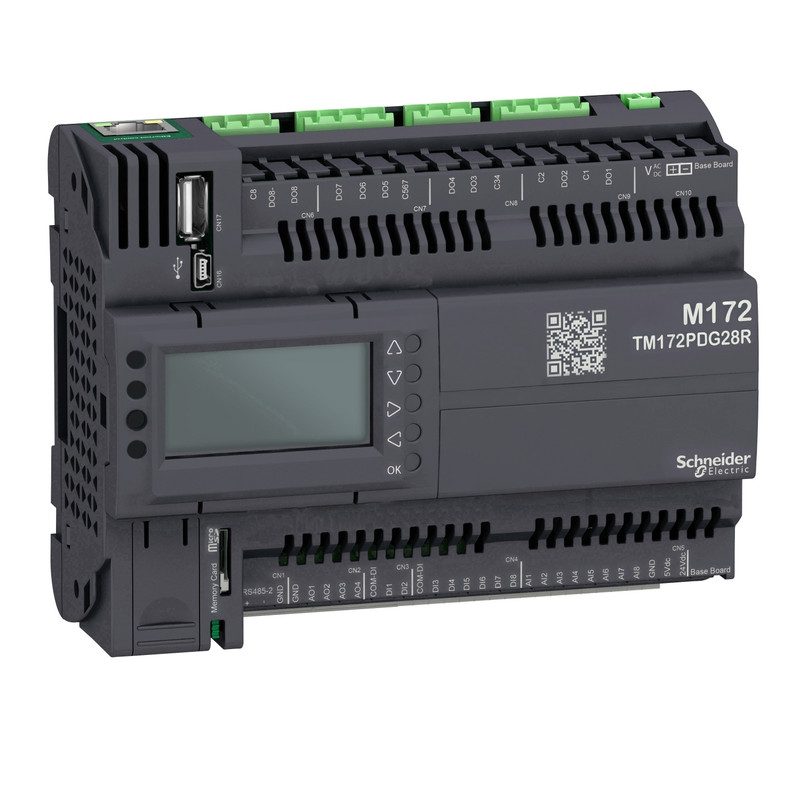

![Schneider PLC Modicon M171/M172 [TM172PDG28R]](/web/image/product.product/42487/image_1024/%5BTM172PDG28R%5D%20Schneider%20PLC%20Modicon%20M171-M172%20%5BTM172PDG28R%5D?unique=b0b0db7)
This product is part of the Modicon M171/M172 range, an offer of programmable controllers for HVAC solutions. This programmable controller offers 8 discrete inputs with sink or source (positive/negative) discrete logic. It is a module with discrete input voltage of 24V AC/DC, 2.5mA. It offers 8 configurable by pair analogue input and 2 analogue outputs of 4mA to 20mA, ±0V to ±10V. It features 3 LEDs for programmable and 1 LED for power signaling. It is an IP20 rated product. Its dimensions are 144mm (width) x 60.5mm (depth) x 110mm (height). It weighs 0.3kg. The main application of this module is HVAC control. This product is certified by CE, EAC, CSA and CURus. It meets EN/IEC 60730 standard. It is suitable for panel mounting with accessory. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Specifications
Main
| range of product | Modicon M171/M172 |
|---|---|
| product or component type | Programmable controllers |
| product specific application | HVAC and pumping solution |
| variant | Programmable |
| Total inputs/outputs | 28 |
| discrete input number | 8 |
| discrete output number | 1 for relay outputs SPDT with independent common 3 for relay outputs SPST with same common 2 for relay outputs SPST with same common 2 for relay outputs SPST with independent common |
| discrete output current | 1 A for relay SPDT 3 A for relay SPST |
| analogue input number | 8 configurable by pair |
| analogue output number | 2 voltage, range: 0...10 V 2 voltage/current, range: 4...20 mA or 0...10 V or PWM (2 kHz) |
| number of port | 1 CAN port - screw terminal block 1 USB type A - USB type A female 1 USB type mini B - USB device port Mini-B 2 RS485 - screw terminal block (Modbus serial link or BACnet MS/TP) 1 Ethernet - RJ45 (Modbus TCP and BACnet IP with webserver) |
|---|---|
| input/output number | 8 digital input(s) 8 analog input(s) 4 analog output(s) 8 digital output(s) |
| discrete input logic | Sink or source (positive/negative) |
| discrete input voltage | 24 V AC/DC |
| discrete input current | 2.5 mA |
| input impedance | 20 kOhm |
| analogue input type | Impedance 0...1500 hOhm impedance 0...300 daOhm NTC temperature probe - 50...110 °C - resolution: 0.1 °C (extended) voltage 0...10 V NTC temperature probe - 40...150 °C - resolution: 0.1 °C current 0...20 mA/4...20 mA PTC temperature probe - 55...150 °C - resolution: 0.1 °C voltage 0...5 V (absolute or ratiometric) Pt 1000 temperature probe - 200...850 °C - resolution: 0.1 °C |
| sensor power supply | 5 V DC at 50 mA supplied by the controller 24 V DC at 150 mA supplied by the controller |
| [Us] rated supply voltage | 24 V +/- 10 % AC 20...38 V DC |
| power consumption in W | 15 W at 24 V AC/DC |
| realtime clock | Built-in clock at -20…60 °C |
| display type | Backlit LCD - 128 x 64 pixels |
| overvoltage category | II |
| local signalling | 1 LED (red) for programmable 1 LED (yellow) for programmable 1 LED (green) for programmable 1 LED (green) for power |
| mounting support | Panel mounting with accessory DIN rail |
| width | 144 mm |
| Height | 110 mm |
| Depth | 60.5 mm |
| Net weight | 0.3 kg |
| directives | 86/188/EEC - physical agents (noise) directive 2006/95/EC - low voltage directive |
|---|---|
| Standards | EN/IEC 60730 |
| product certifications | EAC (pending) CSA (pending) CE cURus (pending) |
| ambient air temperature for operation | -20…60 °C conforming to UL 60730-1 -20…65 °C with derating conforming to UL 60730-1 |
| Ambient air temperature for storage | -30…70 °C |
| relative humidity | 5…95 % non-condensing |
| IP degree of protection | IP20 |
| pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.5 cm |
| Package 1 Width | 9.0 cm |
| Package 1 Length | 18.6 cm |
| Package 1 Weight | 397.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.65 kg |
