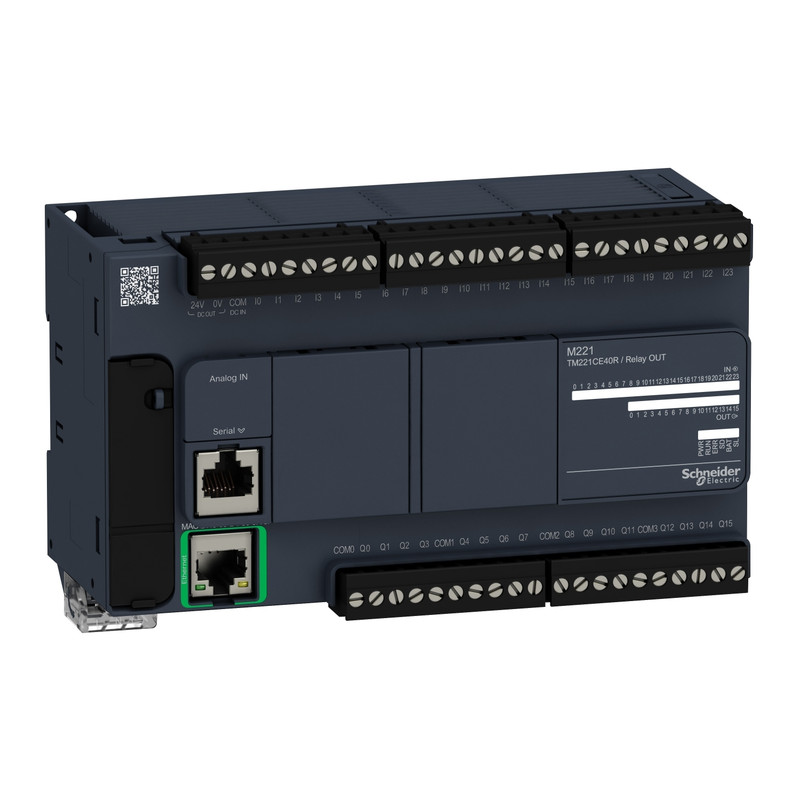

Schneider PLC Modicon M241_ controller M221 40 IO relay Ethernet_ [TM221CE40R]
Industrial Automation / PLC / Compact PLC
This product is Partsof the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This logic controller provides 24 discrete inputs and 16 relay ethernet outputs with 10bit input resolution, normally opened relay output. It is a Modicon logic controller with a rated supply voltage of 100V to 240V AC, an output voltage of 5V to 125V DC, 5V to 250V AC and an output current of 2A with sink or source input logic. This product requires minimal installation and offers tremendous versatility. Integrated connections are USB port with mini B USB 2.0 connector, non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface and ethernet with RJ45 connector. It is a Modicon M221 controller with a network frequency of 50/60Hz, 256KB for internal variables RAM, user application and data RAM, a built-in flash memory of 256KB and a SD card memory capacity of 2GB. It is an IP20 rated product. Its dimensions are 160mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.456kg. This product is certified by CE, IACS E10, RCM, ABS, LR, DNV-GL, CSA, EAC and CULus. It meets EN/IEC 60664-1, EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. It supports DIN rail mount. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks_ [TM221CE40R]
Specifications
Main
| range of product | Modicon M221 |
|---|---|
| product or component type | Logic controller |
| [Us] rated supply voltage | 100...240 V AC |
| discrete input number | 24, discrete input conforming to IEC 61131-2 Type 1 |
| analogue input number | 2 at 0...10 V |
| discrete output type | Relay normally open |
| discrete output number | 16 relay |
| discrete output voltage | 5...125 V DC 5...250 V AC |
| discrete output current | 2 A |
Complementary
| discrete I/O number | 40 |
|---|---|
| maximum number of I/O expansion module | 7 for relay output |
| supply voltage limits | 85…264 V |
| network frequency | 50/60 Hz |
| inrush current | 40 A |
| maximum power consumption in VA | 70 VA at 100...240 V with max number of I/O expansion module 41 VA at 100...240 V without I/O expansion module |
| power supply output current | 0.52 A 5 V for expansion bus 0.24 A 24 V for expansion bus |
| discrete input logic | Sink or source (positive/negative) |
| discrete input voltage | 24 V |
| discrete input voltage type | DC |
| analogue input resolution | 10 bits |
| LSB value | 10 mV |
| conversion time | 1 ms per channel + 1 controller cycle time for analogue input analog input |
| permitted overload on inputs | +/- 30 V DC for 5 min (maximum) for analog input +/- 13 V DC (permanent) for analog input |
| voltage state 1 guaranteed | >= 15 V for input |
| voltage state 0 guaranteed | <= 5 V for input |
| discrete input current | 7 mA for discrete input 5 mA for fast input |
| input impedance | 3.4 kOhm for discrete input 100 kOhm for analog input 4.9 kOhm for fast input |
| response time | 35 µs turn-off, I2...I5 terminal(s) for input 10 ms turn-on for output 10 ms turn-off for output 5 µs turn-on, I0, I1, I6, I7 terminal(s) for fast input 35 µs turn-on, other terminals terminal(s) for input 5 µs turn-off, I0, I1, I6, I7 terminal(s) for fast input 100 µs turn-off, other terminals terminal(s) for input |
| configurable filtering time | 0 ms for input 3 ms for input 12 ms for input |
| output voltage limits | 125 V DC 277 V AC |
| maximum current per output common | 7 A |
| absolute accuracy error | +/- 1 % of full scale for analog input |
| electrical durability | 100000 cycles AC-12, 120 V, 240 VA, resistive 100000 cycles AC-12, 240 V, 480 VA, resistive 300000 cycles AC-12, 120 V, 80 VA, resistive 300000 cycles AC-12, 240 V, 160 VA, resistive 100000 cycles AC-15, cos phi = 0.35, 120 V, 60 VA, inductive 100000 cycles AC-15, cos phi = 0.35, 240 V, 120 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 120 V, 18 VA, inductive 300000 cycles AC-15, cos phi = 0.35, 240 V, 36 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 120 V, 120 VA, inductive 100000 cycles AC-14, cos phi = 0.7, 240 V, 240 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 120 V, 36 VA, inductive 300000 cycles AC-14, cos phi = 0.7, 240 V, 72 VA, inductive 100000 cycles DC-12, 24 V, 48 W, resistive 300000 cycles DC-12, 24 V, 16 W, resistive 100000 cycles DC-13, 24 V, 24 W, inductive (L/R = 7 ms) 300000 cycles DC-13, 24 V, 7.2 W, inductive (L/R = 7 ms) |
| switching frequency | 20 switching operations/minute with maximum load |
| mechanical durability | 20000000 cycles for relay output |
| minimum load | 1 mA at 5 V DC for relay output |
| protection type | Without protection at 5 A |
| reset time | 1 s |
| memory capacity | 256 kB for user application and data RAM with 10000 instructions 256 kB for internal variables RAM |
| data backed up | 256 kB built-in flash memory for backup of application and data |
| data storage equipment | 2 GB SD card (optional) |
| battery type | BR2032 lithium non-rechargeable, battery life: 4 year(s) |
| backup time | 1 year at 25 °C (by interruption of power supply) |
| execution time for 1 KInstruction | 0.3 ms for event and periodic task |
| execution time per instruction | 0.2 µs Boolean |
| exct time for event task | 60 µs response time |
| maximum size of object areas | 8000 %MW memory words 255 %TM timers 512 %KW constant words 255 %C counters 512 %M memory bits |
| realtime clock | With |
| clock drift | <= 30 s/month at 25 °C |
| regulation loop | Adjustable PID regulator up to 14 simultaneous loops |
| counting input number | 4 fast input (HSC mode) at 100 kHz 32 bits |
| counter function | Single phase A/B Pulse/direction |
| integrated connection type | USB port with mini B USB 2.0 connector Non isolated serial link serial 1 with RJ45 connector and RS232/RS485 interface Ethernet with RJ45 connector |
| supply | (Serial)serial link supply: 5 V, <200 mA |
| transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 15 m for RS485 1.2...115.2 kbit/s (115.2 kbit/s by default) for bus length of 3 m for RS232 480 Mbit/s for USB |
| communication port protocol | USB port: USB - SoMachine-Network Non isolated serial link: Modbus master/slave - RTU/ASCII or SoMachine-Network Ethernet |
| port Ethernet | 10BASE-T/100BASE-TX 1 port with 100 m copper cable |
| communication service | DHCP client Modbus TCP client Ethernet/IP adapter Modbus TCP server Modbus TCP slave device |
| local signalling | 1 LED (green) for PWR 1 LED (green) for RUN 1 LED (red) for module error (ERR) 1 LED (green) for SD card access (SD) 1 LED (red) for BAT 1 LED per channel (green) for I/O state 1 LED (green) for SL Ethernet network activity (green) for ACT Ethernet network link (yellow) for Link (Link Status) |
| electrical connection | Removable screw terminal block for inputs removable screw terminal block for outputs terminal block, 3 terminal(s) for connecting the 24 V DC power supply connector, 4 terminal(s) for analogue inputs Mini B USB 2.0 connector for a programming terminal |
| maximum cable distance between devices | Shielded cable: <10 m for fast input Unshielded cable: <30 m for output Unshielded cable: <30 m for digital input Unshielded cable: <1 m for analog input |
| insulation | Between input and internal logic at 500 V AC Non-insulated between analogue input and internal logic Non-insulated between analogue inputs Between supply and ground at 1500 V AC Between sensor power supply and ground at 500 V AC Between input and ground at 500 V AC Between output and ground at 1500 V AC Between supply and internal logic at 2300 V AC Between sensor power supply and internal logic at 500 V AC Between output and internal logic at 2300 V AC Between Ethernet terminal and internal logic at 500 V AC Between supply and sensor power supply at 2300 V AC |
| Marking | CE |
| sensor power supply | 24 V DC at 250 mA supplied by the controller |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 70 mm |
| width | 160 mm |
| Net weight | 0.456 kg |
Environment
| Standards | EN/IEC 60664-1 EN/IEC 61131-2 EN/IEC 61010-2-201 |
|---|---|
| product certifications | DNV-GL EAC ABS cULus LR RCM CSA IACS E10 |
| environmental characteristic | Ordinary and hazardous location |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 2 kV (power lines) conforming to EN/IEC 61000-4-4 2 kV (relay output) conforming to EN/IEC 61000-4-4 1 kV (I/O) conforming to EN/IEC 61000-4-4 1 kV (Ethernet line) conforming to EN/IEC 61000-4-4 1 kV (serial link) conforming to EN/IEC 61000-4-4 |
| surge withstand | 2 kV power lines (AC) common mode conforming to EN/IEC 61000-4-5 2 kV relay output common mode conforming to EN/IEC 61000-4-5 1 kV I/O common mode conforming to EN/IEC 61000-4-5 1 kV shielded cable common mode conforming to EN/IEC 61000-4-5 0.5 kV power lines (DC) differential mode conforming to EN/IEC 61000-4-5 1 kV power lines (AC) differential mode conforming to EN/IEC 61000-4-5 1 kV relay output differential mode conforming to EN/IEC 61000-4-5 0.5 kV power lines (DC) common mode conforming to EN/IEC 61000-4-5 |
| resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V 0.1...80 MHz conforming to Marine specification (LR, ABS, DNV, GL) 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Conducted emissions - test level: 79 dBμV/m QP/66 dBμV/m AV ( power lines (AC)) at 0.15…0.5 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 73 dBμV/m QP/60 dBμV/m AV ( power lines (AC)) at 0.5…300 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 120...69 dBµV/m QP ( power lines) at 10…150 kHz conforming to EN/IEC 55011 Conducted emissions - test level: 63 dBμV/m QP ( power lines) at 1.5…30 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Conducted emissions - test level: 79...63 dBμV/m QP ( power lines) at 150…1500 kHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 200…1000 MHz conforming to EN/IEC 55011 |
| immunity to microbreaks | 10 ms |
| ambient air temperature for operation | -10…55 °C (horizontal installation) -10…35 °C (vertical installation) |
| Ambient air temperature for storage | -25…70 °C |
| relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| pollution degree | <= 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on symmetrical rail 3.5 mm at 5…8.4 Hz on panel mounting 1 gn at 8.4…150 Hz on symmetrical rail 1 gn at 8.4…150 Hz on panel mounting |
| shock resistance | 98 m/s² for 11 ms |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 11.09 cm |
| Package 1 Width | 14.183 cm |
| Package 1 Length | 21.085 cm |
| Package 1 Weight | 830.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 29.2 cm |
| Package 2 Width | 39.8 cm |
| Package 2 Length | 57.9 cm |
| Package 2 Weight | 11.04 kg |
