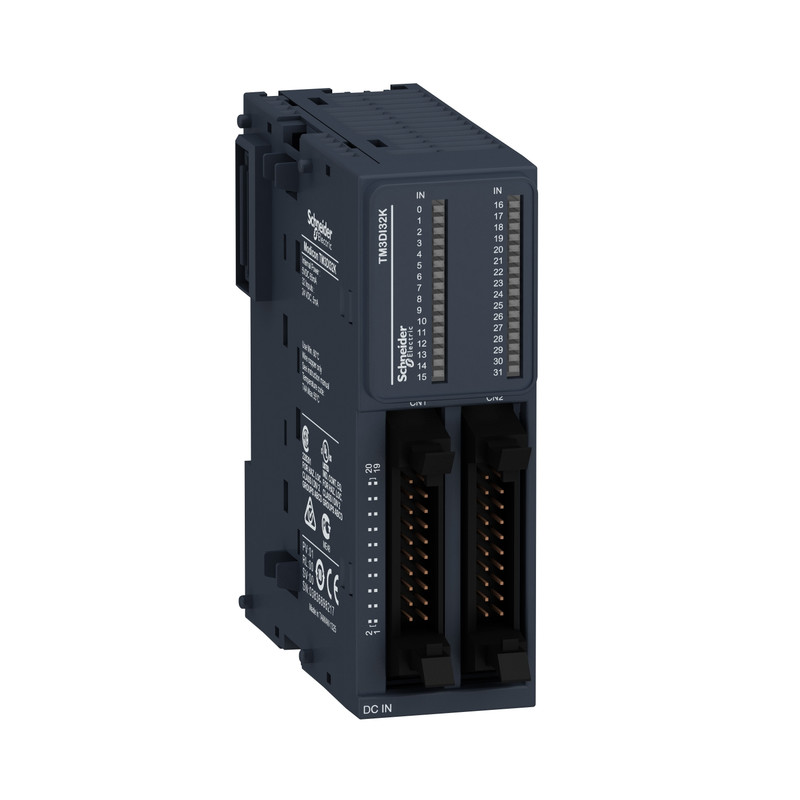

Schneider PLC Modicon M241_ module TM3 - 32 inputs HE10_ [TM3DI32K]
Industrial Automation / PLC / Compact PLC
This digital input module is Partsof the Modicon TM3 range of I/O expansion modules for Modicon controllers. It consists in 32 logic inputs and it is supplied with 24V dc. It is equipped with one removable HE10 connector and can be mounted on a symmetrical DIN rail 35 mm. This digital I/O module complement the embedded I/O on Modicon M221, M221 Book, M241 and M251 logic controllers. There is an insulation between input and internal logic at 500V AC and non-insulation between inputs. It is furnished with HE-10 connector inputs for electrical connection. It is an IP20 rated product. Its dimensions are 23.6mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.11kg. This product is certified by CE. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This module is compatible with Modicon M262, Modicon M241, Modicon M251 and Modicon M221 logic controller. It supports top hat type TH35-15, top hat type TH35-7.5 rail conforming to IEC 60715 and plate or panel with fixing kit mount. Modicon TM3 expansion modules have been designed with a simple interlocking assembly mechanism. A bus expansion connector is used to distribute data and the power supply when assembling the Modicon TM3 modules with logic controllers. Boost the performance of your controller with the Modicon TM3 I/O system specially designed for the Modicon M221, M241 and M251 logic controllers._ [TM3DI32K]
Specifications
Main
| Range of product | Modicon TM3 |
|---|---|
| Product or component type | Discrete input module |
| Range compatibility | Modicon M241 Modicon M251 Modicon M221 Modicon M262 |
| discrete input number | 32 for input conforming to IEC 61131-2 Type 1 |
| discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| discrete input current | 5 mA for input |
Complementary
| Discrete I/O number | 32 |
|---|---|
| current consumption | 5 mA at 5 V DC via bus connector (at state off) 0 mA at 24 V DC via bus connector (at state on) 0 mA at 24 V DC via bus connector (at state off) 65 mA at 5 V DC via bus connector (at state on) |
| Discrete input voltage type | DC |
| voltage state 1 guaranteed | 15...28.8 V for input |
| current state 1 guaranteed | >= 2.5 mA (input) |
| voltage state 0 guaranteed | 0...5 V for input |
| current state 0 guaranteed | <= 1 mA (input) |
| input impedance | 4.4 kOhm |
| response time | 4 ms (turn-on) 4 ms (turn-off) |
| local signalling | 1 LED per channel (green) for input status |
| electrical connection | HE-10 connectorfor inputs |
| maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| insulation | Between input and internal logic at 500 V AC Non-insulated between inputs |
| Marking | CE |
| mounting support | Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit |
| Height | 90 mm |
| Depth | 81.3 mm |
| Width | 33.5 mm |
| Product weight | 0.1 kg |
Environment
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 |
|---|---|
| Product certifications | CULus C-Tick |
| resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 4 kV on contact conforming to EN/IEC 61000-4-2 |
| resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 |
| resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) |
| electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 |
| ambient air temperature for operation | -10…35 °C vertical installation -10…55 °C horizontal installation |
| Ambient air temperature for storage | -25…70 °C |
| relative humidity | 10…95 %, without condensation (in operation) 10…95 %, without condensation (in storage) |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel |
| shock resistance | 15 gn for 11 ms |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 7.639 cm |
| Package 1 Width | 10.55 cm |
| Package 1 Length | 12.87 cm |
| Package 1 Weight | 220.0 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 42 |
| Package 2 Height | 29.6 cm |
| Package 2 Width | 40.3 cm |
| Package 2 Length | 55.9 cm |
| Package 2 Weight | 10.431 kg |
