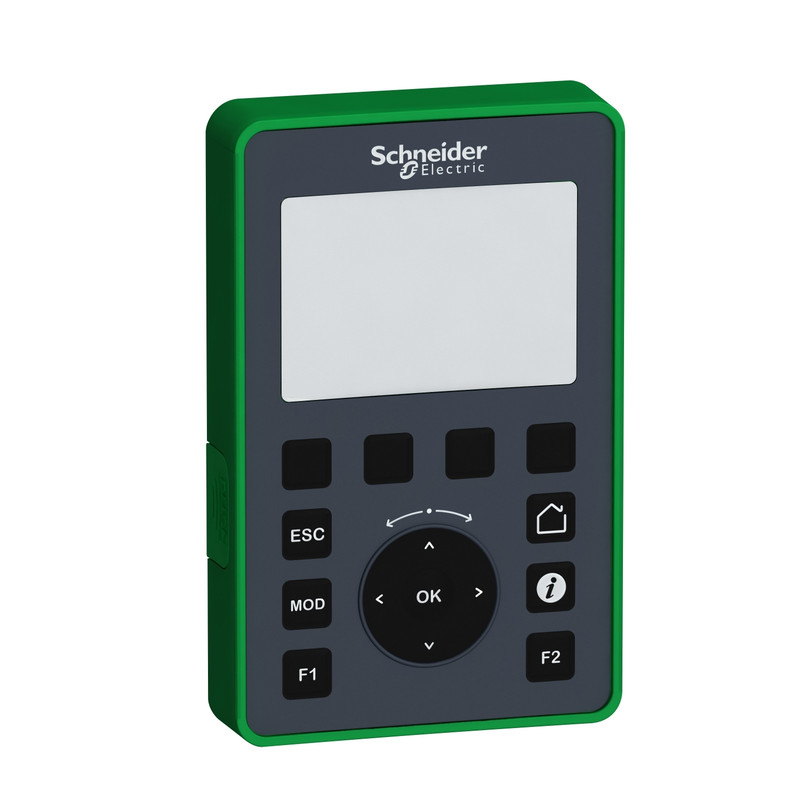

Schneider PLC Modicon M241_ graphic display unit - 240 x 160 pixels_ [TMH2GDB]
Industrial Automation / PLC / Compact PLC Accessories
This product is Partsof the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This graphic display unit features a backlit colour STN LCD display. The display supports 240 x 160 pixels of resolution with monochrome display colour. The unit is equipped with RJ45 for communication and power supply. The keypad contains 4 configurable keys and 6 keys for navigation. It is an IP20 and IP65 rated product. Its dimensions are 80mm (Width) x 63mm (Depth) x 126mm (Height). It weighs 0.17kg. This product is certified by CE and CULus. It meets EN/IEC 61131-2 and EN/IEC 61010-2-201 standards. This display is compatible with Modicon M221 logic controller. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks_ [TMH2GDB]
Specifications
Main
| Range of product | Modicon M221 |
|---|---|
| Product or component type | Graphic display |
| Range compatibility | Modicon M221 |
| current consumption | 40 mA at 5 V DC via RJ45 connector |
| Power consumption in W | 1 W |
| Display type | Backlit colour STN LCD |
| Display colour | Monochrome |
| Display resolution | 240 x 160 pixels |
| number of key | 4 configurable 6 for navigation |
Complementary
| Standards | EN/IEC 61131-2 EN/IEC 61010-2-201 |
|---|---|
| Product certifications | CULus |
| Marking | CE |
| mounting location | Front cabinet diameter: 22 mm hole Bottom of cabinet diameter: 22 mm hole, connection via mounting accessory |
| connector type | RJ45 for communication and power supply |
| Height | 126 mm |
| Width | 80 mm |
| Depth | 63 mm |
| Product weight | 0.17 kg |
Environment
| Ambient air temperature for operation | -15…50 °C |
|---|---|
| Operating altitude | 0...2000 m |
| Storage altitude | 0…2000 m |
| Environmental characteristic | Corrosive gas free |
| relative humidity | 95 %, non-condensing (transport) 95 %, non-condensing (storage) 95 %, non-condensing (operation) |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP65 front face: IP20 back part: |
| pollution degree | 2 conforming to EN/IEC 60664-1 |
| vibration resistance | 1.5 mm (f= 3…150 Hz) 2 gn |
| shock resistance | 15 gn for 11 ms |
| electromagnetic compatibility | Electrostatic discharge - test level: 8 kV (air discharge) conforming to EN/IEC 61000-4-2 Electrostatic discharge - test level: 4 kV (contact discharge) conforming to EN/IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...1 GHz) conforming to EN/IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m (1.4...2 GHz) conforming to EN/IEC 61000-4-3 Radiated radio-frequency electromagnetic field immunity test - test level: 1 V/m (2...3 GHz) conforming to EN/IEC 61000-4-3 Magnetic field at power frequency - test level: 30 A/m (50/60 Hz) conforming to EN/IEC 61000-4-8 Electrical fast transient/burst immunity test - test level: 1 kV conforming to EN/IEC 61000-4-4 Surge immunity test - test level: 0.5 kV (common mode) conforming to EN/IEC 61000-4-5 Surge immunity test - test level: 0.5 kV (differential mode) conforming to EN/IEC 61000-4-5 Conducted RF disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to EN/IEC 61000-4-6 Disturbing field emission - test level: 10...150 kHz (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 120...69 dBµV/m QP (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 150...1500 kHz (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 1.5...30 kHz (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 30...230 MHz class A (10 m) conforming to EN/IEC 55011 Disturbing field emission - test level: 230 MHz...1 GHZ class A (10 m) conforming to EN/IEC 55011 Disturbing field emission - test level: 79...63 dBμV/m QP (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 63 dBμV/m QP (power lines (DC)) conforming to EN/IEC 55011 Disturbing field emission - test level: 40 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 Disturbing field emission - test level: 47 dBμV/m QP class A (10 m) conforming to EN/IEC 55011 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.3 cm |
| Package 1 Width | 8.0 cm |
| Package 1 Length | 12.6 cm |
| Package 1 Weight | 164.0 g |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 4.375 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 96 |
| Package 3 Height | 70.0 cm |
| Package 3 Width | 60.0 cm |
| Package 3 Length | 80.0 cm |
| Package 3 Weight | 15.744 kg |
