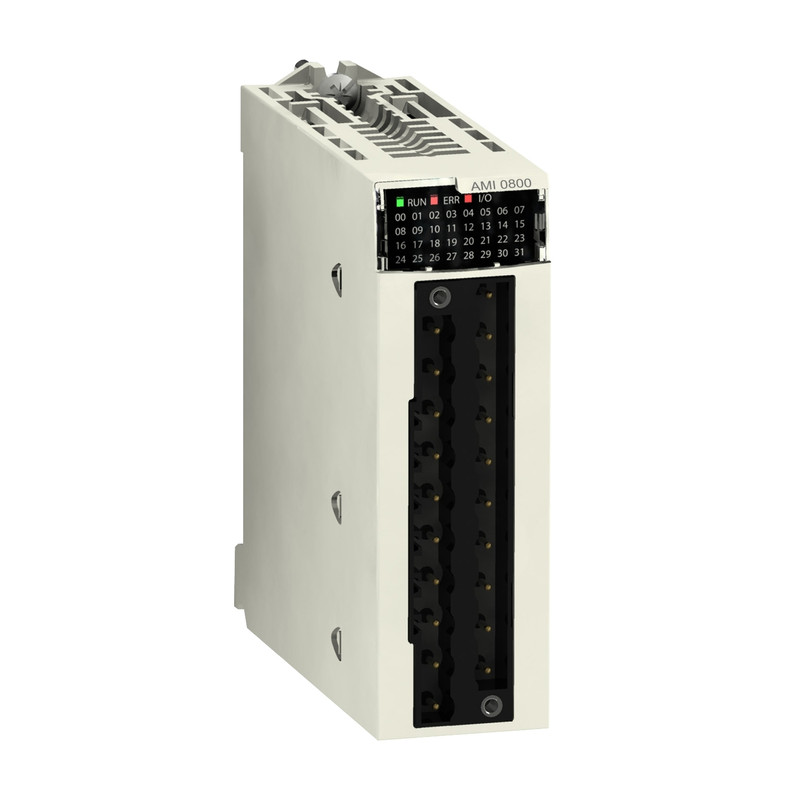

Schneider PLC Modicon M340_ isolated analog input module X80 - 8 inputs - high speed_ [BMXAMI0810]
Industrial Automation / PLC / Modular PLC
This analog isolated input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 8 input channels. This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. It occupies a single slot on the rack and it has a case which provides IP 20 protection of the electronics. This product is IP20 rated and offers 903120 hours of MTBF. This analog module has a weight of 0.175kg and dimensions of 32x100x86mm. This module meets the needs of applications in Transportation, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Power generation, Energies and Chemicals, and Data centers. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 28-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Analog input module |
| electrical connection | 28 ways 1 connector |
| Isolation between channels | Isolated |
| input level | High level |
| analogue input number | 8 |
| analogue input type | Current +/- 20 mA Current 0...20 mA Current 4...20 mA Voltage +/- 10 V Voltage +/- 5 V Voltage 0...10 V Voltage 0...5 V Voltage 1...5 V |
Complementary
| analog/digital conversion | 16 bits |
|---|---|
| analogue input resolution | 15 bits + sign |
| permitted overload on inputs | +/- 30 mA 0...20 mA +/- 30 mA 4...20 mA +/- 30 V +/- 10 V +/- 30 V +/- 5 V +/- 30 V 0...10 V +/- 30 V 0...5 V +/- 30 V 1...5 V +/- 30 mA +/- 20 mA |
| input impedance | 10 MOhm in voltage mode 250 Ohm + 3.6...50 Ohm internal protective resistor in current mode |
| precision of internal conversion resistor | 0.1 % - 15 ppm/°C |
| type of filter | First order digital filtering |
| fast read cycle time | 1 ms + 1 ms x number of channels used |
| nominal read cycle time | 9 ms for 8 channels |
| measurement error | <= 0.1 % of full scale +/- 10 V 0...60 °C <= 0.1 % of full scale +/- 5 V 0...60 °C <= 0.1 % of full scale 0...10 V 0...60 °C <= 0.1 % of full scale 0...5 V 0...60 °C <= 0.1 % of full scale 1...5 V 0...60 °C <= 0.3 % of full scale +/- 20 mA 0...60 °C <= 0.3 % of full scale 0...20 mA 0...60 °C <= 0.3 % of full scale 4...20 mA 0...60 °C 0.15 % of full scale +/- 20 mA 25 °C 0.15 % of full scale 0...20 mA 25 °C 0.15 % of full scale 4...20 mA 25 °C 0.075 % of full scale +/- 10 V 25 °C 0.075 % of full scale 0...10 V 25 °C 0.075 % of full scale 0...5 V 25 °C 0.075 % of full scale 1...5 V 25 °C 0.075 % of full scale +/- 5 V 25 °C |
| temperature drift | 30 ppm/°C +/- 10 V 30 ppm/°C +/- 5 V 30 ppm/°C 0...10 V 30 ppm/°C 0...5 V 30 ppm/°C 1...5 V 50 ppm/°C +/- 20 mA 50 ppm/°C 0...20 mA 50 ppm/°C 4...20 mA |
| minimum crosstalk attenuation | 80 dB |
| common mode rejection | 80 dB |
| digital value format | - 32768 to + 32767 in maximum user scale +/- 10000 by default |
| isolation voltage | 300 V DC between channels 1400 V DC between channels and ground 1400 V DC between channels and bus |
| measurement resolution | 0.36 mV +/- 10 V 0.36 mV 0...10 V 0.36 mV 0...5 V 0.36 mV 1...5 V 0.36 mV +/- 5 V 1.4 µA +/- 20 mA 1.4 µA 0...20 mA 1.4 µA 4...20 mA |
| maximum conversion value | +/- 11.4 V +/- 10 V +/- 11.4 V 0...10 V +/- 11.4 V 0...5 V +/- 11.4 V 1...5 V 0...30 mA +/- 20 mA 0...30 mA 0...20 mA 0...30 mA 4...20 mA 0...30 mA +/- 5 V |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
| status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Net weight | 0.165 kg |
| power consumption in W | 1.06 W 24 V DC typical 1.50 W 24 V DC maximum 0.32 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
Environment
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.5 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.5 cm |
| Package 1 Weight | 160.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.668 kg |
