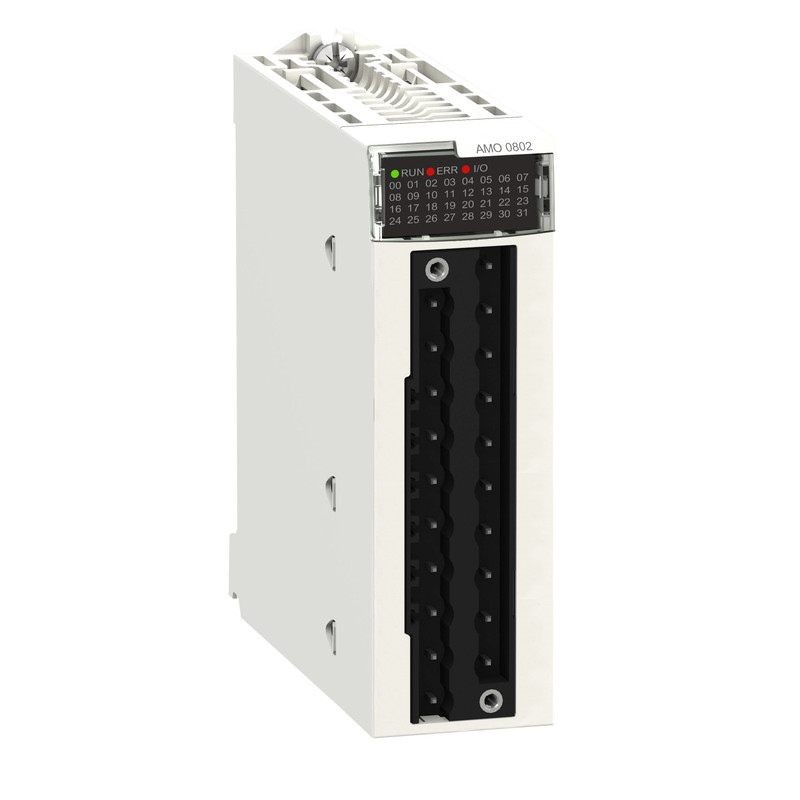

Schneider PLC Modicon M340_ analog output module X80 - 8 outputs_ [BMXAMO0802]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This analogue output module has 8 outputs with 16bit resolution. It is an output module which work with internal power supply via rack. This product is robust, high quality and based on the latest innovative technology. It is furnished with 20-way connector for electrical connection. It is an IP20 rated product. It weighs 0.15kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXAMO0802]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Analog output module |
| electrical connection | 20 ways 1 connector |
| Isolation between channels | Non isolated |
Complementary
| analogue input resolution | 16 bits |
|---|---|
| measurement error | <= 0.25 % of full scale 0...60 °C 0.1 % of full scale 25 °C |
| temperature drift | 45 ppm/°C 0...20 mA 45 ppm/°C 4...20 mA |
| Minimum crosstalk attenuation | 80 dB |
| Common mode rejection | 80 dB |
| isolation voltage | 1400 V DC between channels and ground 1400 V DC between channels and bus |
| detection type | Open circuit 4...20 mA Short circuit 0...20 mA |
| load impedance ohmic | <= 350 Ohm 0...20 mA <= 350 Ohm 4...20 mA |
| Output level | High level |
| Analogue output number | 8 |
| analogue output type | Current: 0...20 mA Current: 4...20 mA |
| analogue output resolution | 16 bits |
| Supply | Internal power supply via rack |
| Conversion time | <= 4 ms |
| maximum conversion value | 0...21 mA 0...20 mA 0...21 mA 4...20 mA |
| Fallback mode | Configurable Predefined |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
| status LED | 1 LED (green) RUN 1 LED per channel (green) channel diagnostic 1 LED (red) ERR 1 LED (red) I/O |
| Product weight | 0.15 kg |
| power consumption in W | 3.6 W 24 V DC typical 3.9 W 24 V DC maximum 0.35 W 3.3 V DC typical 0.48 W 3.3 V DC maximum |
Environment
| vibration resistance | 3 gn |
|---|---|
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Product certifications | CE RCM CSA EAC Merchant Navy UL |
| Standards | EN/IEC 61010-2-201 EN/IEC 61131-2 UL 61010-2-201 CSA C22.2 No 61010-2-201 |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.3 cm |
| Package 1 Width | 11.0 cm |
| Package 1 Length | 11.6 cm |
| Package 1 Weight | 174.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.89 kg |
