Schneider PLC Modicon M340_ power supply module X80 - 24 V DC - 16.8 W_ [BMXCPS2010]
Industrial Automation / PLC / Modular PLC

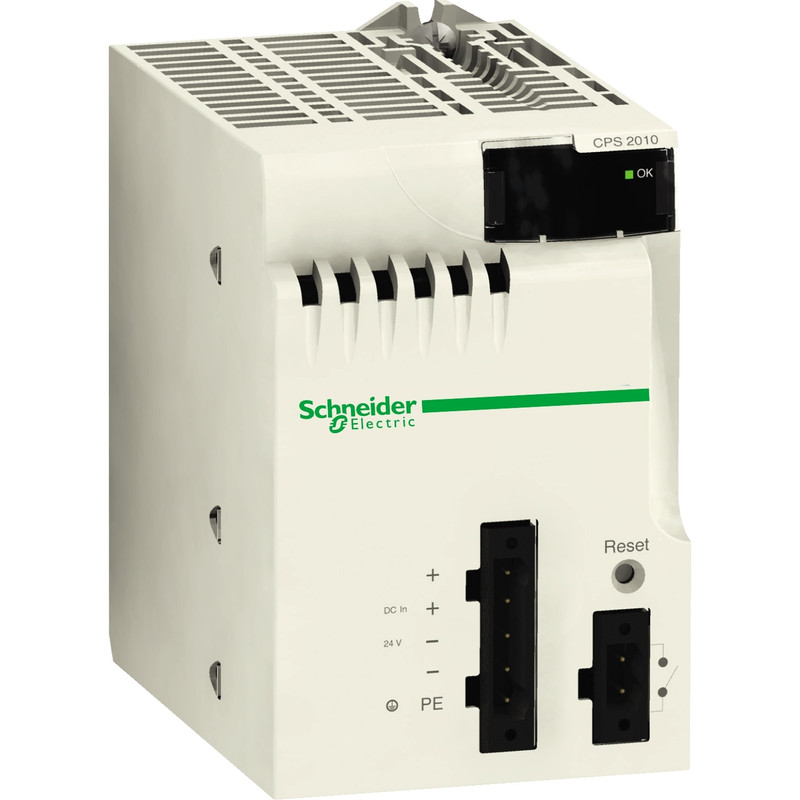

This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has an isolated voltage of 24V DC. It is a power supply module with a secondary power of 16.8W at 24V DC, a current at secondary voltage of 2.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth, 24V DC input sensor for electrical connection. It is an IP20 rated product. It weighs 0.29kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXCPS2010]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| primary voltage | 24 V isolated |
| supply circuit type | DC |
| secondary power | 16.8 W 24 V DC I/O module power supply and processor 8.3 W 3.3 V DC I/O module logic power supply |
Complementary
| primary voltage limit | 18...31.2 V |
|---|---|
| input current | 1 A 24 V |
| inrush current | 30 A 24 V |
| I²t on activation | 0.6 A².s 24 V |
| It on activation | 0.15 A.s 24 V |
| protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply |
| current at secondary voltage | 0.7 A 24 V DC I/O module power supply and processor 2.5 A 3.3 V DC I/O module logic power supply |
| maximum power dissipation in W | 8.5 W |
| status LED | 1 LED (green) rack voltage OK |
| control type | RESET push-button cold restart |
| electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| maximum cable distance between devices | 20 m power supply cable copper 1.5 mm² 30 m power supply cable copper 2.5 mm² |
| insulation resistance | >= 10 MOhm primary/ground >= 10 MOhm primary/secondary |
| Net weight | 0.29 kg |
Environment
| immunity to microbreaks | 1 ms |
|---|---|
| dielectric strength | 1500 V primary/ground 1500 V primary/secondary |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| IP degree of protection | IP20 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| protective treatment | TC |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.238 cm |
| Package 1 Width | 15.451 cm |
| Package 1 Length | 15.597 cm |
| Package 1 Weight | 420.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 6.31 kg |
| Package 3 Height | 75 cm |
