Schneider PLC Modicon M340_ power supply module X80 - 24..48 V DC - 31.2 W_ [BMXCPS3020]
Industrial Automation / PLC / Modular PLC

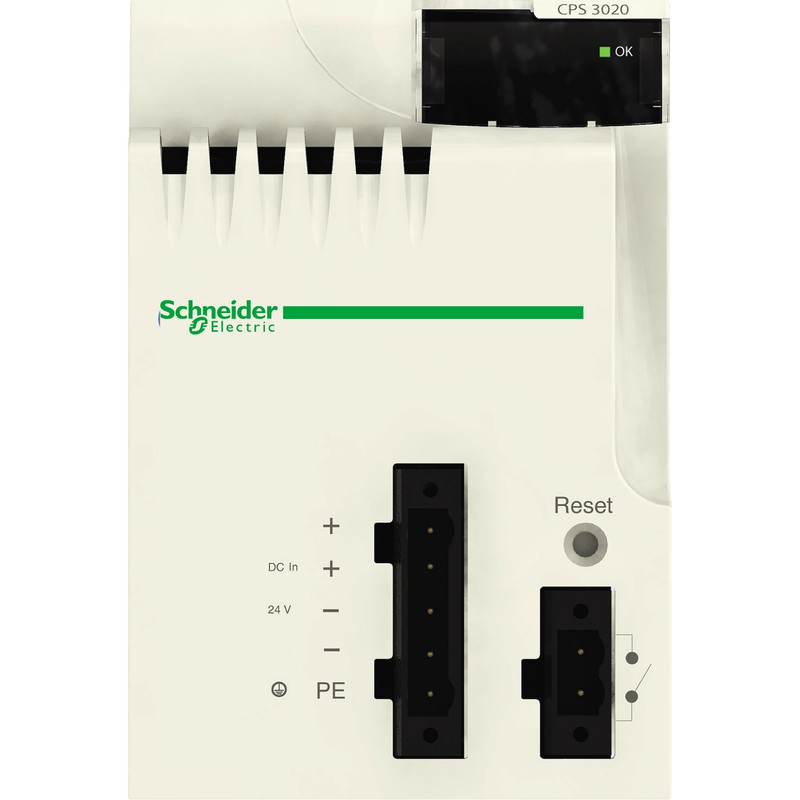

This power module is Partsof the Modicon X80 modules. This module provides the power supply for each Modicon X80 I/O rack and the modules installed. It is supplied with 24V to 48V DC isolated. It has a case which provides IP 20 protection of the electronics._ [BMXCPS3020]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| primary voltage | 24...48 V isolated |
| supply circuit type | DC |
| secondary power | 15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor |
Complementary
| primary voltage limit | 18...62.4 V |
|---|---|
| input current | 0.83 A 48 V 1.65 A 24 V |
| inrush current | 30 A 24 V 60 A 48 V |
| I²t on activation | 1 A².s 24 V 3 A².s 48 V |
| It on activation | 0.2 A.s 24 V 0.3 A.s 48 V |
| protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit, 24 V sensor power supply Overvoltage protection for secondary circuit, 24 V sensor power supply Short-circuit protection for secondary circuit, 24 V sensor power supply |
| current at secondary voltage | 1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply |
| maximum power dissipation in W | 8.5 W |
| status LED | 1 LED (green) rack voltage OK |
| control type | RESET push-button cold restart |
| electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth |
| maximum cable distance between devices | 10 m power supply cable copper 1.5 mm² 15 m power supply cable copper 2.5 mm² |
| insulation resistance | >= 10 MOhm primary/ground >= 10 MOhm primary/secondary |
| Net weight | 0.34 kg |
Environment
| immunity to microbreaks | 1 ms |
|---|---|
| dielectric strength | 1500 V primary/ground 1500 V primary/secondary |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| IP degree of protection | IP20 |
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| protective treatment | TC |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.183 cm |
| Package 1 Width | 15.437 cm |
| Package 1 Length | 15.654 cm |
| Package 1 Weight | 500.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30 cm |
| Package 2 Width | 40 cm |
| Package 2 Length | 60 cm |
| Package 2 Weight | 7.22 kg |
| Package 3 Height | 45 cm |
