Schneider PLC Modicon M340_ power supply module X80 - 100..240 V AC - 36 W_ [BMXCPS3500]
Industrial Automation / PLC / Modular PLC

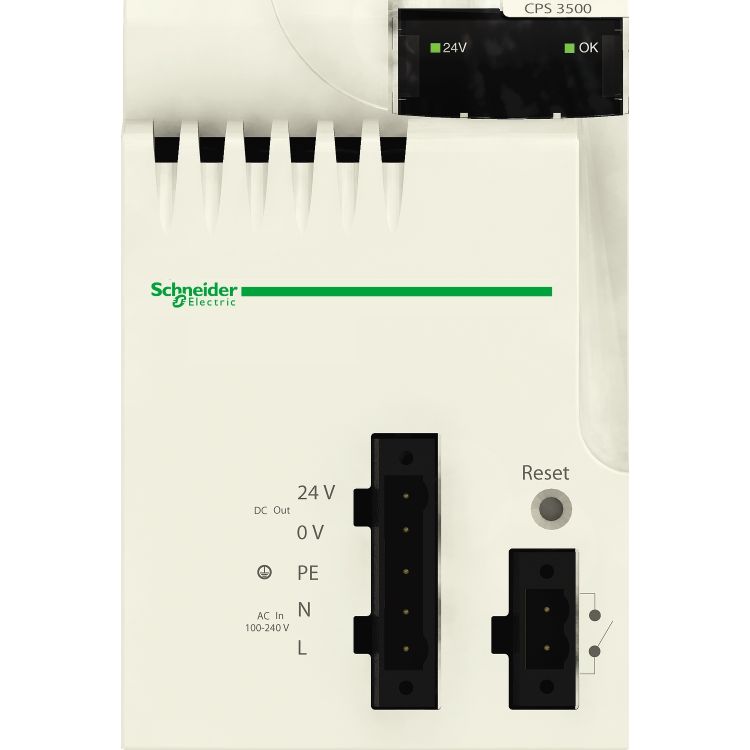

This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 31.2W at 24V DC, a current at secondary voltage of 4.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. It is an IP20 rated product. It weighs 0.36kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXCPS3500]
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Power supply module |
| backplane compatibility | Not compatible with BMEXBP..02 |
| Primary voltage | 100...240 V |
| Supply circuit type | AC |
| secondary power | 15 W 3.3 V DC I/O module logic power supply 31.2 W 24 V DC I/O module power supply and processor 21.6 W 24 V DC sensor power supply |
Complementary
| Primary voltage limit | 85...264 V |
|---|---|
| Network frequency | 50/60 Hz |
| Network frequency limits | 47…63 Hz |
| Apparent power | 0.07 kVA |
| input current | 0.52 A 240 V 1.04 A 115 V |
| inrush current | 30 A 120 V 60 A 240 V |
| I²t on activation | 1 A².s 120 V 3 A².s 240 V |
| It on activation | 0.05 A.s 120 V 0.07 A.s 240 V |
| protection type | Internal fuse not accessible for primary circuit Overload protection for secondary circuit Overvoltage protection for secondary circuit Short-circuit protection for secondary circuit |
| current at secondary voltage | 0.9 A 24 V DC sensor power supply 1.3 A 24 V DC I/O module power supply and processor 4.5 A 3.3 V DC I/O module logic power supply |
| Maximum power dissipation in W | 8.5 W |
| status LED | 1 LED (green) rack voltage OK 1 LED (green) sensor voltage |
| Control type | RESET push-button cold restart |
| electrical connection | 1 connector 2 pin(s)alarm relay 1 connector 5 pin(s)line supply, protective earth, 24 V DC input sensor |
| insulation resistance | >= 100 MOhm primary/ground >= 100 MOhm primary/secondary |
| Product weight | 0.36 kg |
Environment
| Immunity to microbreaks | 1 ms |
|---|---|
| dielectric strength | 1500 V primary/secondary I/O module logic power supply 1500 V primary/secondary I/O module power supply and processor 2300 V primary/secondary sensor power supply 1500 V primary/ground 500 V 24 V sensor output/ground |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| IP degree of protection | IP20 |
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| Protective treatment | TC |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 13.263 cm |
| Package 1 Width | 15.407 cm |
| Package 1 Length | 15.59 cm |
| Package 1 Weight | 489.8 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 7.0 kg |
