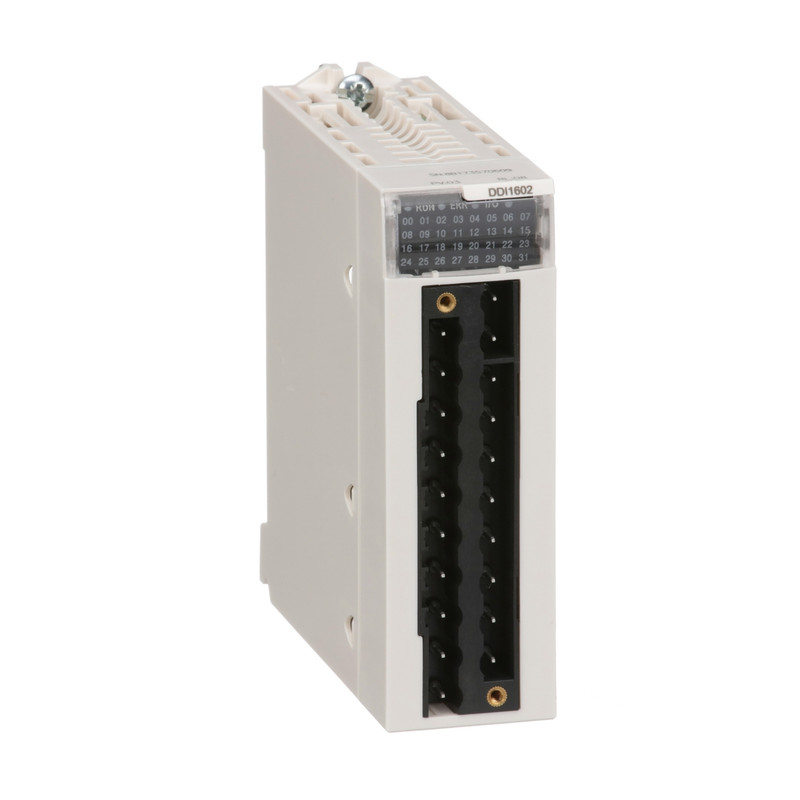

Schneider PLC Modicon M340_ discrete input module X80 - 16 inputs - 24 V DC positive_ [BMXDDI1602]
Industrial Automation / PLC / Modular PLC
This discrete input module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 input channels it is supplied with 24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 775163 hours of MTBF. This discrete module has a weight of 0.115kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 type 3 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Discrete input module |
| discrete input number | 16 |
| discrete input type | Isolated |
| input type | Current sink (logic positive) |
| discrete input voltage | 24 V DC, discrete input logic: positive |
| discrete input current | 3.5 mA |
Complementary
| input compatibility | With 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2 With 2-wire/3-wire proximity sensors conforming to IEC 61131-2 type 3 |
|---|---|
| Sensor power supply | 19...30 V |
| current state 1 guaranteed | >= 2 mA |
| current state 0 guaranteed | <= 1.5 mA |
| input impedance | 6800 Ohm |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 2.5 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| paralleling of inputs | Yes |
| typical current consumption | 76 mA at 3.3 V DC |
| MTBF reliability | 738749 H |
| protection type | 1 external fuse per group of channel0.5 A fast blow reverse polarity protection |
| voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Net weight | 0.115 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| environmental characteristic | Fungal spore resistant class 3B2 |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.488 cm |
| Package 1 Width | 11.188 cm |
| Package 1 Length | 11.741 cm |
| Package 1 Weight | 151.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.931 kg |
