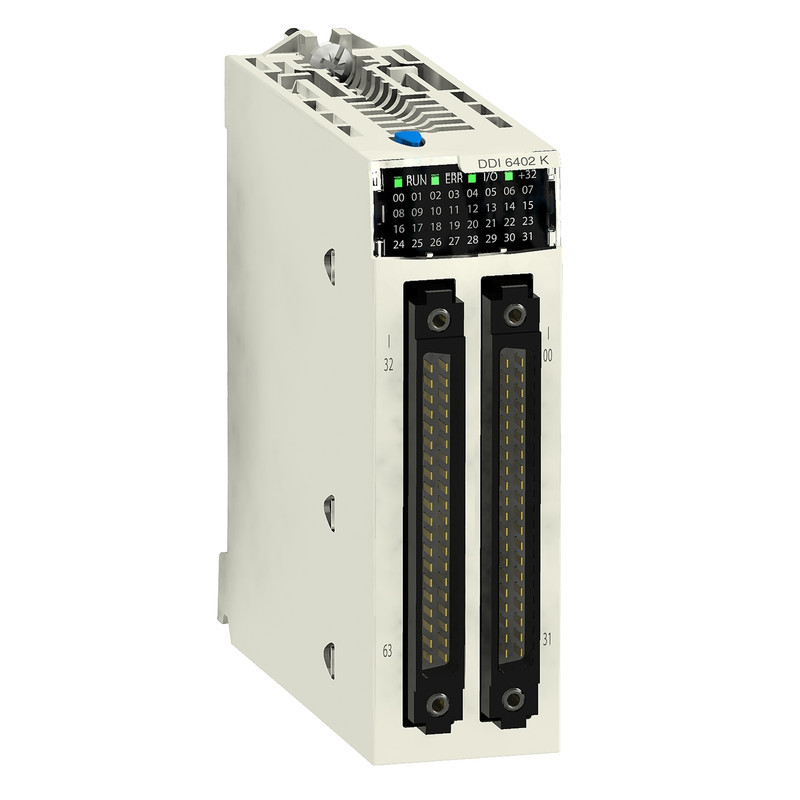

Schneider PLC Modicon M340_ discrete input module X80 - 64 inputs - 24 V DC positive_ [BMXDDI6402K]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 64 inputs with sink (positive) logic. It is an input module with an input voltage of 24V DC, a current consumption of 200mA at 3.3V DC and a power dissipation of 4.3W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per group of channel 0.5A fast blow and without reverse polarity protection type. It offers 362681 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXDDI6402K]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Discrete input module |
| discrete input number | 64 |
| discrete input type | Isolated |
| input type | Current sink (logic positive) |
| discrete input voltage | 24 V DC, discrete input logic: positive |
| discrete input current | 0.6 mA |
Complementary
| Sensor power supply | 19...30 V |
|---|---|
| input impedance | 40000 Ohm |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 4.3 W |
| DC typical response time | 4 ms |
| DC maximum response time | 7 ms |
| paralleling of inputs | No |
| typical current consumption | 160 mA at 3.3 V DC |
| MTBF reliability | 342216 H |
| protection type | 1 external fuse per group of channel0.5 A fast blow without reverse polarity protection |
| voltage detection threshold | < 14 V DC sensor fault > 18 V DC sensor OK |
| status LED | 1 LED (green) +32 channels indicator 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Net weight | 0.145 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, primary/secondary 500 V DC 1 minute, between group of channels |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.481 cm |
| Package 1 Width | 11.199 cm |
| Package 1 Length | 11.666 cm |
| Package 1 Weight | 190.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.481 kg |
