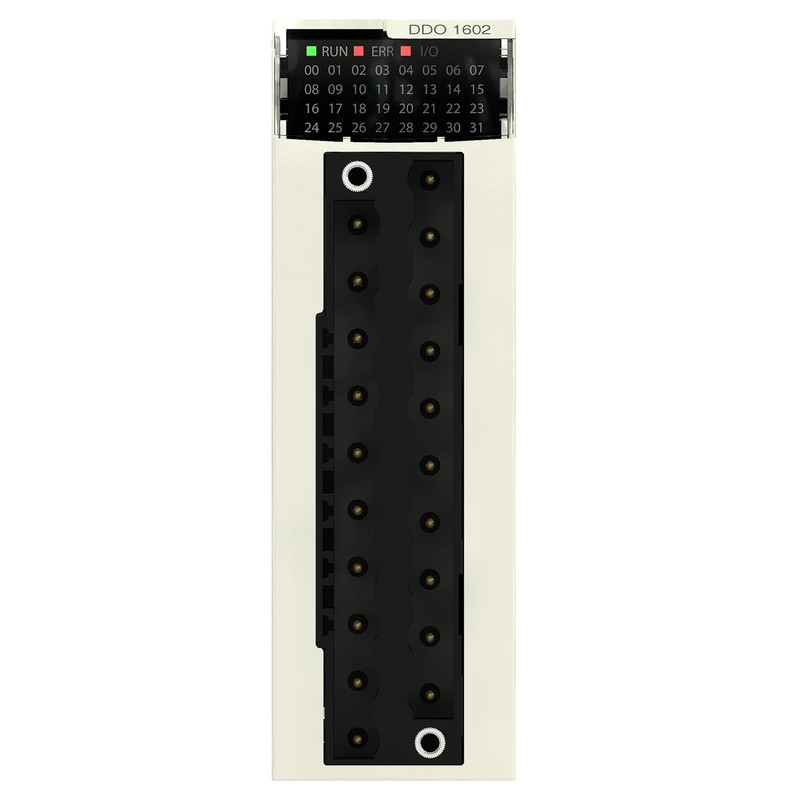

Schneider PLC Modicon M340_ discrete output module X80 - 16 outputs - solid state - 24 V DC positive_ [BMXDDO1602]
Industrial Automation / PLC / Modular PLC
This discrete transistor output module is part of the Modicon X80 range, an offer of common input/output and communication modules, power supplies and racks for Modicon M340 and Modicon M580. This product is composed of 16 output channels and it is supplied with 24V DC (positive). This product complies with "TC" treatment requirements (treatment for all climates) and can operate in temperatures ranging from 0°C to +60°C/32°F to 140°F. Modicon X80 modules provide a single environment for the deployment of I/O modules in automation architectures by reducing spare parts inventory, maintenance and training costs. This product is IP20 rated and offers 409213 hours of MTBF. This discrete module has a weight of 0.120kg and dimensions of 32x100x86mm. This product meets the needs of our customers from Smart Infrastructure, Water and Waste Water, Consumer Packaged Goods, Mining Minerals Metals, Data centers and Power generation. This product is certified by CE, UL, CSA, RCM, EAC, UKCA, Merchant Navy and meets EN 61000-6-5, EN 61850-3, EN 61131-2 standards. This module is compatible with Modicon M340, M580 (Local or Remote I/O) PLCs with a 20-way caged, screw clamp, or spring-type removable terminal block. The product must be installed on the rack and fixed with 2 screws.
Specifications
Main
| Range of product | Modicon X80 |
|---|---|
| Product or component type | Discrete output module |
| discrete output number | 16 conforming to EN/IEC 61131-2 |
| Discrete output type | Solid state |
| Discrete output logic | Positive |
| discrete output voltage | 24 V 19...30 V DC |
| Discrete output current | 0.5 A |
Complementary
| current per channel | 0.625 A |
|---|---|
| maximum current per module | 10 A |
| maximum leakage current | 0.5 mA at state 0 |
| maximum voltage drop | <1.2 V at state 1 |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 4 W |
| response time on output | 1.2 ms |
| Paralleling of outputs | Yes : 2 maximum |
| typical current consumption | 79 mA at 3.3 V DC |
| MTBF reliability | 392285 H |
| protection type | External fuse reverse polarity protection short-circuit protection overload protection overvoltage protection |
| Output overload protection | With electronic circuit breaker 1.5 In < Id < 2 In With current limiter |
| output overvoltage protection | With transil diode |
| Output short-circuit protection | With 2 A external fuse |
| Reverse polarity protection | Reverse mounted diode |
| voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| maximum tungsten load | 6 W |
| Switching frequency | 0.5/LI² Hz |
| Load impedance ohmic | > 48 Ohm |
| status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Product weight | 0.12 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| Directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.56 cm |
| Package 1 Width | 11.096 cm |
| Package 1 Length | 11.759 cm |
| Package 1 Weight | 160.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 3.04 kg |
