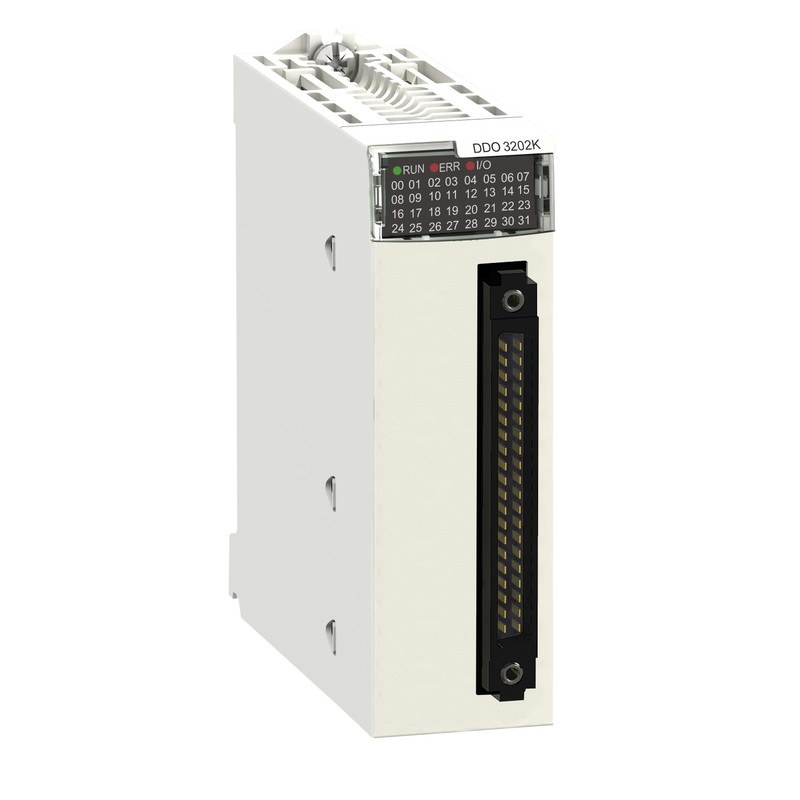

Schneider PLC Modicon M340_ discrete output module X80 - 32 outputs - solid state - 24 V DC positive_ [BMXDDO3202K]
Industrial Automation / PLC / Modular PLC
This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 32 outputs with sink (positive) logic. It is a discrete output module with an output voltage of 24V, 19V DC to 30V DC, a maximum power dissipation of 3.6W, a typical current consumption 125mA at 3.3V DC and 0.1A current per channel. This product is robust, high quality and based on the latest innovative technology. Protection types are reverse polarity protection, external short-circuit protection, overload protection and overvoltage protection. It offers 312254 hours of MTBF. It is an IP20 rated product. It weighs 0.11kg. It is suitable for medium to large process applications. This product is certified by EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXDDO3202K]
Specifications
Main
| range of product | Modicon X80 |
|---|---|
| product or component type | Discrete output module |
| discrete output number | 32 conforming to EN/IEC 61131-2 |
| discrete output type | Solid state |
| discrete output logic | Positive |
| discrete output voltage | 24 V 19...30 V DC |
| discrete output current | 0.1 A |
Complementary
| current per channel | 0.125 A |
|---|---|
| maximum current per module | 3.2 A |
| maximum leakage current | 0.1 mA at state 0 |
| maximum voltage drop | <1.5 V at state 1 |
| insulation resistance | > 10 MOhm 500 V DC |
| power dissipation in W | 3.6 W |
| response time on output | 1.2 ms |
| paralleling of outputs | Yes : 3 maximum |
| typical current consumption | 125 mA at 3.3 V DC |
| MTBF reliability | 312254 H |
| protection type | External fuse reverse polarity protection short-circuit protection overload protection overvoltage protection |
| output overload protection | With current limiter With electronic circuit breaker 0.125 A < Id < 0.185 A |
| output overvoltage protection | With transil diode |
| output short-circuit protection | With 2 A external fuse |
| reverse polarity protection | Reverse mounted diode |
| voltage detection threshold | < 14 V DC preactuator fault > 18 V DC preactuator at state 0 |
| maximum tungsten load | 1.2 W |
| switching frequency | 0.5/LI² Hz |
| maximum overload time | 15 ms |
| load impedance ohmic | >= 220 Ohm |
| status LED | 1 LED (green) module operating (RUN) 1 LED per channel (green) channel diagnostic 1 LED (red) module error (ERR) 1 LED (red) module I/O |
| Net weight | 0.11 kg |
Environment
| IP degree of protection | IP20 |
|---|---|
| directives | 2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
| dielectric strength | 1500 V AC at 50/60 Hz 1 minute, output/ground 1500 V AC at 50/60 Hz 1 minute, output/internal logic 500 V DC 1 minute, between group of channels |
| vibration resistance | 3 gn |
| shock resistance | 30 gn |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | 0…60 °C |
| relative humidity | 5…95 % at 55 °C without condensation |
| operating altitude | 0...2000 m 2000...5000 m with derating factor |
Packing Units
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.582 cm |
| Package 1 Width | 11.161 cm |
| Package 1 Length | 11.758 cm |
| Package 1 Weight | 151.0 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 15 |
| Package 2 Height | 15.0 cm |
| Package 2 Width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Package 2 Weight | 2.911 kg |
