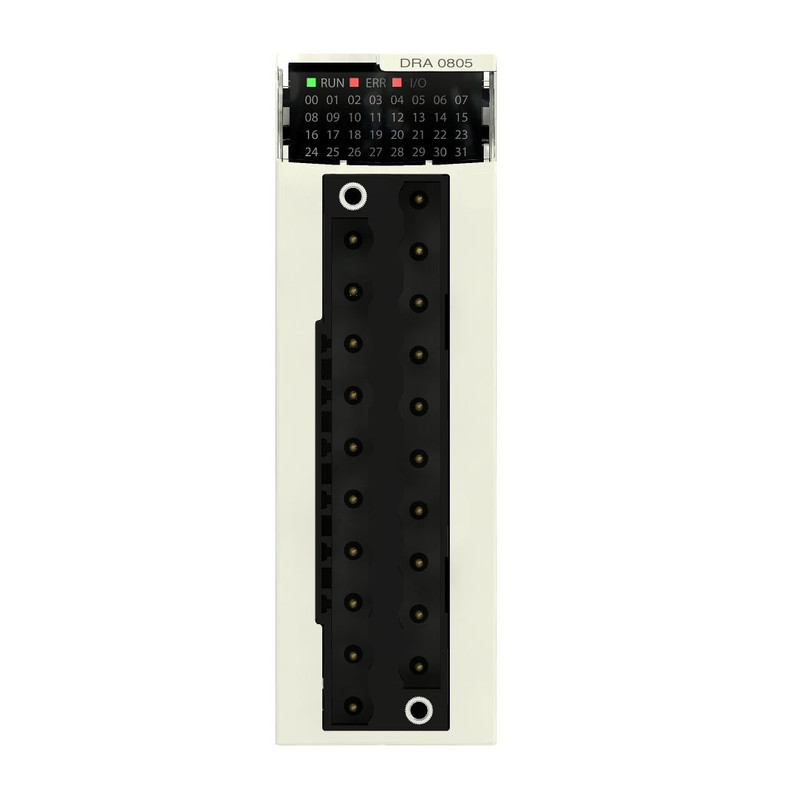

Schneider PLC Modicon M340_ discrete output module X80 - 8 O relay - 12..24 V DC or 24..240 V AC - severe_ [BMXDRA0805H]

This product is Partsof the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete output module has 8 relay outputs. It is a discrete output module with an output voltage of 24V to 240V, 19V AC to 264V AC, 12V to 24V, 10V DC to 34V DC, a typical current consumption of 79mA at 3.3V DC. This ruggedized product can be used in more severe environments, and operate in an extended temperature range, from -25°C to +70°C. It offers electrical durability of 100000, 1 million, 10 million, 150000, 1500000, 2 million, 300000, 3 million, 500000, 5 million, 700000 cycles and 2119902 hours of MTBF. It is an IP20 rated product. It weighs 0.145kg. It is suitable for severe environments, medium to large process applications. This product is certified by IEC-Ex, ATEX, EAC, Merchant Navy, CSA, RCM, CE and UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same Spare Partsin stock, and unique training for different Programmable Automation Controllers (PAC)._ [BMXDRA0805H]
